Version 11.3 and Earlier

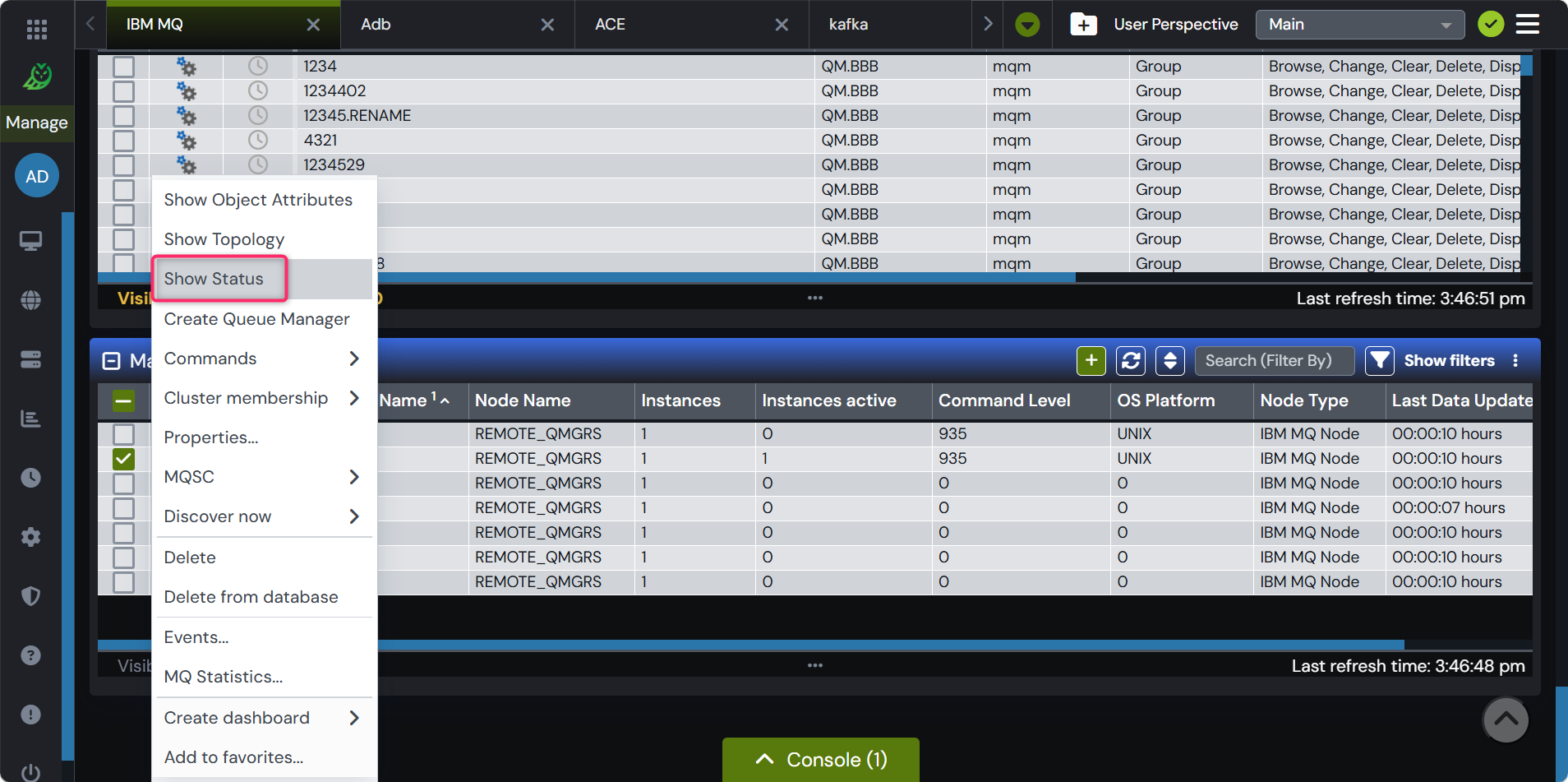

To view Queue Manager status:
- Select an active queue manager.
- From the Selected menu, click Show Status.

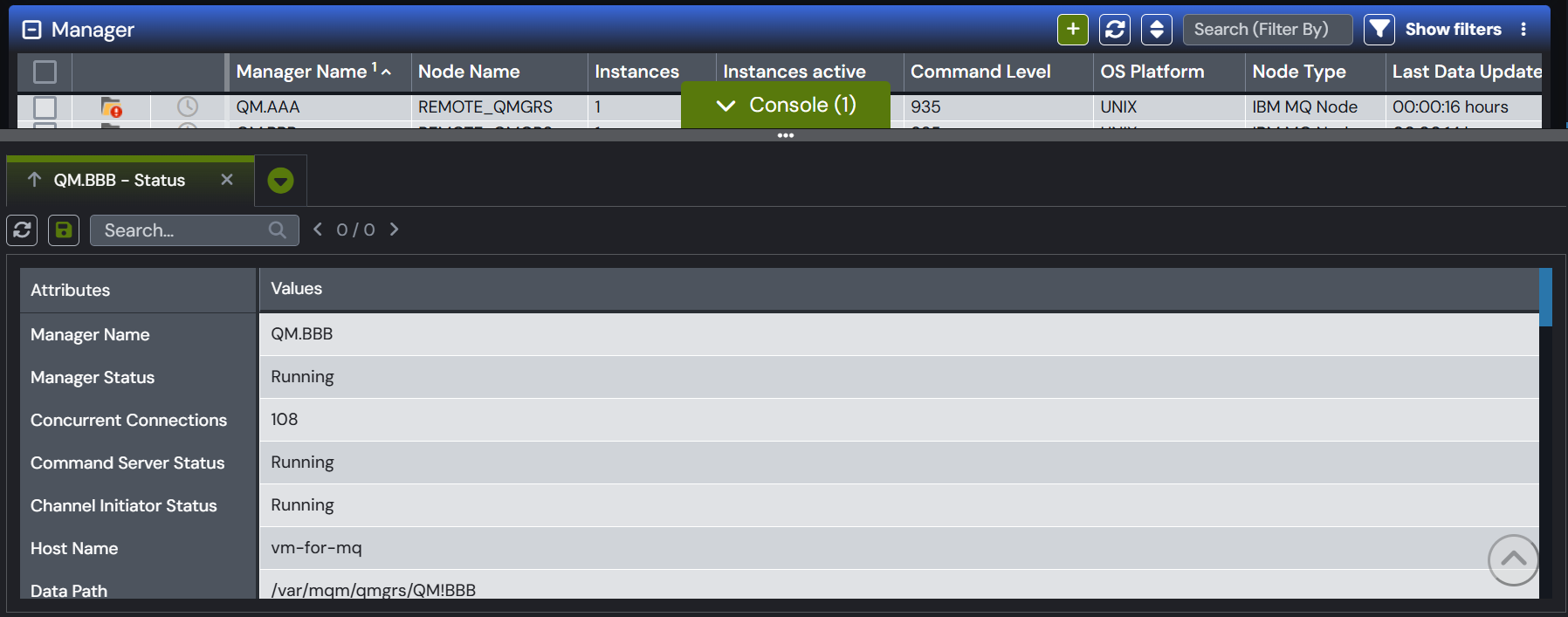

- The Console panel displays all available Queue Manager status attributes and their current values.
The following attributes are available:
Attributes Available in 11.3.1 and Later
- Manager Name
- Manager Status
- Concurrent Connections
- Command Server Status
- Channel Initiator Status
- Current Log Extent
- Restart Log Extent
- Media Recovery Log Extent
- LDAP Connection Status
- Log Path
- Standby
- Manager Start Date
- Manager Start Time
- Installation Name
- Installation Description
- Installation Path
Additional Attributes Introduced in 11.3.2
- Host Name
- Data Path
- Uniform Cluster Name
- Auto Cluster Type
- Data FS Size (MB)
- Data FS In Use (MB)
- Log Start Date
- Log Start Time
- Log Start LSN
- Log Extent Size (MB)
- Log FS Size (MB)
- Log FS In Use (MB)
- Log Primary Files
- Log Secondary Files
- Log Type
- QMgr FS Encrypted
- QMgr FS Size (MB)
- QMgr FS In Use (MB)
- NHA Instance Name
- NHA Role
- NHA Replication Address
- NHA In Sync
- NHA Backlog
- NHA Active Connections
- NHA Group Initial Date
- NHA Group Initial Time
- NHA Group Initial LSN
Although these attributes are displayed in earlier versions, they return values only for queue managers running IBM MQ 9.3.2 and later.
