Some of the content described in this article is available in Navigator versions 10.4.2 and greater. See 10.4.2 Highlights for an overview of feature changes.
The View Error Log function can only be used with an agent that is running on the node. It cannot be used with a connection manager.
You can view and download LOG files, FDC files, or FFST Summary files (these are summaries of the FDC files).
To view queue manager error logs:

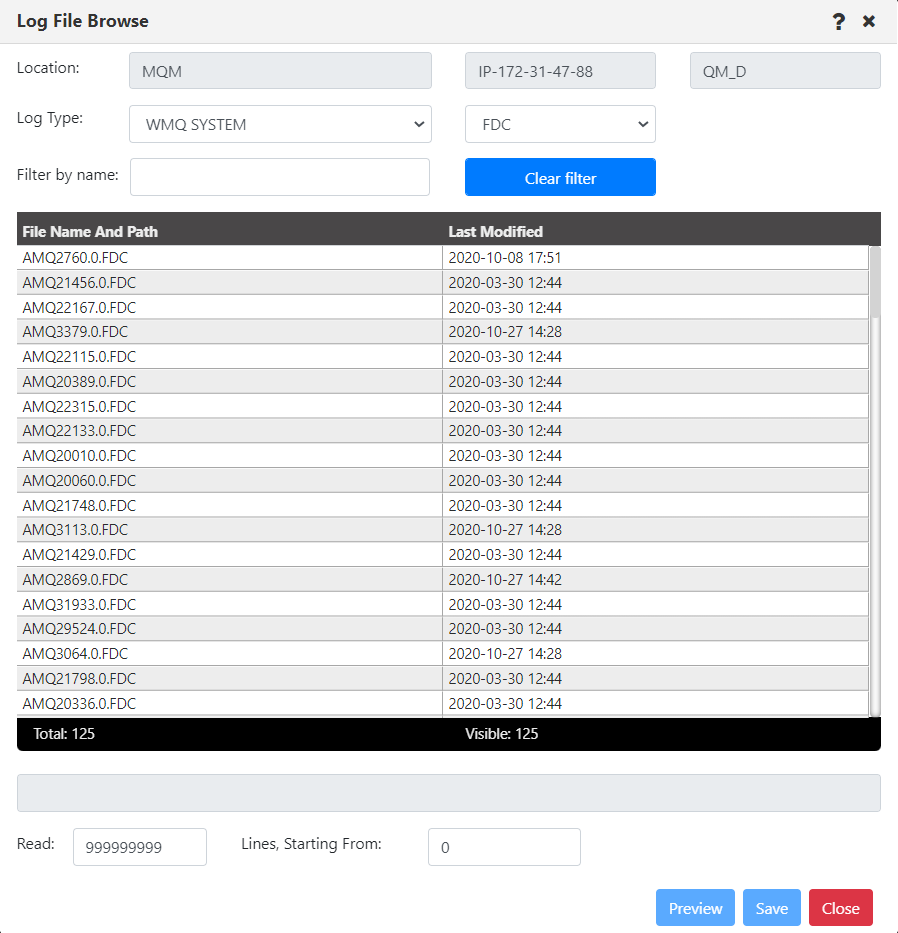

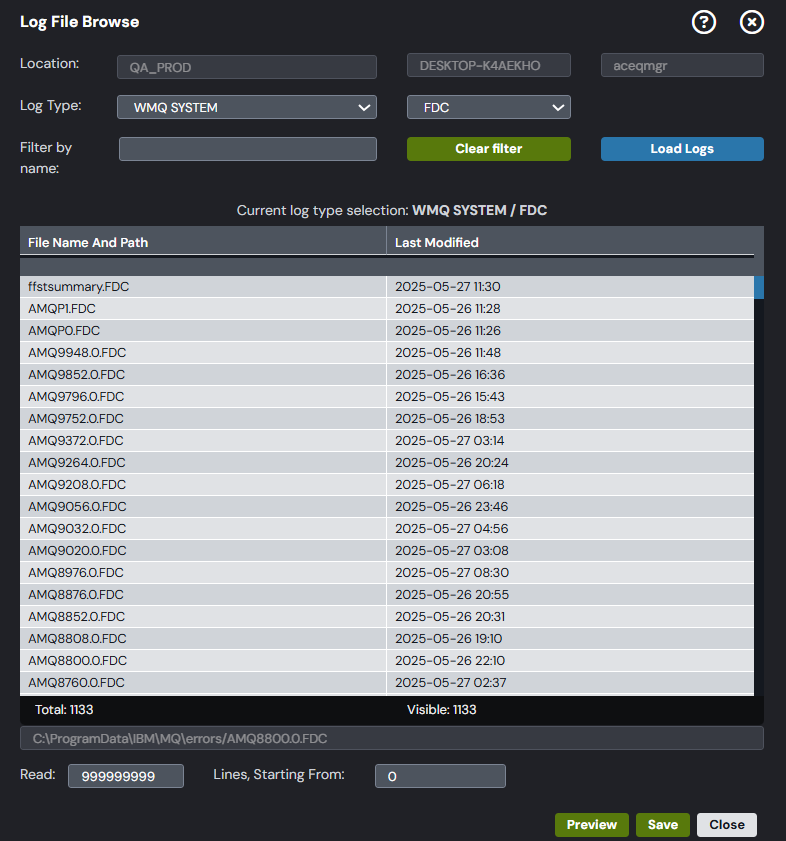

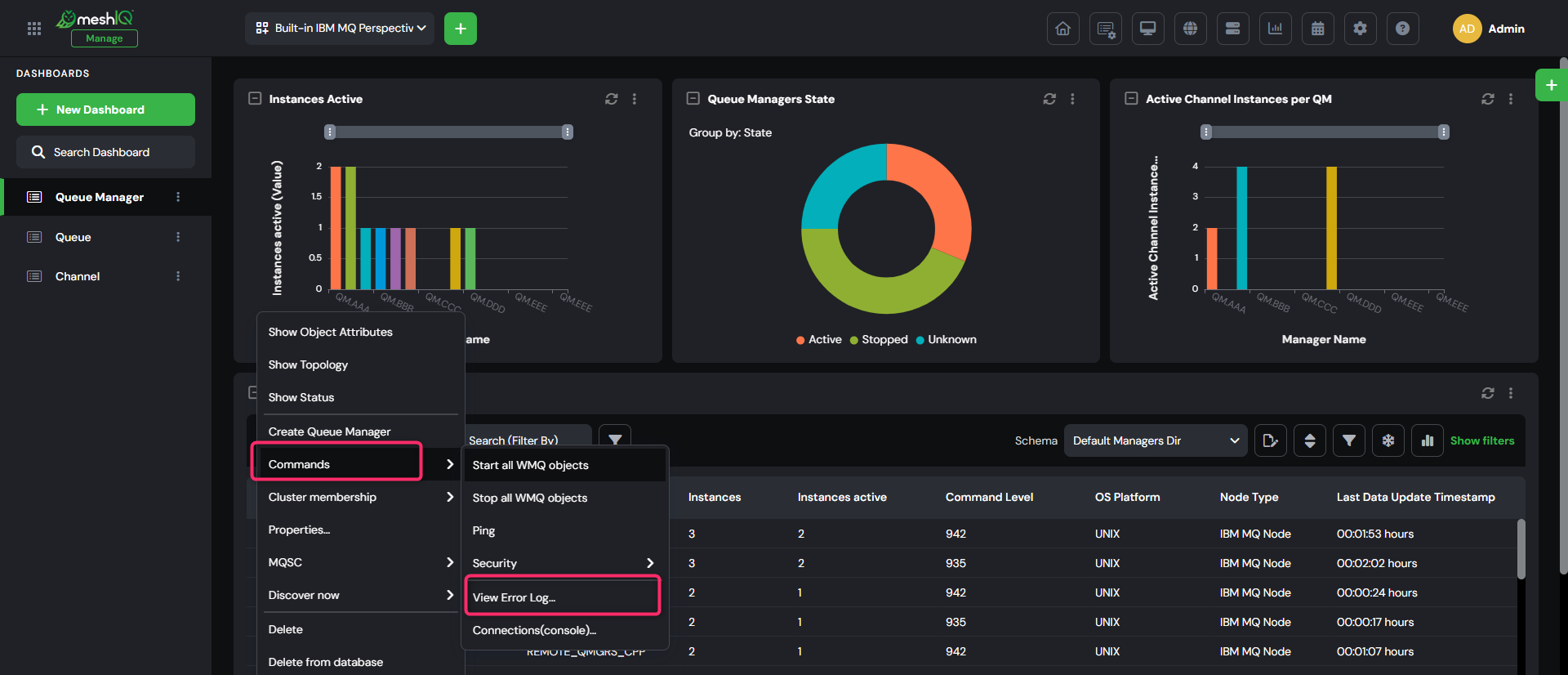

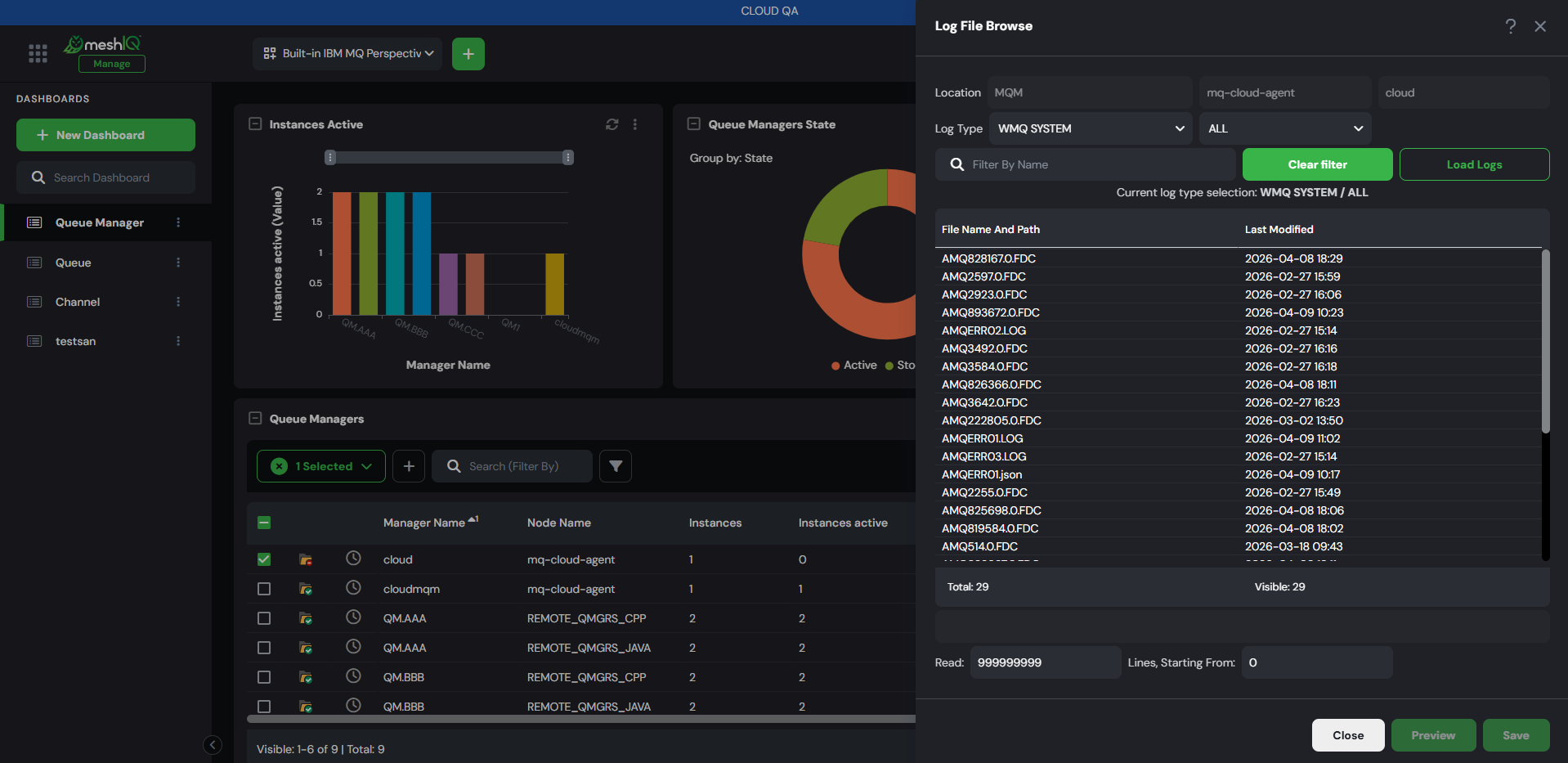

- Select an active queue manager and select Commands > View Error Log from the drop-down menu. The error logs open in the Log File Browse window. At the top of the Log File Browse window, the queue manager’s location is displayed (workgroup server, node, and queue manager name).
- Select a Log Type. The Log type that you select will determine the options that are available in the file filter. See the Log Type Filters table below. Only the INI filter includes INI files.
|
Filter |
Queue Manager |
WMQ System |
|
LOG |
LOG |
LOG |
|
FDC |
|
FDC, ffstsummary.FDC |
|
INI |
INI (of the queue manager, for example, qm.ini) |
INI (of MQ: mqs.ini from /var/mqm/mqs.ini) (Agent level 6.7.7 or higher is required.) |
|
All |
LOG* *Includes any error log files from the queue manager error directories below. Windows C:\Program Files (x86)\IBM\WebSphere MQ\Qmgrs\<qmgr_name>\errors\ Linux |
LOG*, FDC, ffstsummary.FDC *Includes any error log files from the system error directories below. Windows Linux |
- (Optional.) You can sort the table records by clicking on the column headers.
The location of the selected error log file is located at the bottom of the window within the grey field.
- Within the Read field, specify the number of lines of text to be displayed in the error log file.
- Enter a number in the Lines, Starting From field to specify the starting row to be exported; data will be exported starting from this line of the error log file.

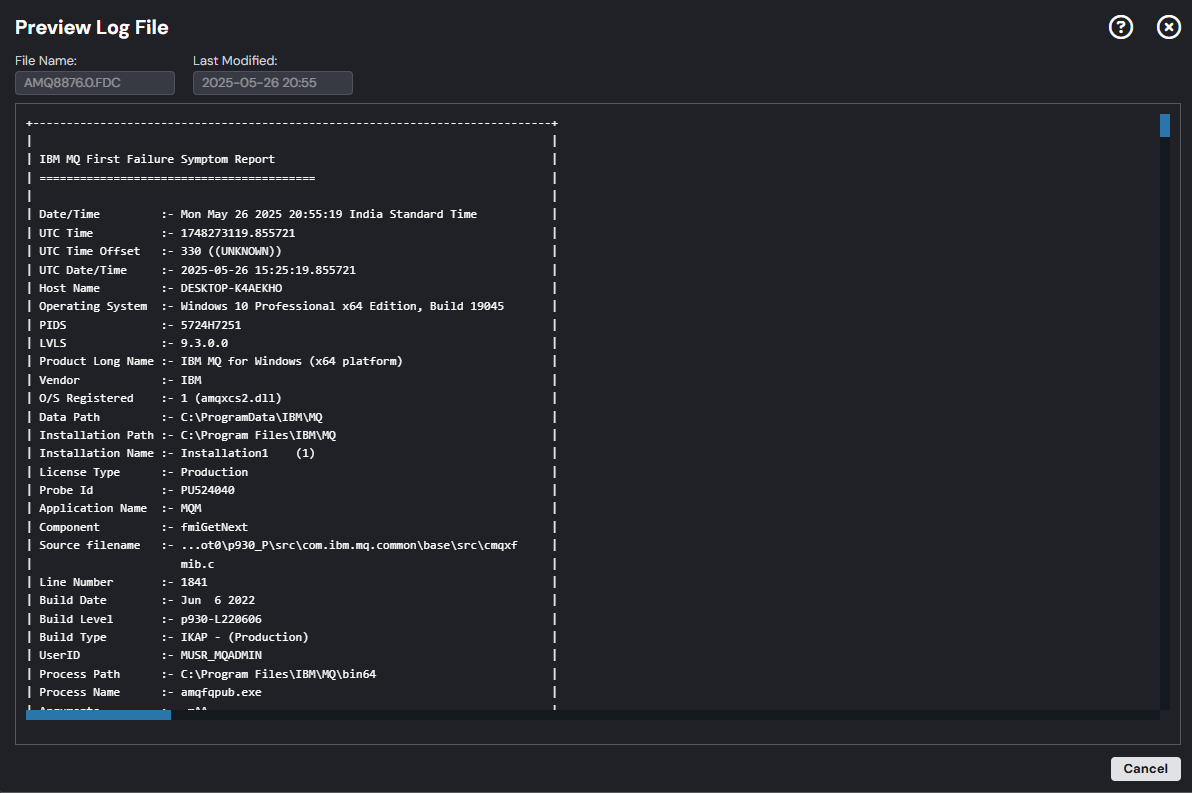

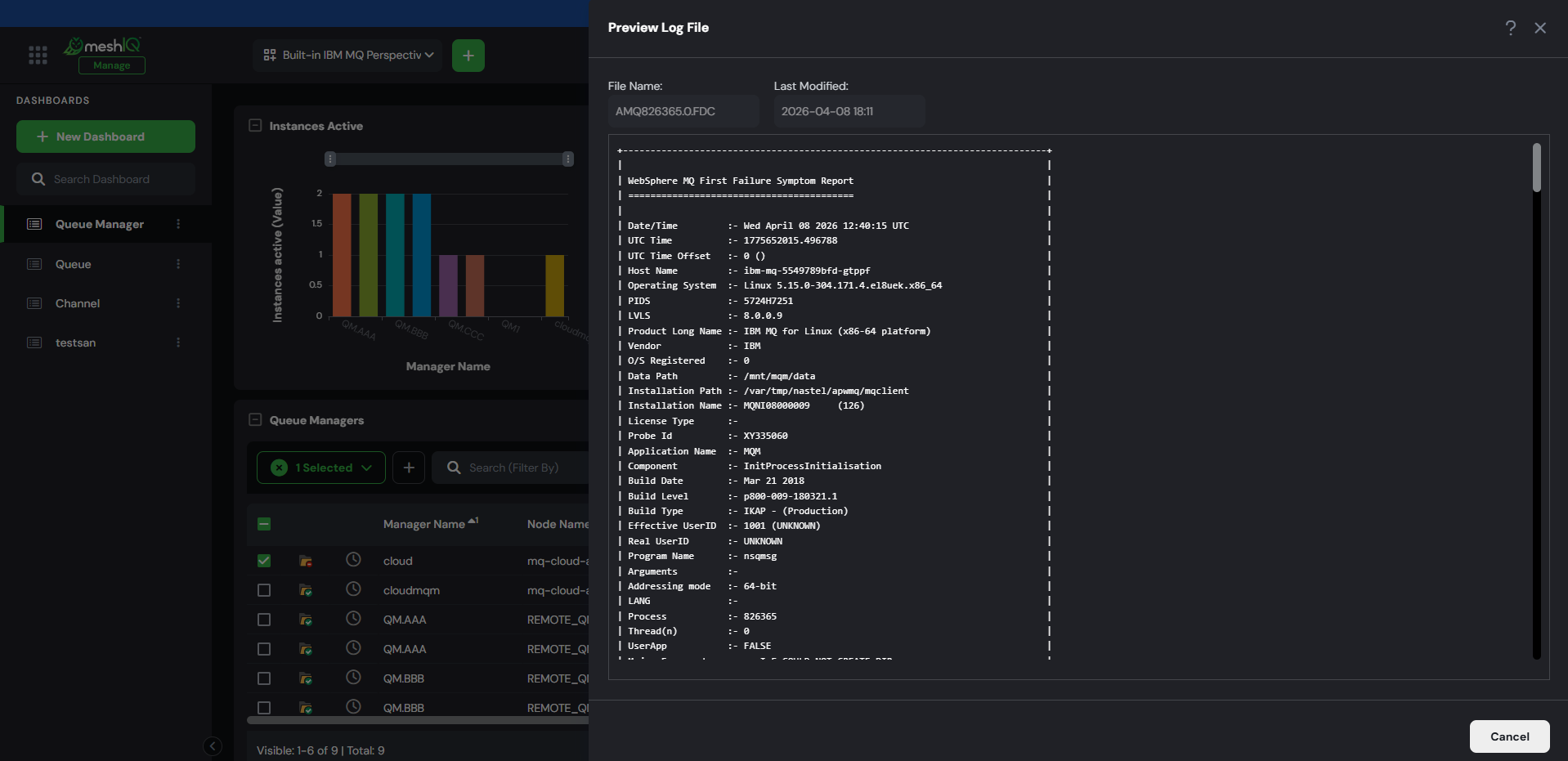

- (Optional.) You can preview the file before exporting by clicking the Preview button located at the bottom-right of the window. See FFST Summary file for an example of a preview.
- Click Save to download and open the file.

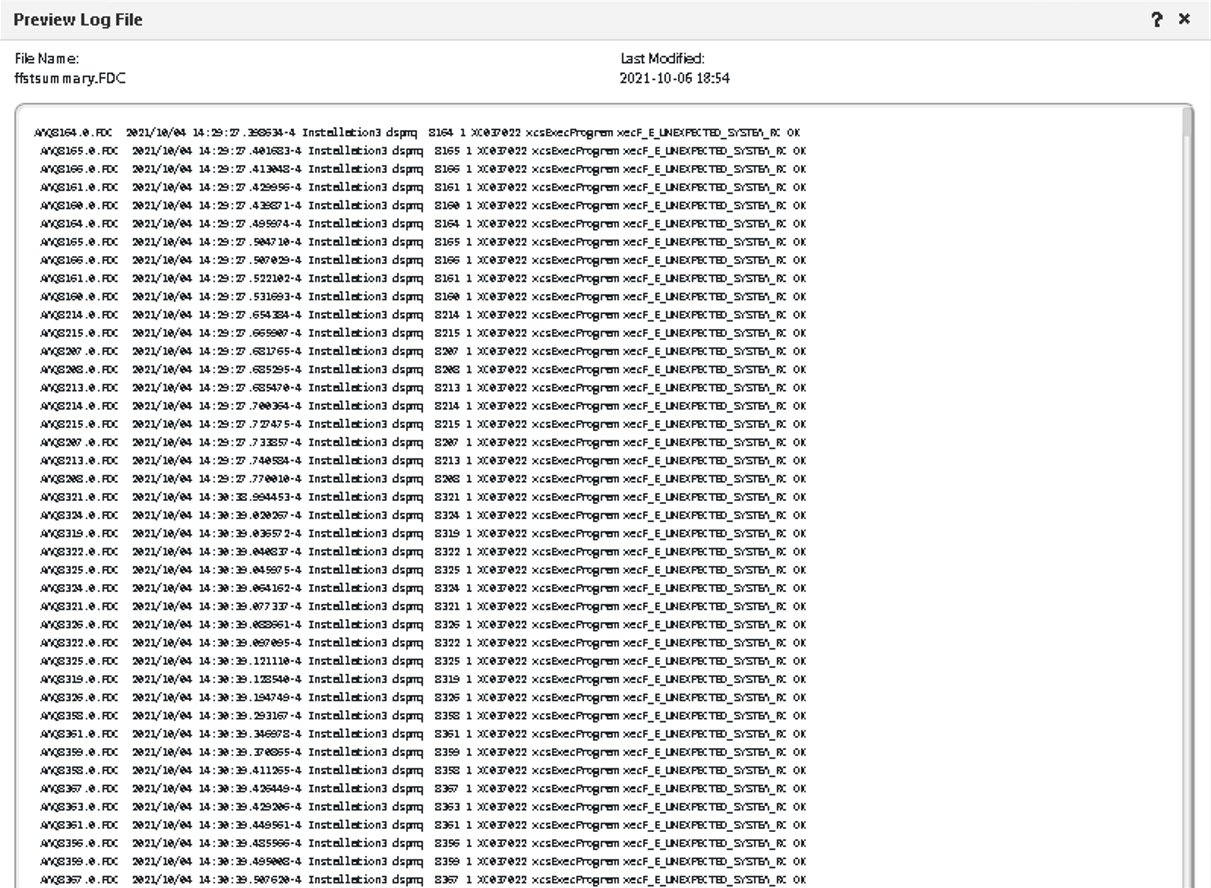

FFST Summary file
As indicated in the table below, if the ALL or FDC filters are selected, the FFST Summary file ffstsummary.FDC is included in the file listing. A sample display of this file is shown below.
