More than a dozen z/OS Reports are accessible from the queue manager viewlet.

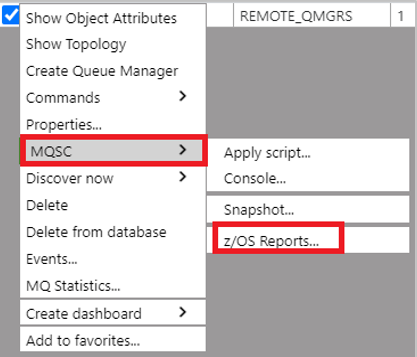

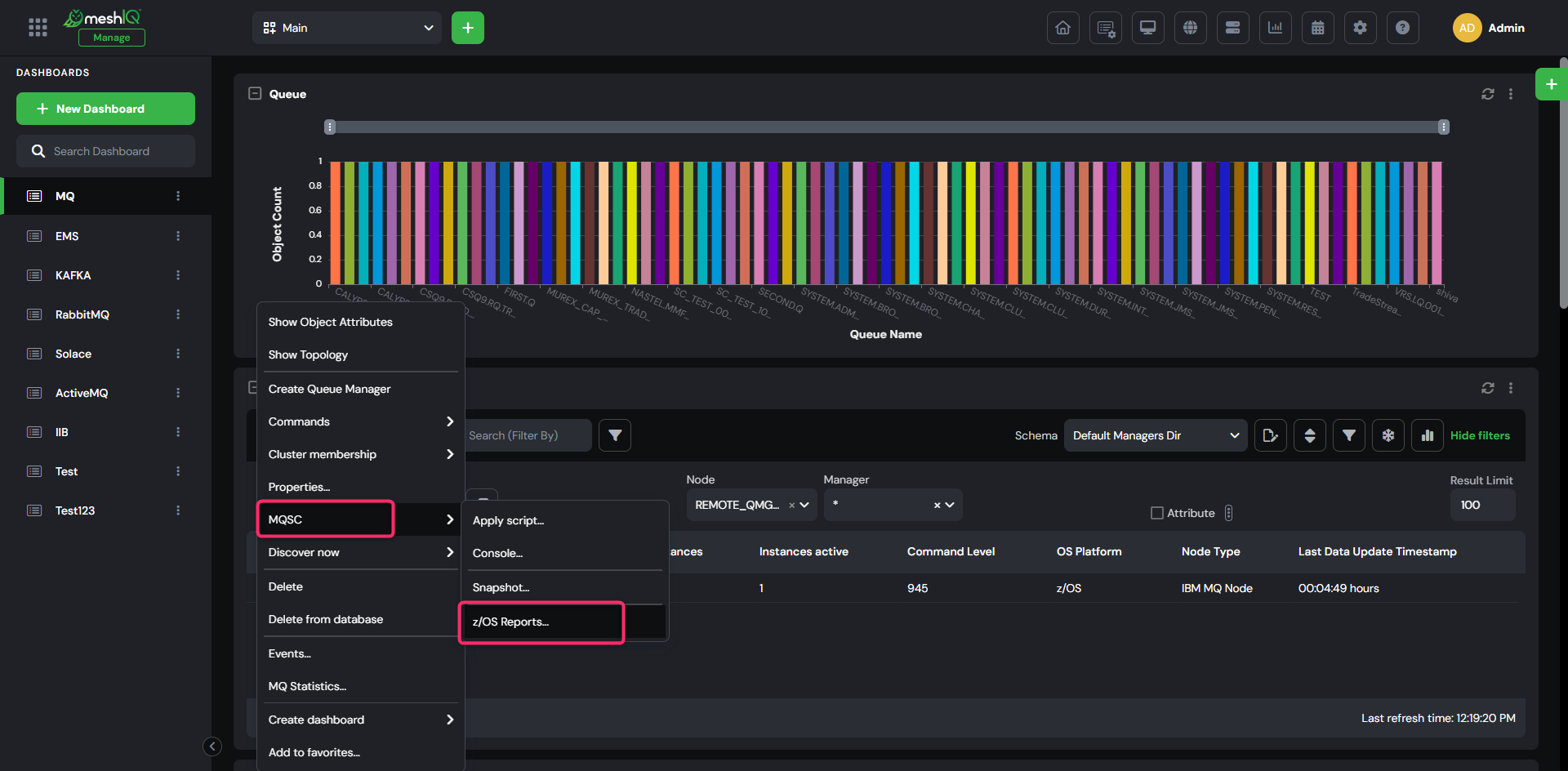

- Select MQSC > z/OS Reports... from a z/OS queue manager’s pop-up menu to open the report window.
- On the window that opens, there are tabs for each report type. Select the desired tab to run that report.

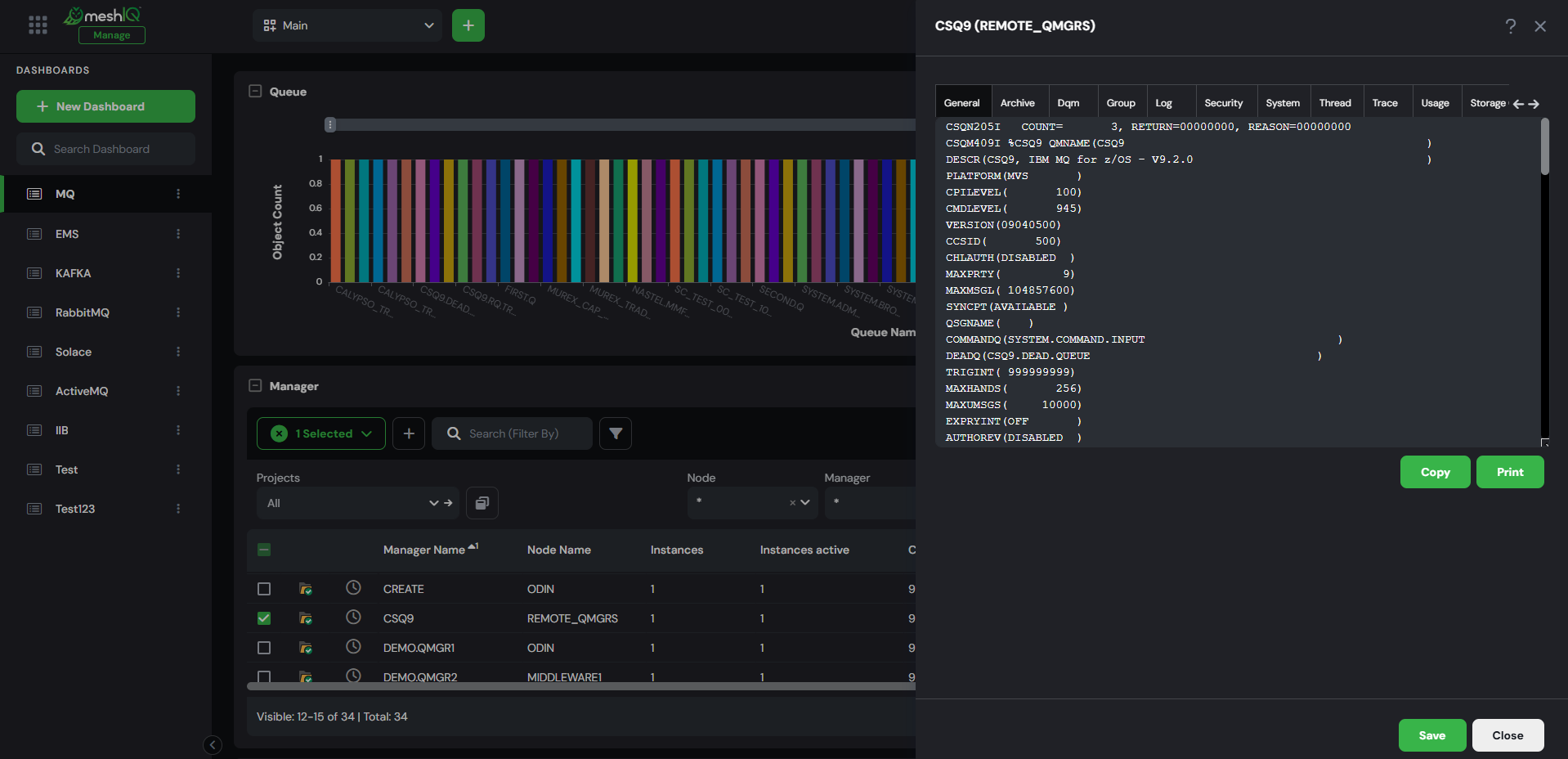

- Click the Display button to request and display a report. (This button is available on all tabs except for the General tab.)
- On each tab, you have the following additional options:
- You can copy the entire text block by clicking the Copy button.
- You can also print the report by clicking the Print button. The report will be printed with the queue manager’s name, report date and type.
The tabs listed below have additional functionality:
- Archive: Use the Set button to set archive data. It will open a separate window where you specify configurations.
- Dqm:
- Start/Stop Channel Initiator: Allows you to start initiators and specify jcp parameters. You can also stop initiators and specify when to restart the shared channel.
- Start/Stop Channel Listener: Start or stop listeners and specify the max number of archive log volumes and dedicated tape units, the IP address and port, and lu62 name (for starting only).
- Log: Clicking the Set button opens a new window where you can set the command scope and manager, default parameters, compression, deallocation time, max number of archive log volumes and dedicated tape units, and number of output buffers. Clicking the Archive button opens a new window where you can select the command scope and manager, mode, and time.
- Security: Clicking Set will opens a new window where you can specify properties. The Refresh and Reverify buttons allow you to select function properties to refresh or verify.
- System: Click the Set button to specify system settings.
- Thread: Select thread type and queue manager name for thread display.
- Trace: Specify start and stop trace options.
- Usage: Select usage type and pageSet ID for Display function.
- Storage Class: Select storage class and page set identifier for display function. You can select qsg disposition, command scope and manager by clicking the Set button.
- Coupling Facility: Select coupling facility name for display function.
- SMDS: Select queue manager and coupling facility names for display function.
