Some of the content described in this article is available in meshIQ Manage versions 12.1 and later.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier

Version 12.x and Later

A Dynamic Message Routing (DMR) link allows messages to be exchanged between multiple Message VPNs across event brokers.
Before messages can flow between connected brokers, the DMR link must be running and properly configured.
Starting DMR activates the routing links and enables message transfer between participating Message VPNs.

To start DMR:

1. In the Message VPNs widget, select the Message VPN where you want to start DMR.

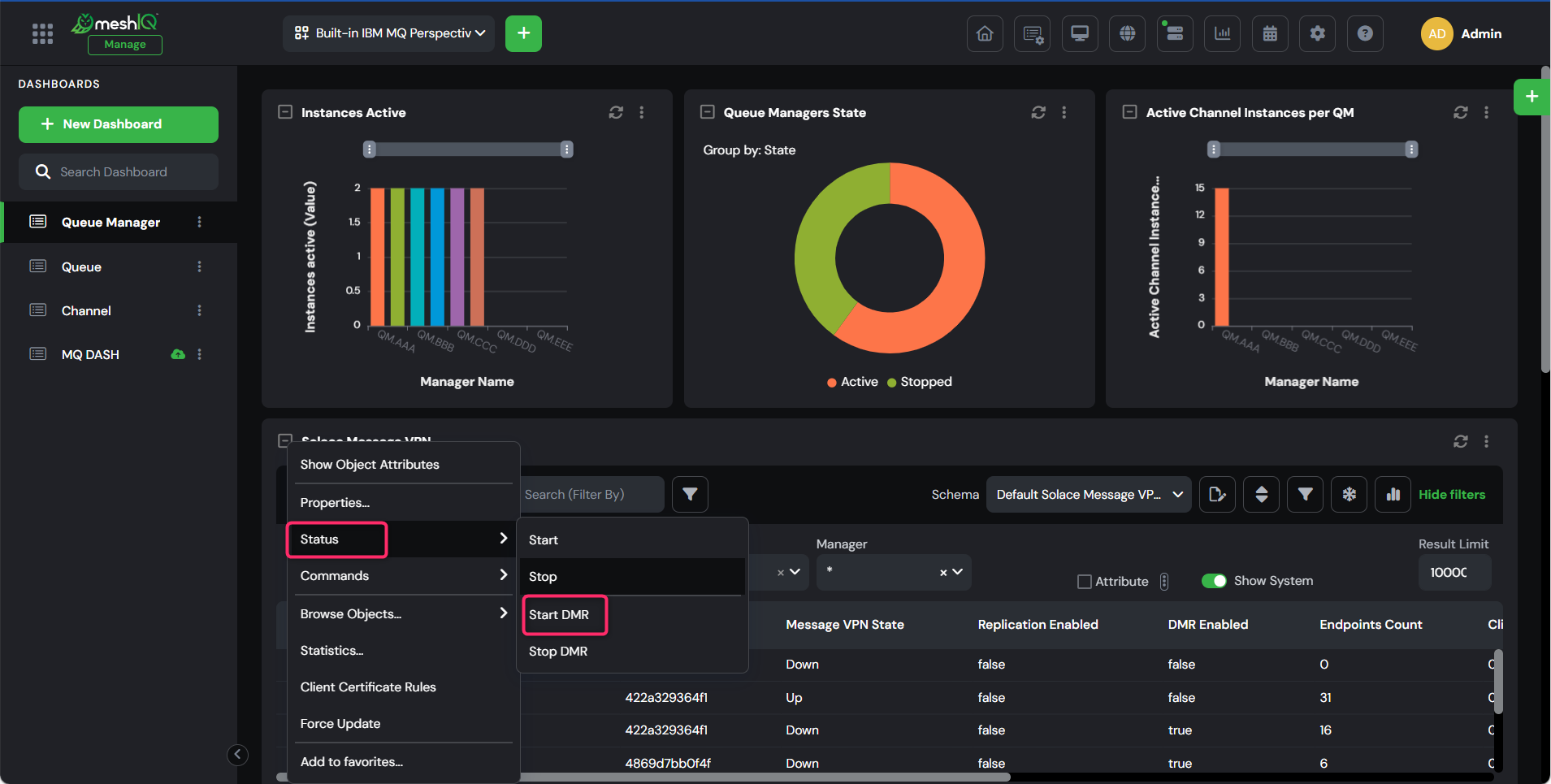

2. From the Selected menu, navigate to:
   Status > Start DMR.

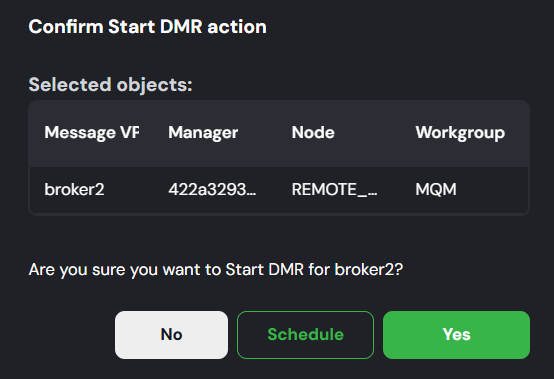

3. The Confirm Start DMR action dialog opens.



4. Click Yes to start DMR immediately or click Schedule to perform the action later.
   (See Scheduling Jobs for more information.)

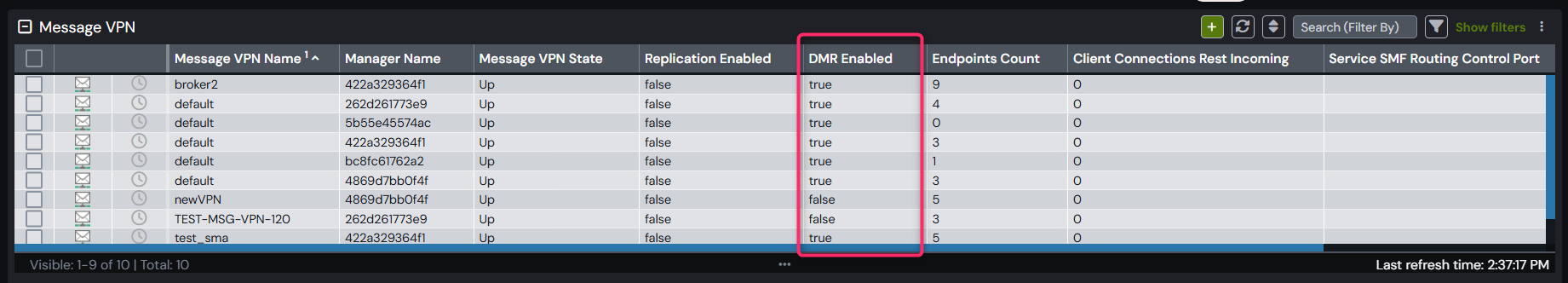

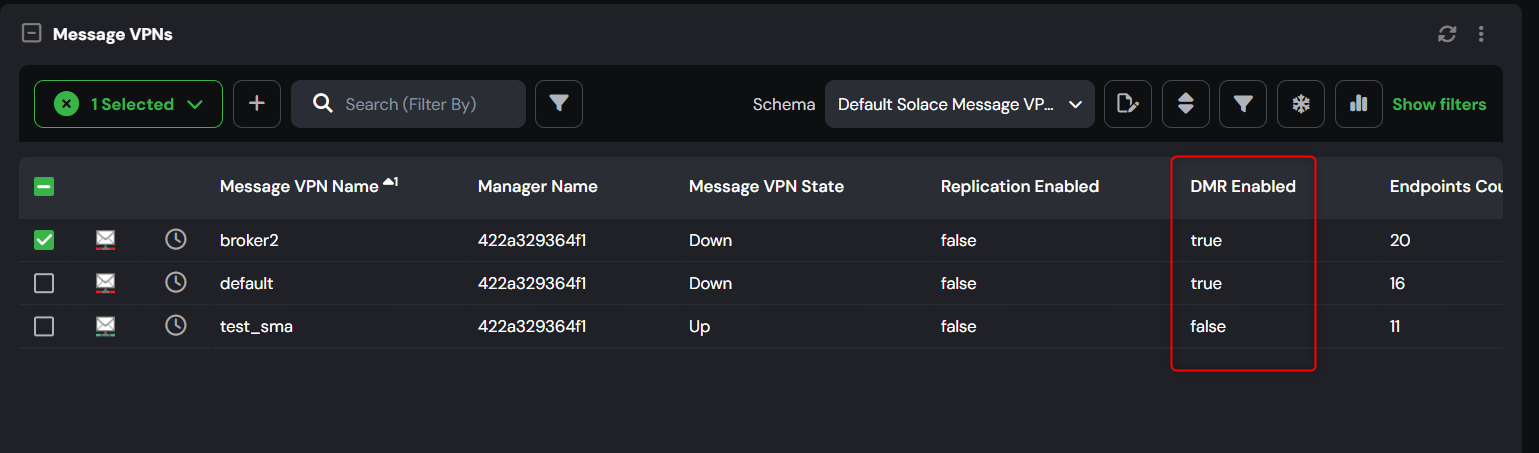

Once started, the DMR status changes to true, and the Message VPN begins exchanging messages with other connected VPNs through DMR links.

Version 11.3 and Earlier

A Dynamic Message Routing (DMR) link allows messages to be exchanged between multiple Message VPNs across event brokers.
Before messages can flow between connected brokers, the DMR link must be running and properly configured.
Starting DMR activates the routing links and enables message transfer between participating Message VPNs.

To start DMR:

1. In the Message VPNs viewlet, select the Message VPN where you want to start DMR.

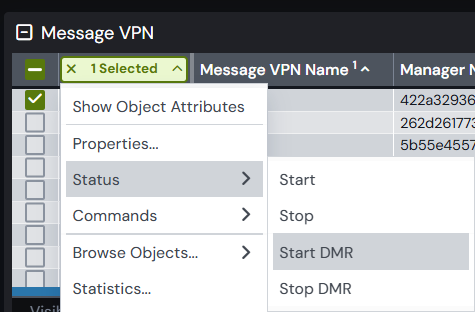

2. From the Selected menu, navigate to:
   Status > Start DMR.

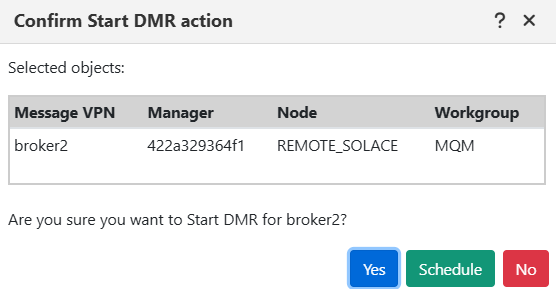

3. The Confirm Start DMR action dialog opens.



4. Click Yes to start DMR immediately or click Schedule to perform the action later.
   (See Scheduling Jobs for more information.)

Once started, the DMR status changes to true, and the Message VPN begins exchanging messages with other connected VPNs through DMR links.
