Summary panel
Summary panel – the upper portion of the screen is called the Summary panel. It contains summary viewlets which are used when counting the number of objects like events, activities, or snapshots and presenting the count in a summarized view.
Summery Panel in Version 11.1 and Earlier
Summery Panel in Version 11.2

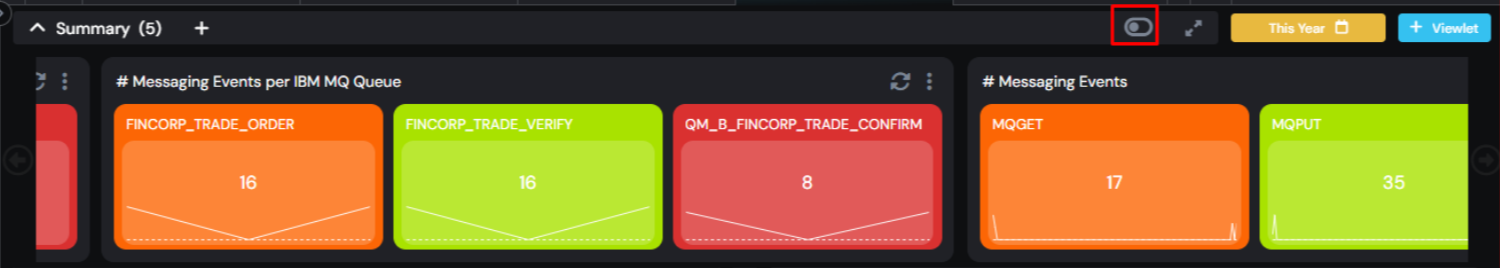

Summary viewlets can automatically scroll for easy viewing. To implement this feature, enable Auto-Play located at the top right of the Summary panel.
In Version 11.1 and Earlier
In version 11.2
Summary viewlets not displayed on the screen can easily be viewed by clicking on the left and right arrows at each end of the Summary panel.
In version 11.1 and Ealier
In version 11.2

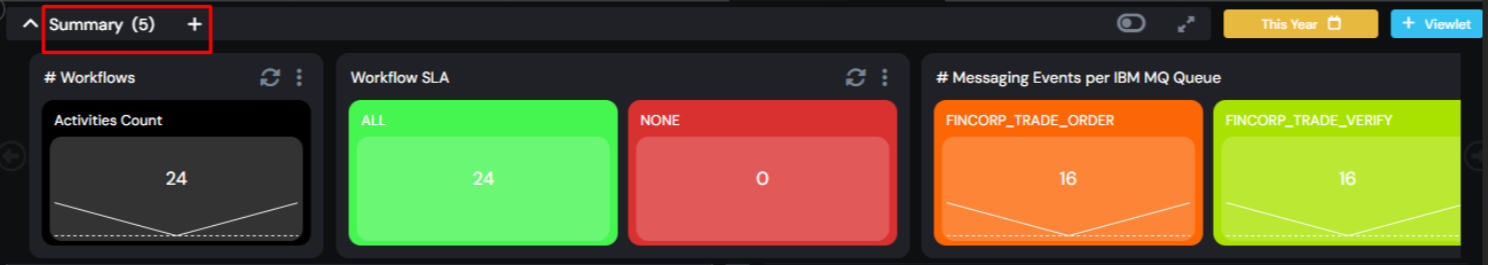

The Summary panel can be hidden by simply clicking the Summary tab to collapse the section. The system can be configured to automatically have the Summary panel hidden every time you log in. Please see Configure Dashboards, for more information.
Summery Tab in version 11.1 and Earlier
Summery Tab in version 11.2
Console panel
When users click on data records from any of the viewlets on a dashboard to view additional details, new viewlets will open in the Console panel allowing users to drill deeper into the data.

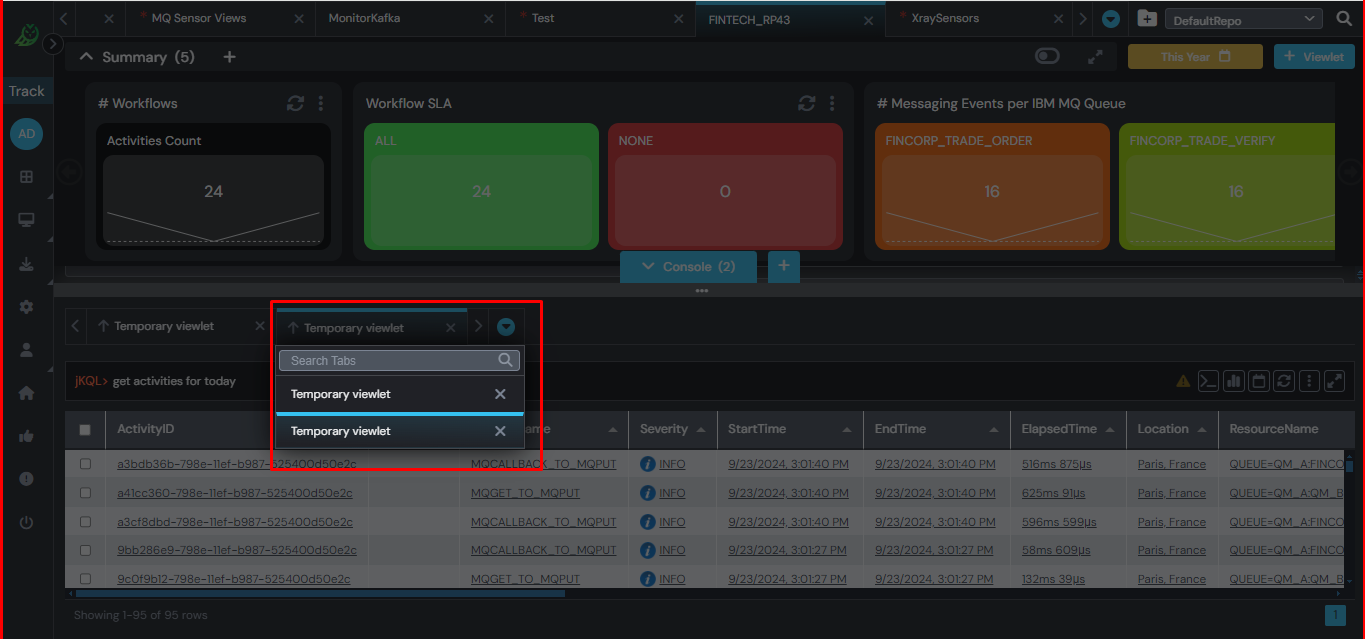

Within the Console panel, new temporary viewlets can be created.
Click the Console tab to display or hide this section. When no viewlets are in the Console, the section will collapse automatically. The viewlets in the Console panel are temporary – they will not be saved after switching repositories or logging out.
If any data is clicked within Console panel viewlets, the additional details will display in new tabs.
In version 11.1 and earlier
In version 11.2
