Some of the content described in this article is available in meshIQ Manage versions 12.1 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier

Version 12.x and Later

To create a Listener:

1. Select Create Listener from the Selected menu of a Listener widget, or click the Add Listener button.

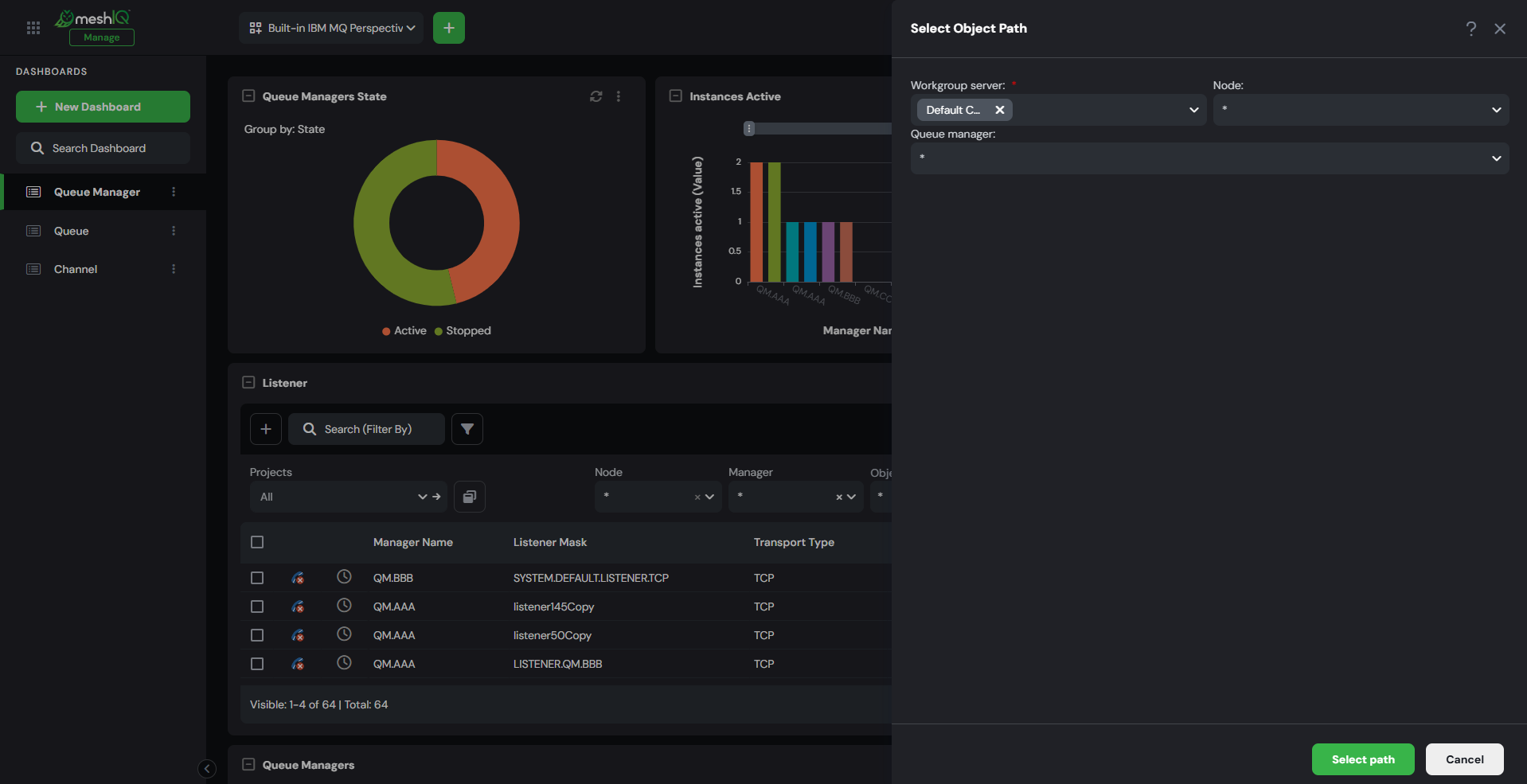

2. The Select object path dialog opens. Specify the Workgroup server, Node, and Queue manager for the new listener.

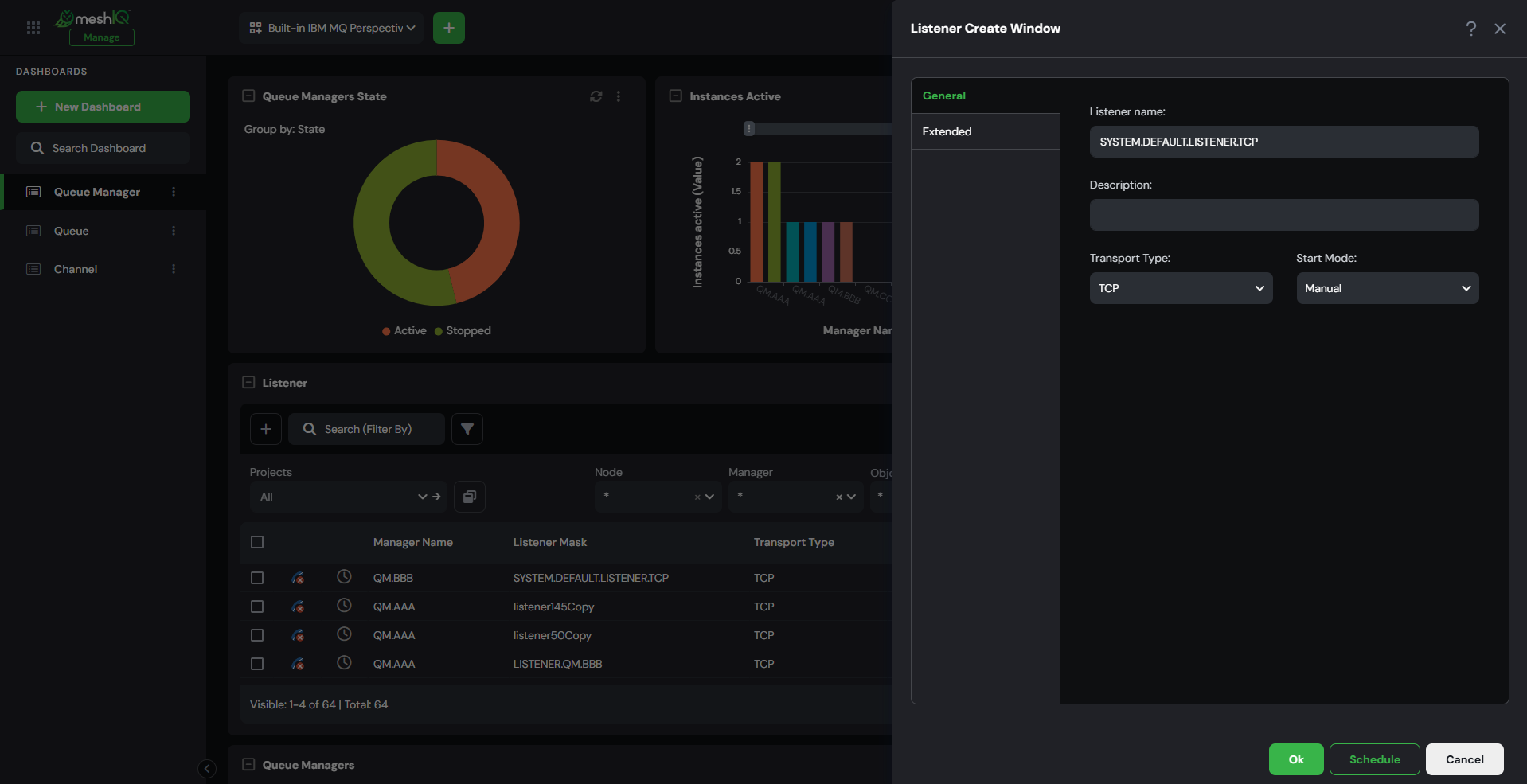

3. Click Select path. The Listener Create Window is displayed.

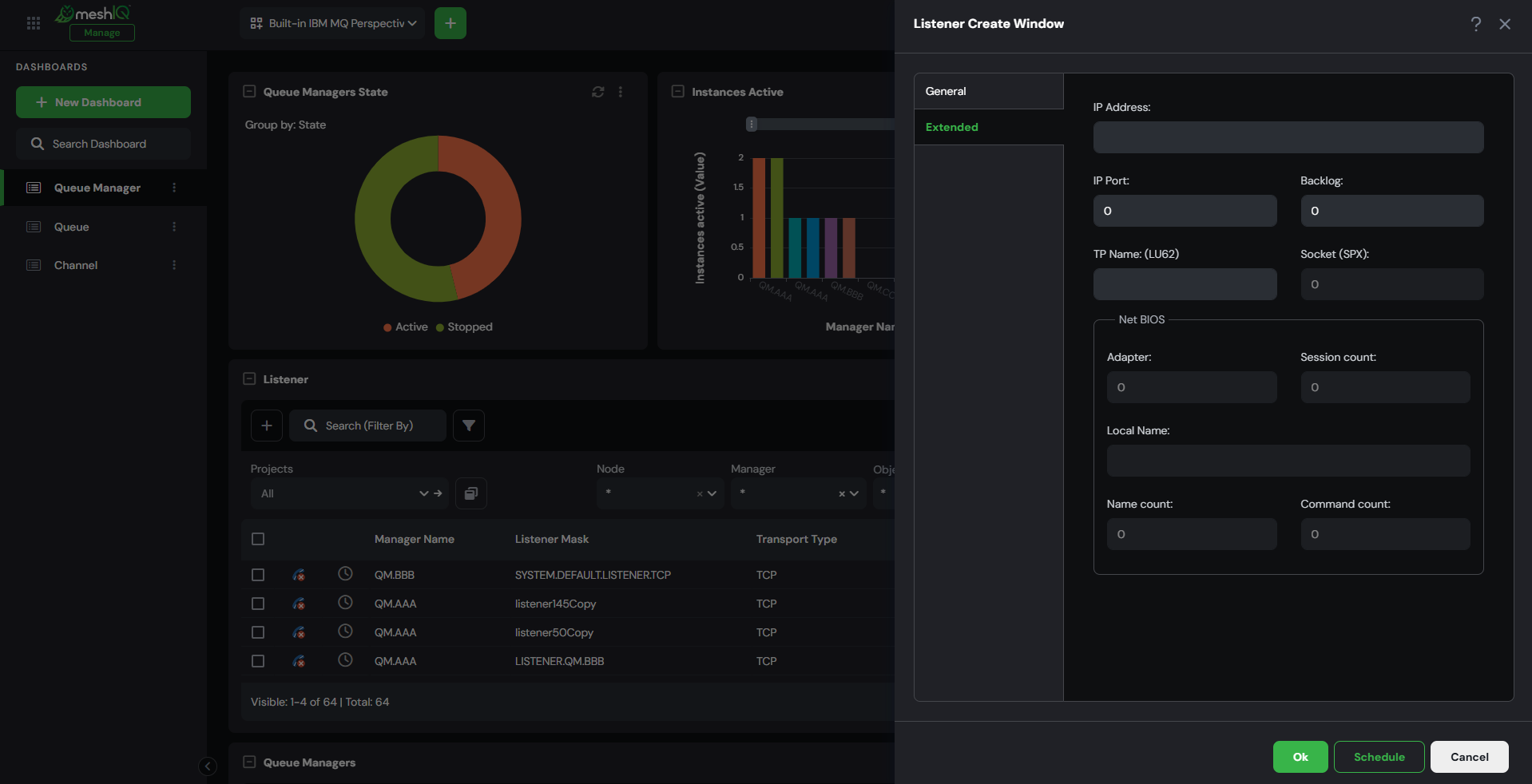

4. Populate the fields on the General and Extended tabs to customize the properties of the new listener.
   For detailed descriptions of the various input fields and tabs, go to the IBM Knowledge Center:
   https://www.ibm.com/docs/en/ibm-mq/9.3.x?topic=properties-listener.
   To understand how MQSC command keywords map to listener properties, see the section Map MQSC command keywords to listener properties.
5. After entering all information, click Ok to create the new listener, or click Schedule to create the listener at a later time (see Scheduling).


______________________________________________________________________________________________________________

Version 11.3 and Earlier

To create a Listener:

1. Select Create Listener from the pop-up menu (Selected menu from version 11.2 onwards) of a Listener viewlet, or click the Add button.
2. The Select object path window opens. Specify the Workgroup server, Node, and Queue manager for the new listener.

3. Click Select path. The Listener Create Window is displayed.
4. Populate the fields on the General and Extended tabs to customize the properties of the new listener.
5. Click Ok to create a listener.
