Object Group Management

In the security application, "objects" can be ACE, IIB, IBM MQ, TIBCO EMS, Kafka, Solace, or RabbitMQ objects. To generate security configurations using permits statements, a fully qualified object specification is required. To add, edit, or delete object groups, select Object Group Management from the Security Manager menu.

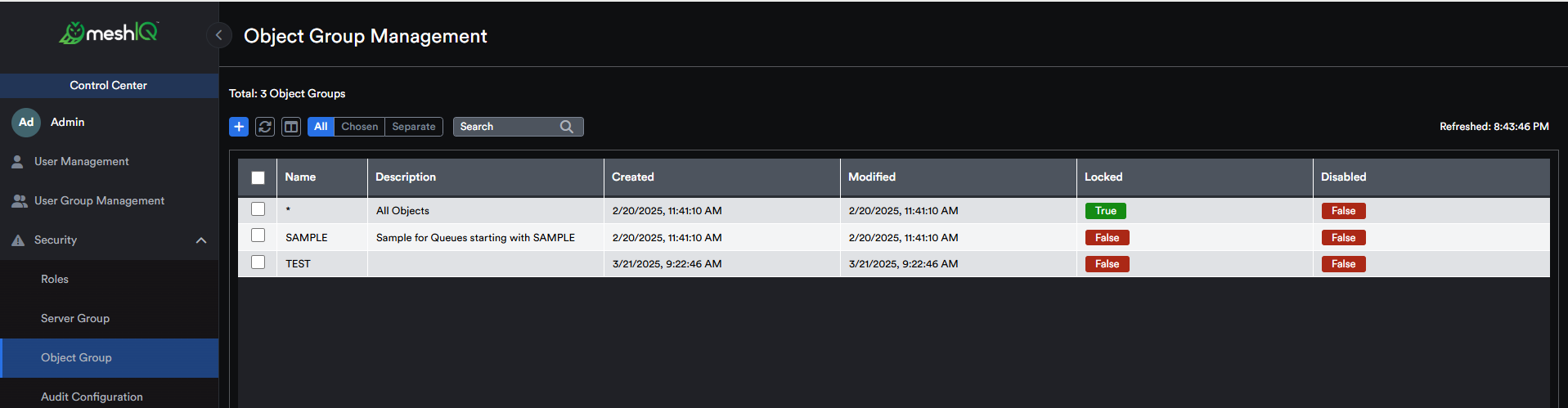

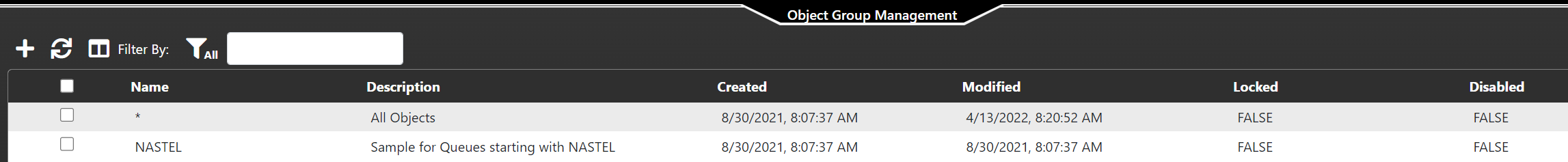

A sample entry for All Objects and Navigator queues (queues starting with NASTEL) is listed. You can create specific object groups that map to your applications. As you will notice when setting up object groups, an object group can be defined by what it includes or by what it excludes.


Add an object group

  1. In version 11.1 and earlier, select Security Manager > Object Group Management.
    In version 11.2, select Security Manager Security manager button.png> Object Group Management from the left toolbar.
  2. Click the add icon AddUsrBt.png.

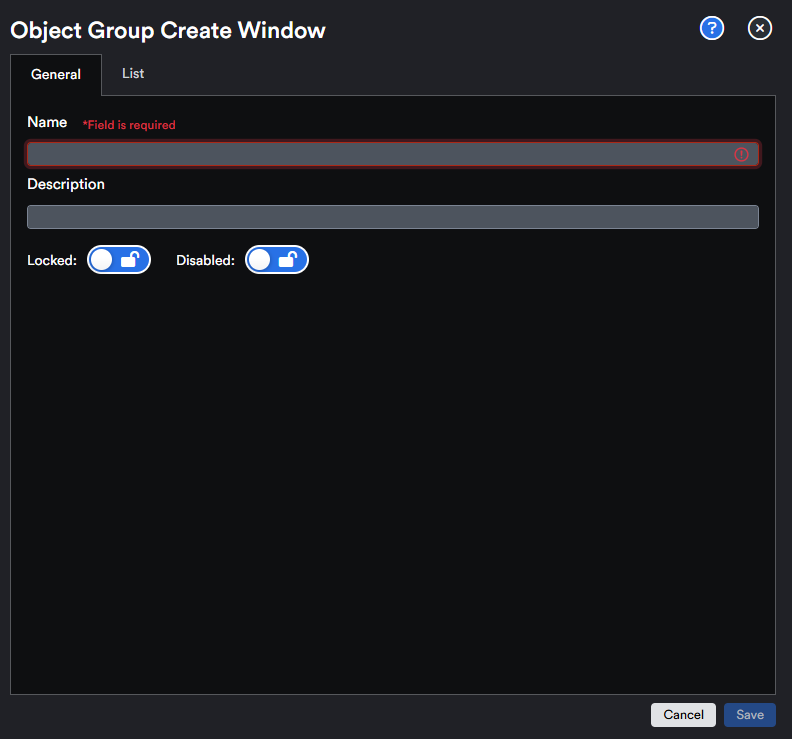

  3. On the General tab, enter the object group's Name (required) and a Description of this object group record (optional).
  • To prevent others from working on this record, select the Locked option and click Save.
  • To set up object groups ahead of time, you can enter their records but select the Disabled option. This prevents them from being accessed before the system is set up and ready to use. You can also use it to disable an object rather than deleting it.
  1. To specify the parameters of this object group, select the List tab. Enter a value for the Name and select the Type of object that this object group is for. An asterisk can be used to represent "All" (for example, an asterisk under Name indicates "all names." For example, the default record for all objects includes an asterisk in both of these fields.

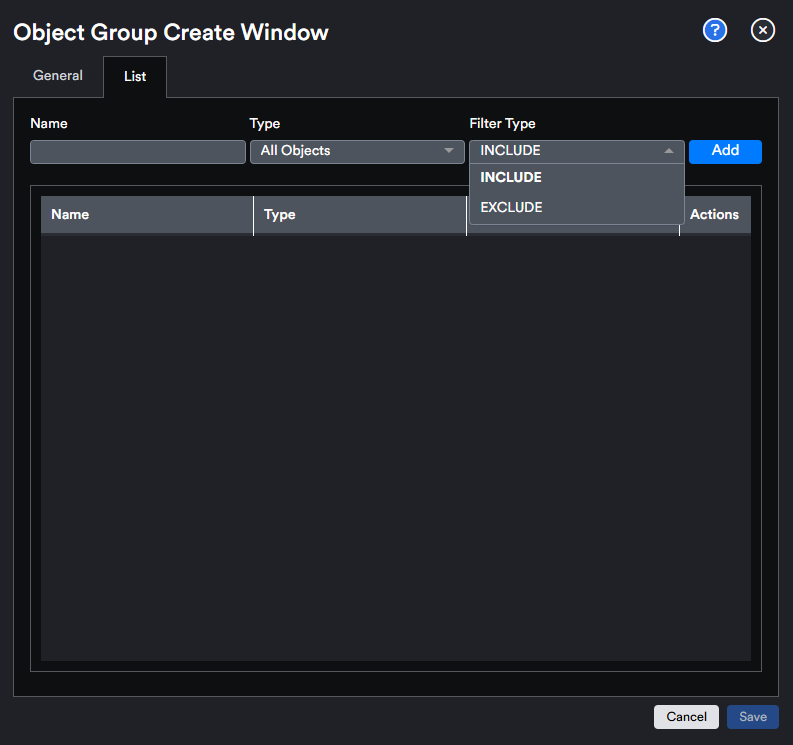

  2. Use the Filter Type to indicate how you are treating the specified names and types: do you want to INCLUDE them or EXCLUDE them from this group?
  3. Click +Add.
  4. Repeat steps 4 through 6 as needed.
  5. Click Save.

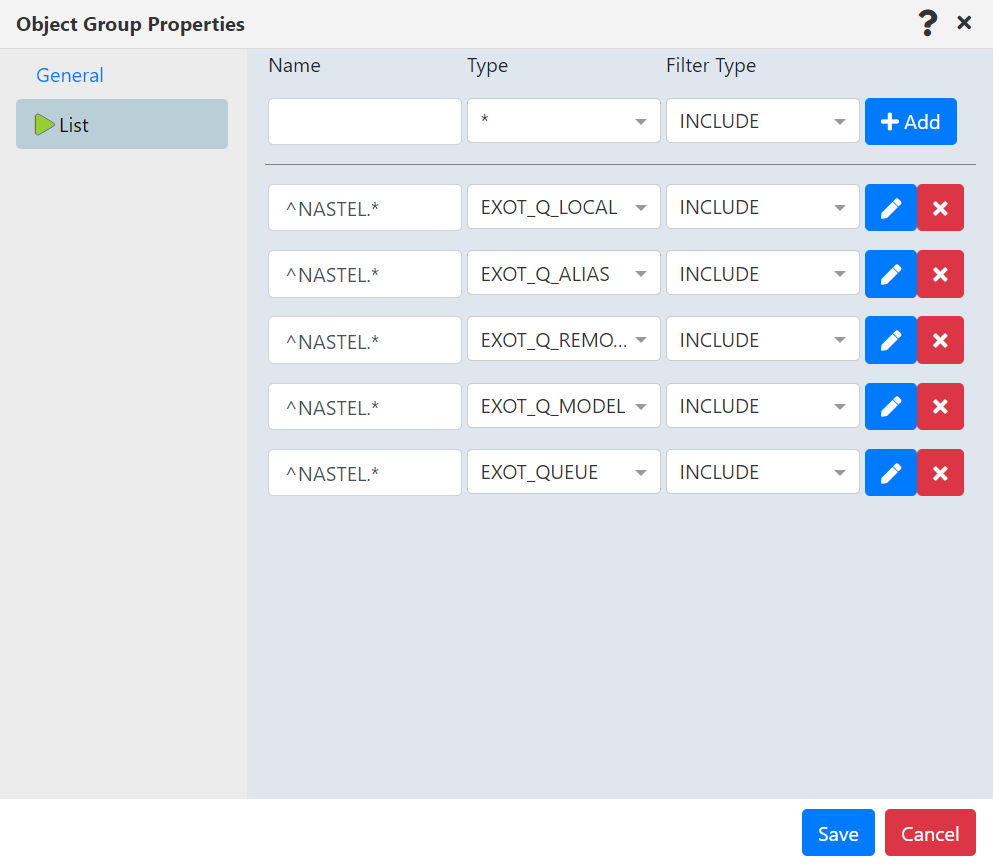

Object Group Properties Window in Version 11.1 and Earlier

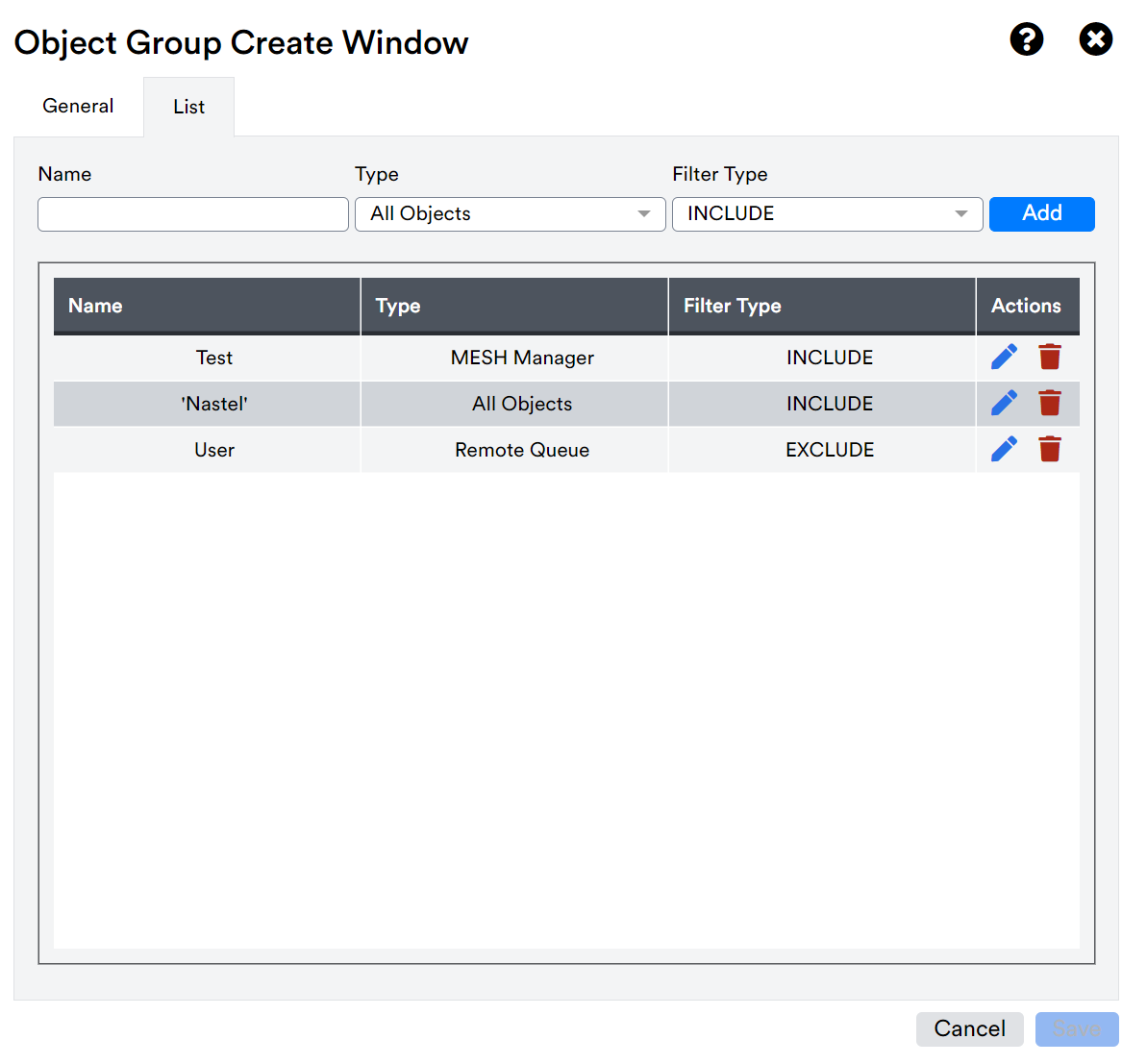

Object Group Create Window in Version 11.2

Add object group.png

Edit an object group

In version 11.1 and earlier, select the check box for an object group's record. On the pop-up menu, click Edit to open the Object Group Properties dialog. Use the Add an object group instructions above to make changes to the record.
In version 11.2, select the check box for an object group's record. On the Selected menu, click Edit to open the Object Group Properties dialog. Use the Add an object group instructions above to make changes to the record.

On the List tab, you can modify or delete records in the list:

  • To edit a record, you can make changes directly in the fields on the dialog. To view longer names more easily, you can also click EditRecord.png to open the Object Group Entry Properties dialog, make your changes there, and click Save.
  • To delete a record, click DltRecord.png.

Click Save on the dialog after making your changes.

Delete an object group

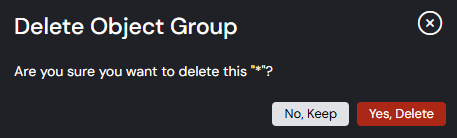

In version 11.1 and earlier, select the check box for an object group's record. On the pop-up menu, click Delete. On the Delete Confirmation dialog, click Yes to delete the user, or No to cancel the delete action.
In version 11.2, select the check box for an object group's record. On the Selected menu, click Delete. On the Delete Confirmation dialog, click Yes to delete the user, or No to cancel the delete action.
