The functionality described in this article is available in meshIQ Manage versions 12.1 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.
Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier
Version 12.x and Later
The Start Flow Monitoring and Stop Flow Monitoring commands control whether the integration server records monitoring events generated by its message flows. These events provide visibility into flow activity and support operational tracking and analysis.
Start Flow Monitoring:
Enables monitoring so the server begins capturing flow-related events. This helps users observe flow execution and gather insights when required.Stop Flow Monitoring:
Disables monitoring and stops the collection of flow events. This reduces processing overhead when detailed monitoring is not needed.
These options allow you to manage when monitoring data is captured, depending on your operational needs.
Start/Stop Flow Monitoring
To enable flow monitoring:

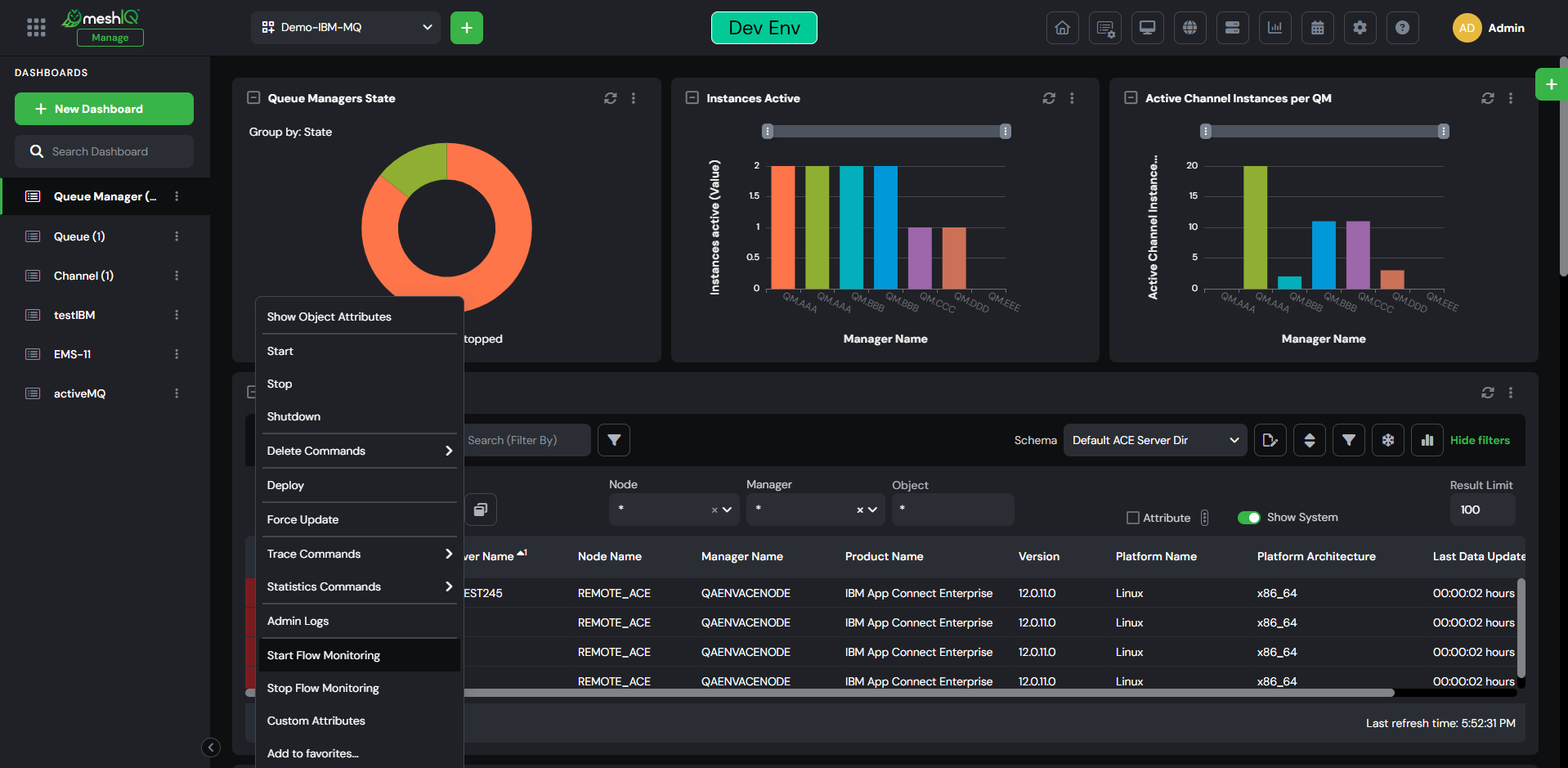

In the Server widget, select the integration server where you want to start flow monitoring.

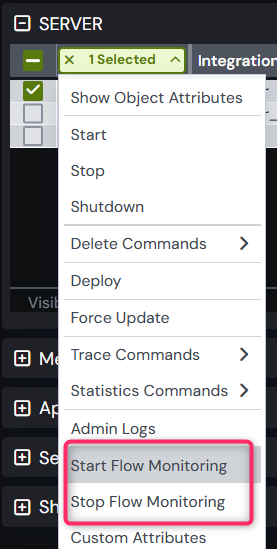

From the Selected menu, choose Start/Stop Flow Monitoring.
The action is applied immediately.
A success message appears at the bottom of the window confirming that flow monitoring has started or stopped.
_________________________________________________________________________________________________________________
Version 11.3 and Earlier
The Start Flow Monitoring and Stop Flow Monitoring commands control whether the integration server records monitoring events generated by its message flows. These events provide visibility into flow activity and support operational tracking and analysis.
Start Flow Monitoring:
Enables monitoring so the server begins capturing flow-related events. This helps users observe flow execution and gather insights when required.Stop Flow Monitoring:
Disables monitoring and stops the collection of flow events. This reduces processing overhead when detailed monitoring is not needed.
These options allow you to manage when monitoring data is captured, depending on your operational needs.
Start/Stop Flow Monitoring
To enable flow monitoring:
In the Server viewlet, select the integration server where you want to start flow monitoring.
From the Selected menu, choose Start/Stop Flow Monitoring.
The action is applied immediately.
A success message appears at the bottom of the window confirming that flow monitoring has started or stopped.
