The functionality described in this article is available in meshIQ Manage versions 12.1 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.
Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier
Version 12.x and Later
The Statistics Commands feature in an IIB/ACE integration server allows you to enable or disable runtime statistics collection at both the flow and resource levels. These controls help you gather performance insights, debug issues, and analyze runtime behavior efficiently.
Flow Statistics On — Enables detailed execution statistics for message flows running on the server. Useful for performance analysis and troubleshooting.
Flow Statistics Off — Disables flow-level statistics collection to reduce overhead when detailed monitoring is no longer needed.
Resource Statistics On — Activates statistics monitoring for system resources such as CPU, threads, heap usage, and other internal runtime metrics.
Resource Statistics Off — Turns off collection of resource-level statistics when monitoring is not required.
Performing Statistics Commands
To manage statistics settings for an integration server:

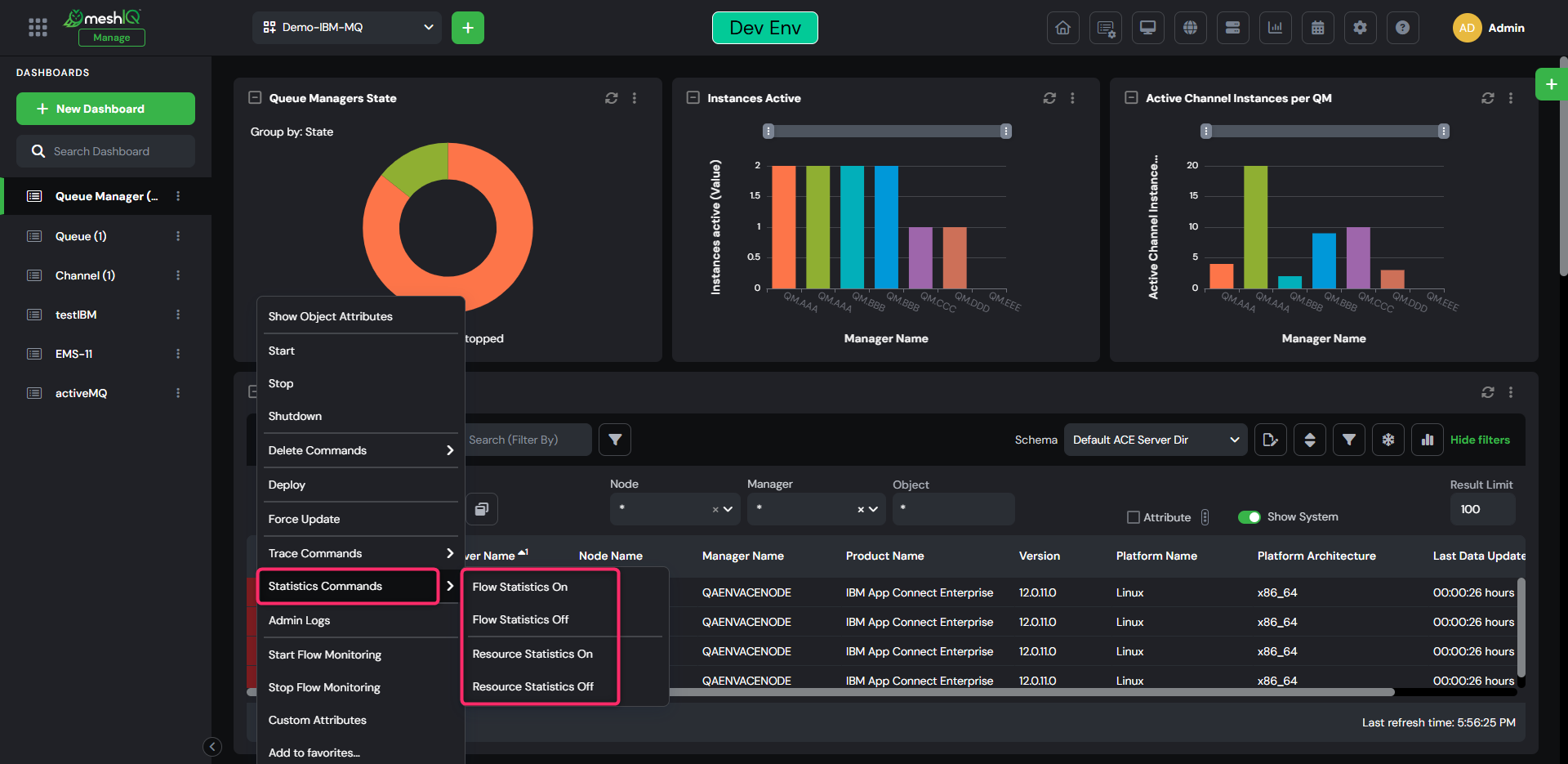

In the Server widget, select the integration server you want to configure.
From the Selected menu, choose Statistics Commands.
-
Choose one of the available options:
Flow Statistics On
Flow Statistics Off
Resource Statistics On
Resource Statistics Off
Actions are applied immediately, and a success notification appears at the bottom of the window once the action is completed.
_________________________________________________________________________________________________________________
Version 11.3 and Earlier
The Statistics Commands feature in an IIB/ACE integration server allows you to enable or disable runtime statistics collection at both the flow and resource levels. These controls help you gather performance insights, debug issues, and analyze runtime behavior efficiently.
Flow Statistics On — Enables detailed execution statistics for message flows running on the server. Useful for performance analysis and troubleshooting.
Flow Statistics Off — Disables flow-level statistics collection to reduce overhead when detailed monitoring is no longer needed.
Resource Statistics On — Activates statistics monitoring for system resources such as CPU, threads, heap usage, and other internal runtime metrics.
Resource Statistics Off — Turns off collection of resource-level statistics when monitoring is not required.
Performing Statistics Commands
To manage statistics settings for an integration server:

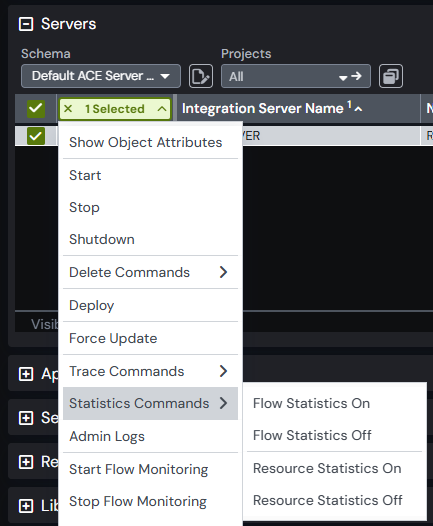

In the Server viewlet, select the integration server you want to configure.
From the Selected menu, choose Statistics Commands.
-
Choose one of the available options:
Flow Statistics On
Flow Statistics Off
Resource Statistics On
Resource Statistics Off
Actions are applied immediately, and a success notification appears at the bottom of the window once the action is completed.
