Some of the content described in this article is available in meshIQ Manage versions 12.1 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier

Version 12.x and Later

To create a Service,

1. Open a Service widget.

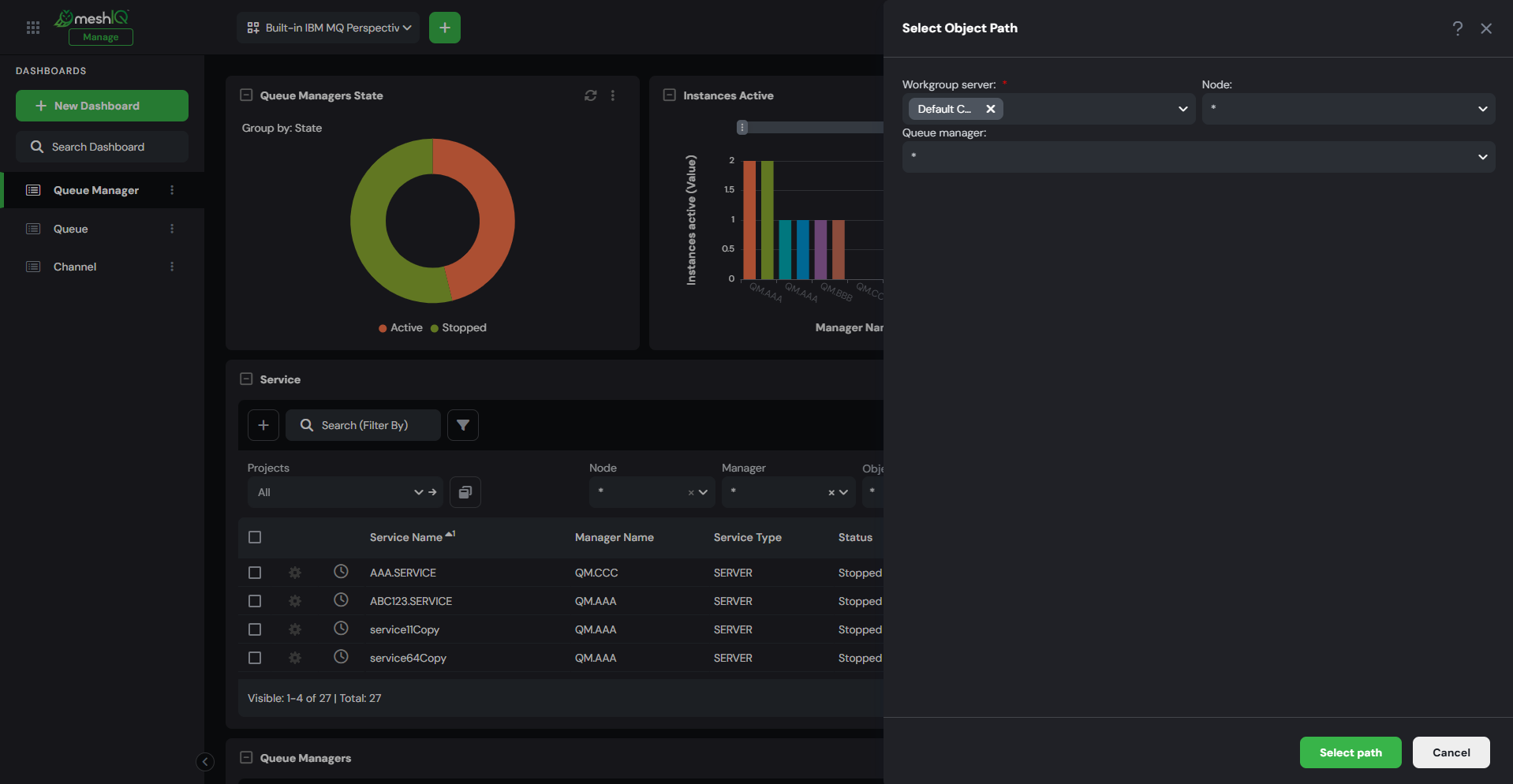

2. Click Add Service button, the Select Object Path dialog opens.

3. Specify the object path for the new Service, then click Select path. The Service Create Window opens.

4. Populate the fields on the General, Startup and Shutdown tabs to customize the properties of the new Service.

   For detailed descriptions of the various input fields and tabs, go to the IBM Knowledge Center:

   https://www.ibm.com/docs/en/ibm-mq/9.3.x?topic=properties-mq-service-definition

   To understand how MQSC command keywords map to Service properties, see the section Map MQSC Command Keywords to Service Properties.

5. After entering all required information, click Ok to create the Service, or click Schedule to create the Service at a later time (see Scheduling).

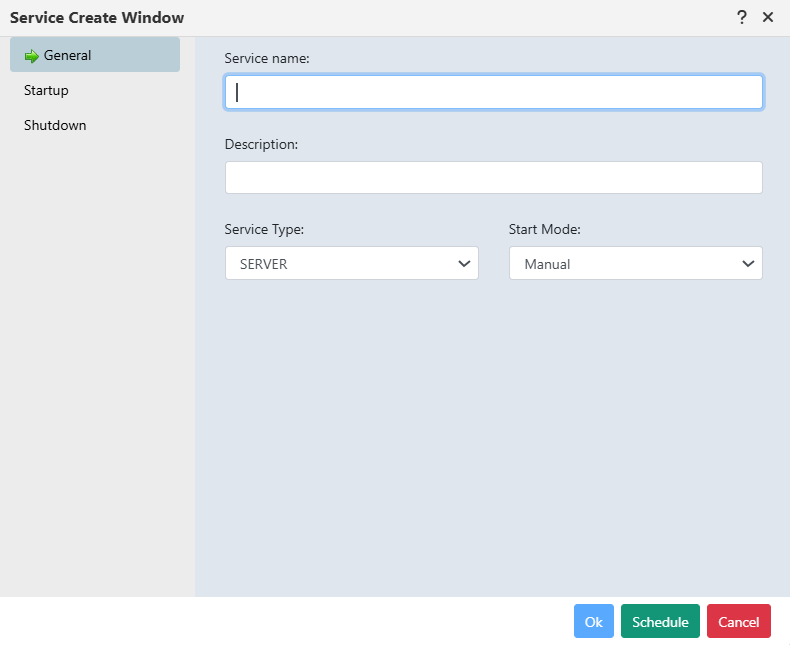

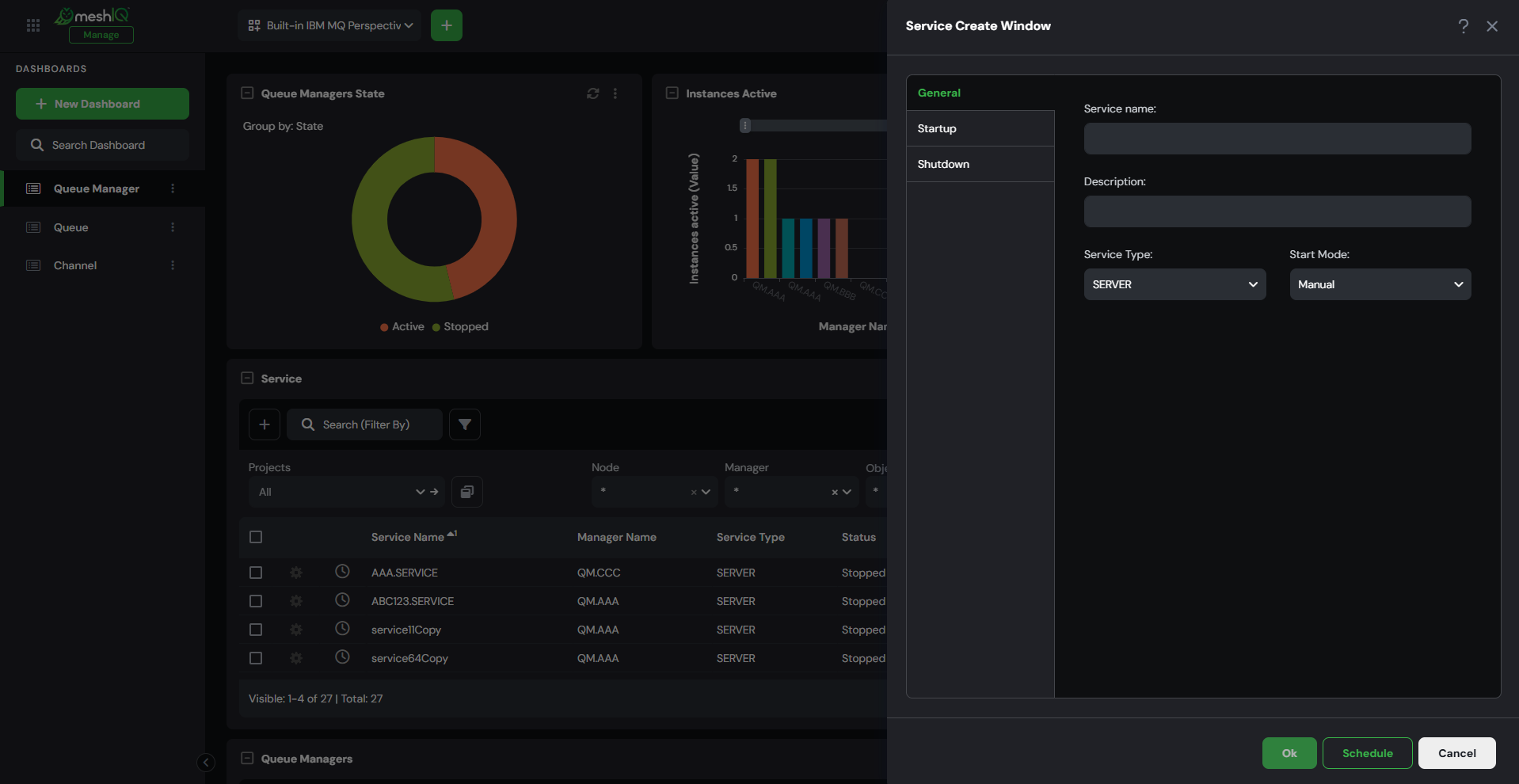

General tab

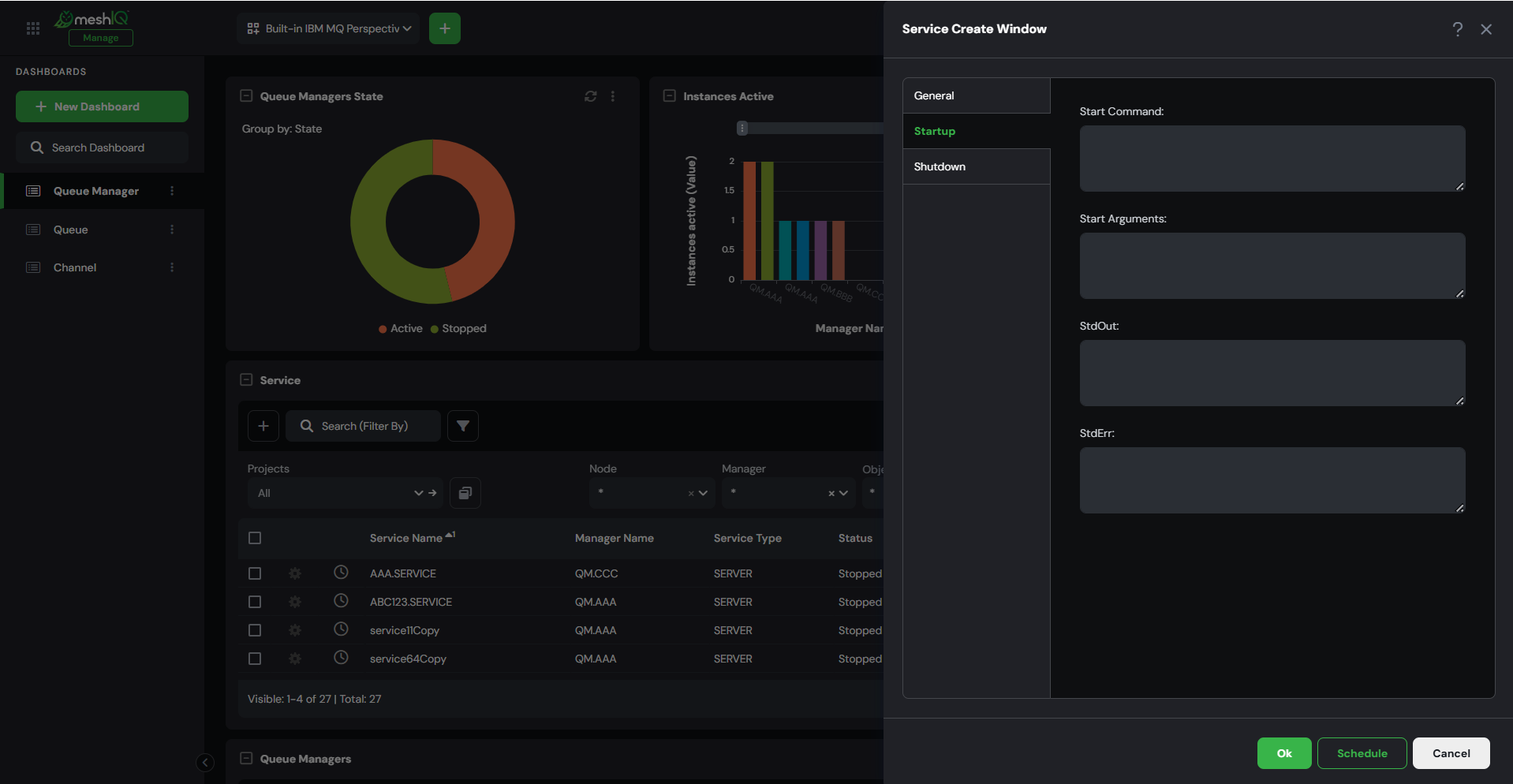

Startup tab

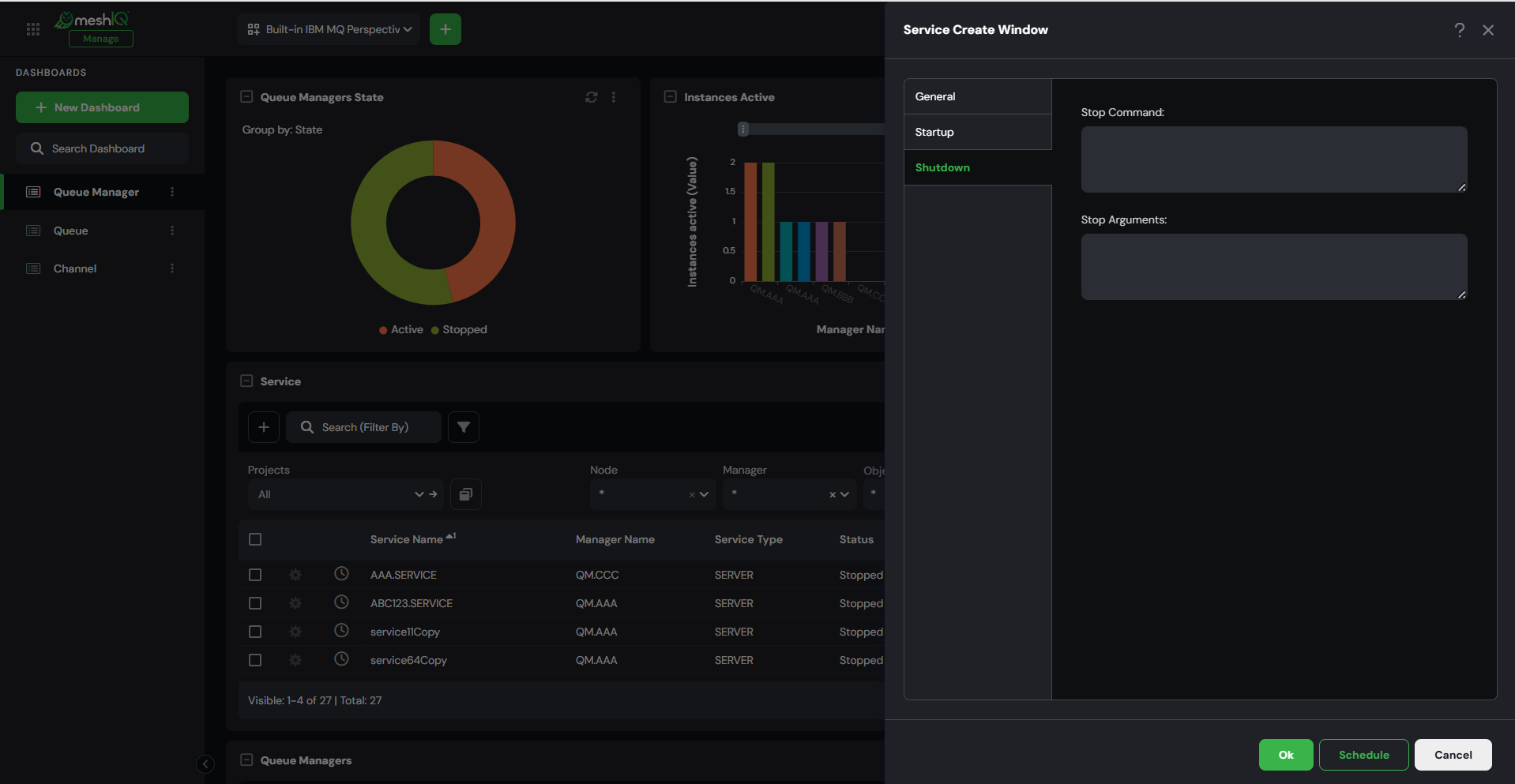

Shutdown tab

_________________________________________________________________________________________________________________

Version 11.3 and Earlier

To create a Service,

1. Open a Service viewlet.
2. Click Add , the Select Object Path window opens.
3. Specify the object path of the new service and click Select path the Service Create Window is displayed.
4. Populate the fields on the General, Startup and Shutdown tabs to customize the properties of the new Service.
5. Click Ok to create the Service.
