Viewlets have many options. Use the images and explanations below for a better understanding.

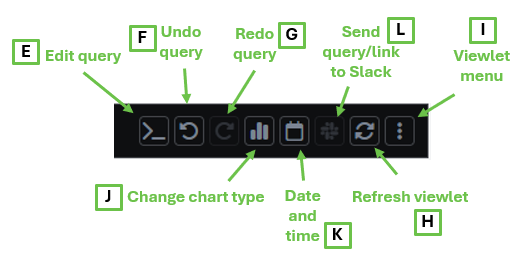

Version 11.2
Refer to the letters for each object in the legend below for details.

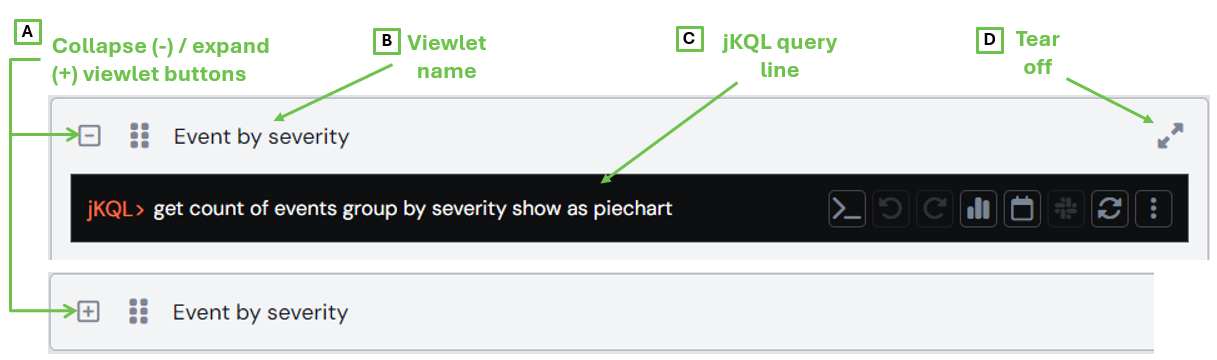

Versions 11.1 and earlier
Refer to the letters for each object in the legend below for details.
Legend
A: Collapse / Expand: Click to either minimize or expand a viewlet.
B: Viewlet name: The name of your viewlet.
C: jKQL query line: The query which generated the viewlet's data.
D: Tear Off: Opens the viewlet in a new larger window.
D: Edit Query: When clicked, the query line becomes an editable field (or you can simply click within the query line). Make your changes. Suggestions will appear as you type the updated query.
F: Undo Query: Click this button to undo the last update made to the query.
G: Redo Query: Repeat the change you have undone.
H: Refresh Viewlet: Refreshes the viewlet. This process will check for new data.
I: Viewlet Menu: Click the menu button (or
in version 11) to open the viewlet menu.
J: Chart Type: Update the viewlet’s chart type. When clicked, the selected chart type of the viewlet will appear in blue.
K: Date and Time: Sets the date and time range for a viewlet. This time range will only be effective for the current session; the next time you log in, the system's default date and time range will be used.
L. Send query/link to Slack: See the Social Integration: Slack article for more information.
