Some of the content described in this article is available in meshIQ Manage versions 12.1 and later.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.
Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier
Version 11.1.1
Version 11.0.x and Earlier
Version 12.x and Later
Starting with version 12.x, the Manage UI has been separated into two dedicated views: the Manage Home page and the Perspective screen. For the updated experience, see Manage Home page and User Perspective Screen Overview.

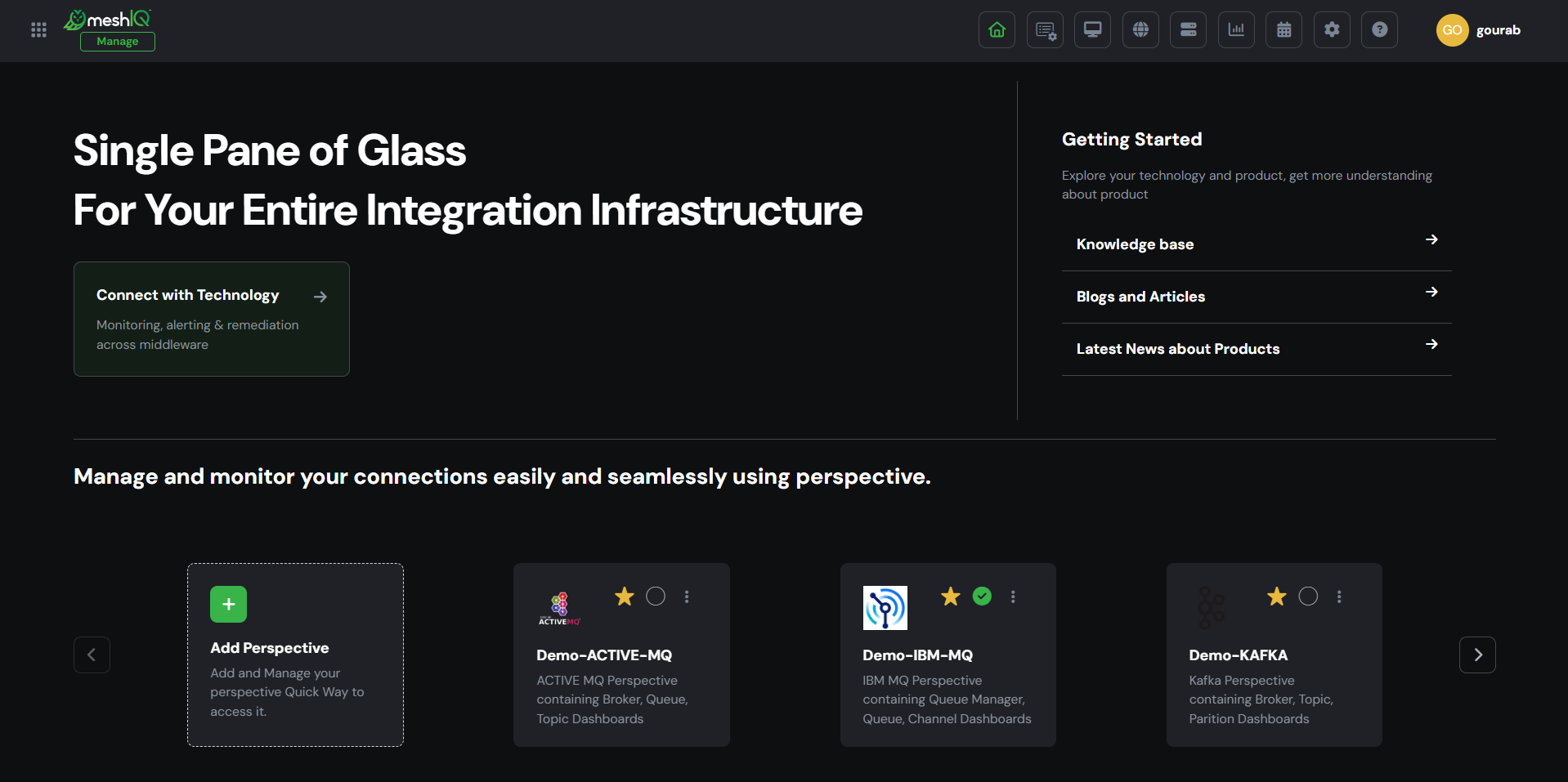

Manage Home Page

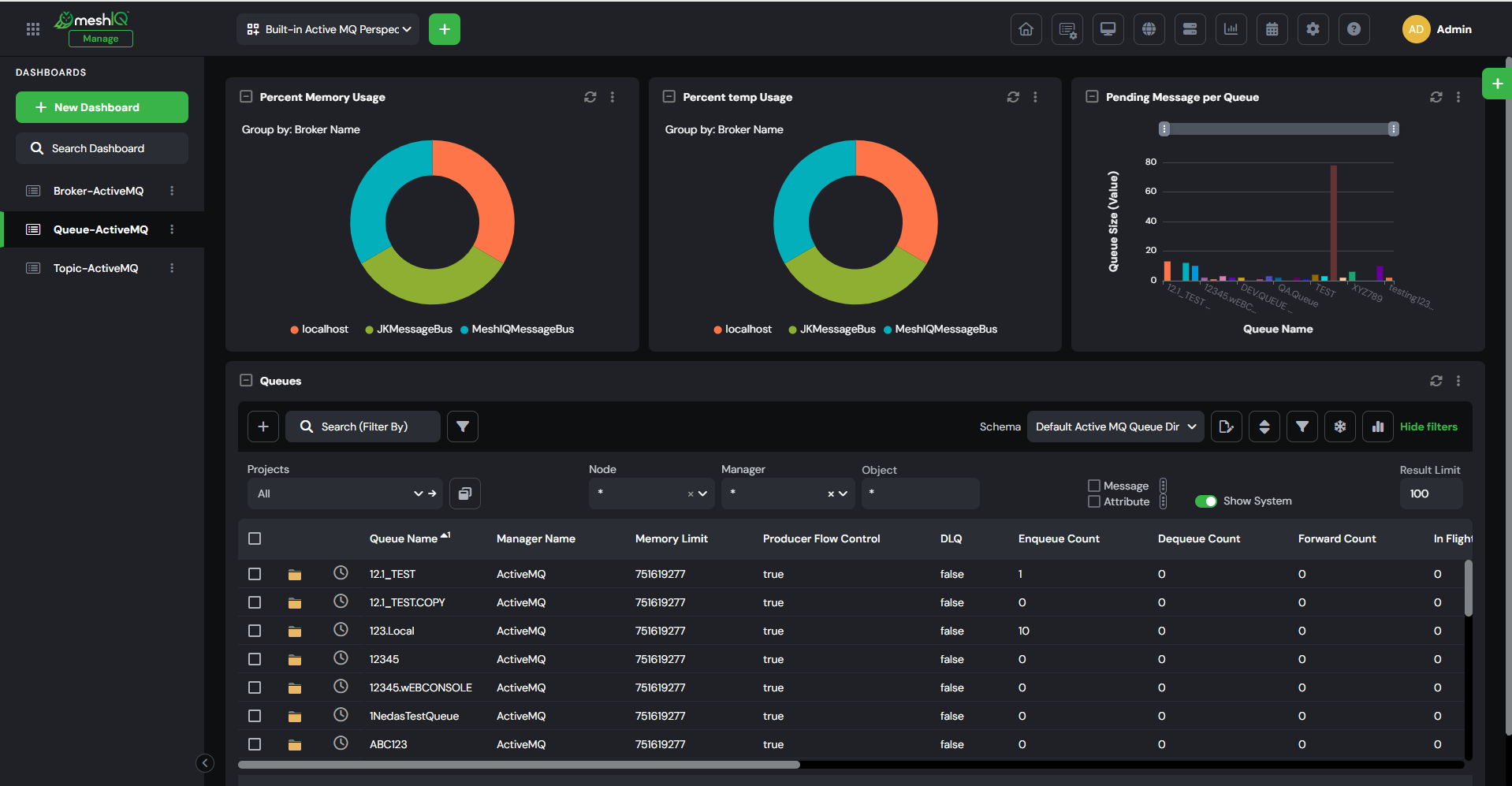

Perspective Screen
_______________________________________________________________________________________________________________
Due to recent user interface redesigns, examples from different versions are provided below. For your convenience, the legend below applies to all samples in this article.
Version 11.3 and Earlier

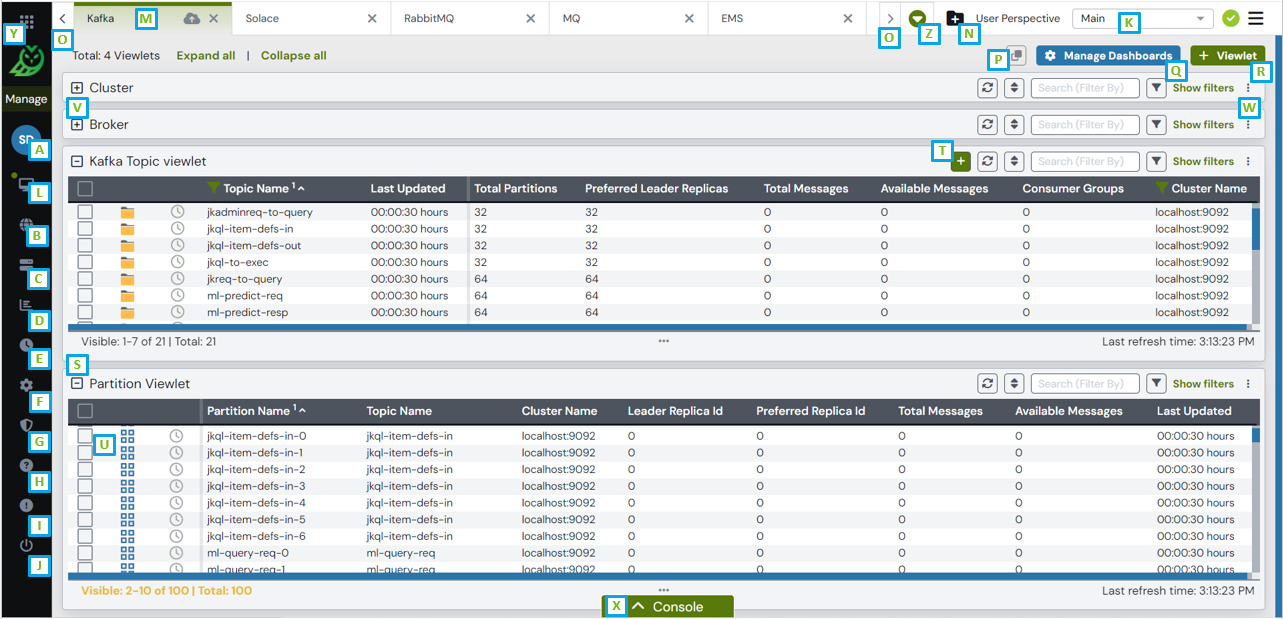

The screen below represents the redesigned user interface available in versions 11.2.
Legend
A: Username of the user who is logged in.
B: Connect: Reconnects workgroup server connections.
C: Request History button. Displays all running and completed tasks
D: Statistics: Run the Statistics Report to determine the most valuable features at your organization.
E: Schedules: View all scheduled jobs.
F: Settings: Click to display system settings. This is where user and message settings are configured.
G: Security Manager: Configure permissions for users.
H: Help: Opens the Resource Center or other online resource defined in your system’s global settings.
I: About: Displays the version number. From version 12.0 onwards, it displays both the version number and the build number.
J: Logout button
K: User Perspective: Arrange related dashboards into views or "perspectives" for easy viewing.
L: Workspace dashboard. The Workspace dashboard is the default dashboard. It shows your connections.
M: Other Dashboards: Each tab represents a different dashboard.
N: Create Dashboard: Click the plus sign to create a new dashboard.
O: Scroll Dashboards: The left and right arrows display when there are dashboard tabs not visible in the immediate view. Click the arrows to scroll through the dashboard tabs.
P: Paste: Used when copying objects.
Q: Dashboards … or Manage Dashboards button: Used to access Dashboard Management.
R: Add new viewlets: Click to create new viewlets.
S: Collapse: Click to collapse (minimize) viewlets.
T: Add button: Click the + to add a new object for this type (if supported)
U: Action/Selected menu: Select to display the object’s action menu (Selected menu from version 11.2 onwards).
V: Expand: Click to expand viewlets.
W: Viewlet Menu: Gives the additional optionx to manage a viewlet.
X: Console panel: Object details are displayed within this section.
Y: App Switcher: Click to switch from Manage to other meshIQ applications.
Z: Dashboard Dropdown button: Click the down arrow to view the list of available dashboards.
Version 11.1.1

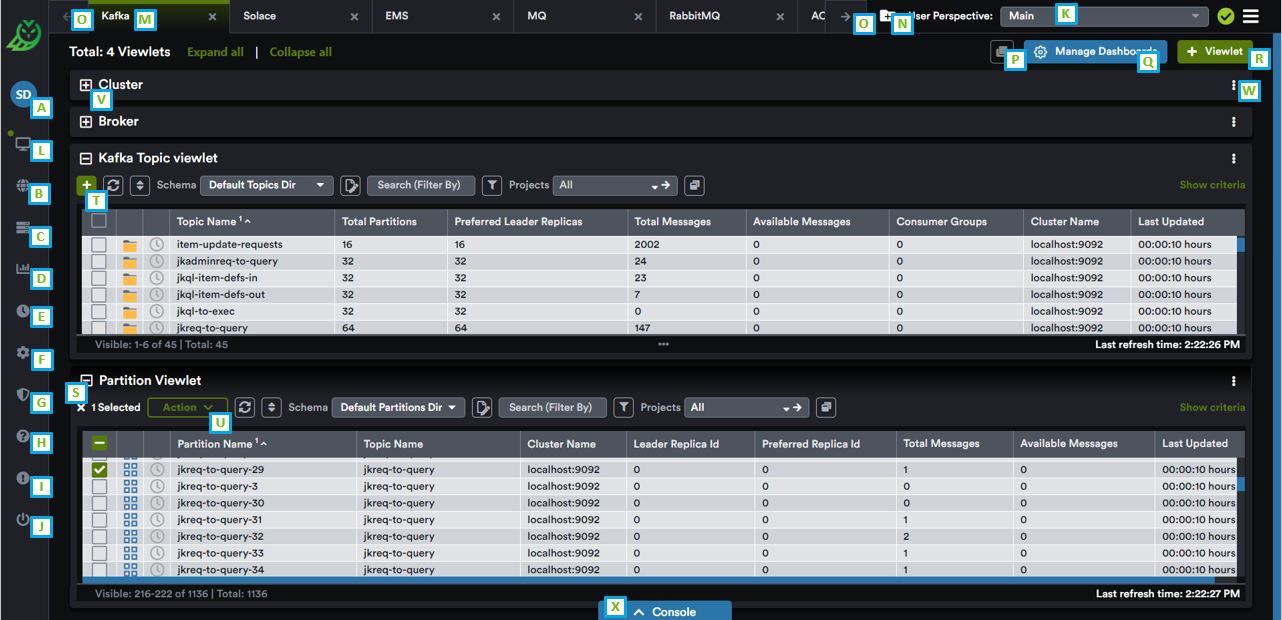

The screen below represents the redesigned user interface available in versions 11.1.1 and later. Refer to the legend below for explanations of the user interface buttons and tabs.
Versions 11.0.x and earlier

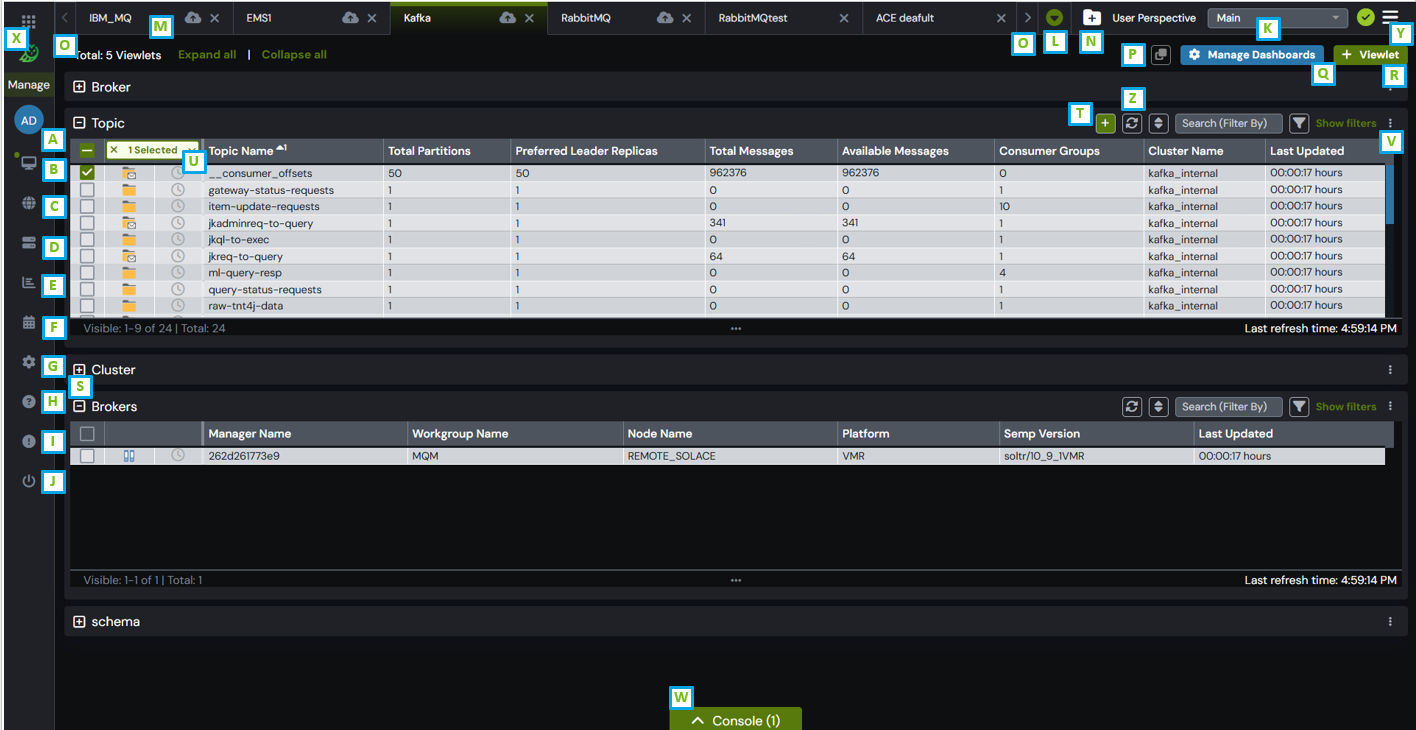

Refer to the legend below for explanations of the user interface buttons and tabs.
