Some of the content described in this article is available in meshIQ Manage versions 12 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.
Jump to Section:
Version 11.2 and Earlier
Version 12.x and Later
Version 11.2 and Earlier

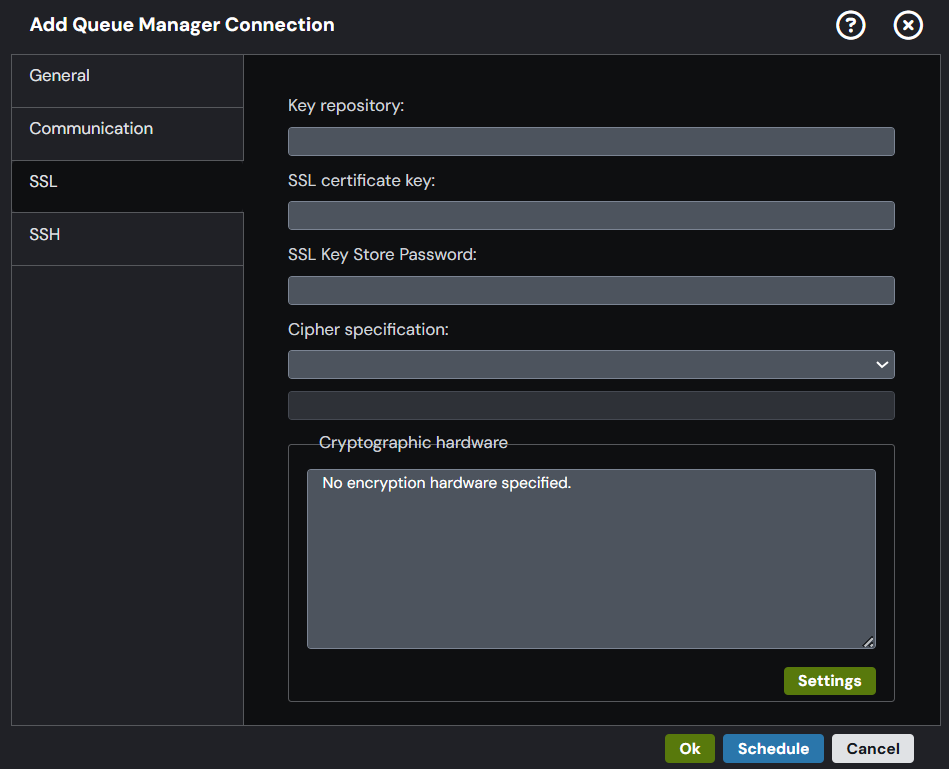

To establish an SSL connection, you can use the Queue Manager Connection SSL tab. The configuration tab shown below is an example of parameters for setting up secure connections with SSL.
These are only examples and do not reflect the actual parameters that would be needed in a specific customer environment.
The table below shows the values from the example in text form.
|
Field |
Description |
|---|---|
| Key Repository |
Enter the path of the key store file. Example: C:\Keys\client.jks |
| SSL Certificate Key | Enter the alias of the private key in the key store. |
| SSL Key Store Password | Enter the password for your certificate. |
| Cipher Specification | TLS_RSA_WITH_AES_128_CBC_SHA256 |
_______________________________________________________________________________________________________________
Version 12.x and Later

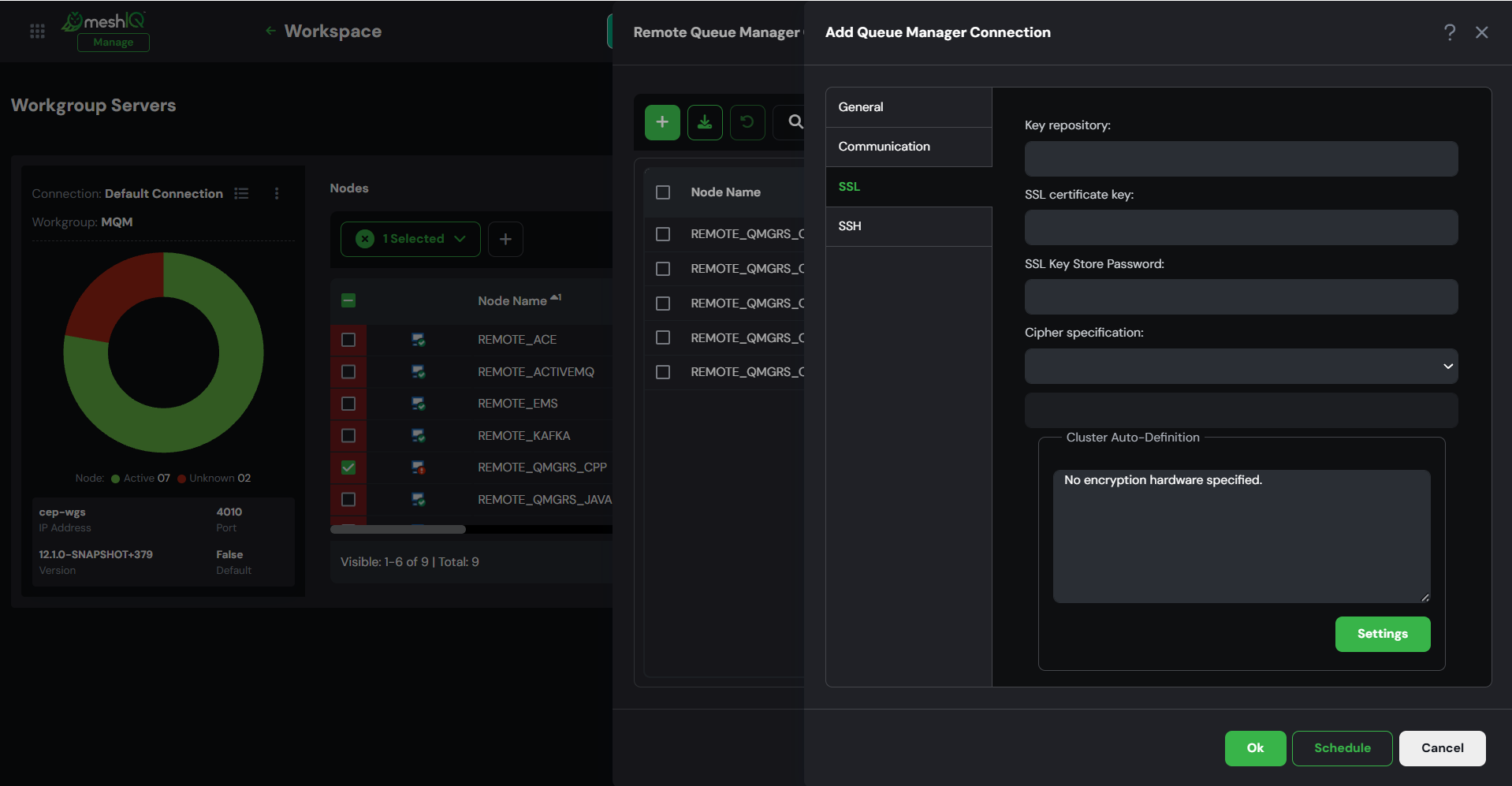

To establish an SSL connection, you can use the Queue Manager Connection SSL tab. The configuration tab shown below is an example of parameters for setting up secure connections with SSL.
These are only examples and do not reflect the actual parameters that would be needed in a specific customer environment.
The table below shows the values from the example in text form.
|
Field |
Description |
|---|---|
| Key Repository |
Enter the path of the key store file. Example: C:\Keys\client.jks |
| SSL Certificate Key | Enter the alias of the private key in the key store. |
| SSL Key Store Password | Enter the password for your certificate. |
| Cipher Specification | TLS_RSA_WITH_AES_128_CBC_SHA256 |
