Some of the content described in this article is available in meshIQ Manage versions 12.0 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 11.2 and Earlier
Version 12.x and Later

Version 11.2 and Earlier

To create a process:

1. Open a Process viewlet.
2. Click Add , or select Create Process from the pop-up menu (Selected menu from v11.2 onwards). The Select Object Path window opens.
3. Specify the object path of the new process and click Select path the Process Create Window is displayed.
4. Populate the fields on the General and Extended tabs to customize the properties of the new process.
5. Click Ok to create the process.

______________________________________________________________________________________________________________

Version 12.x and Later

To create a Process:

1. Open a Process viewlet.

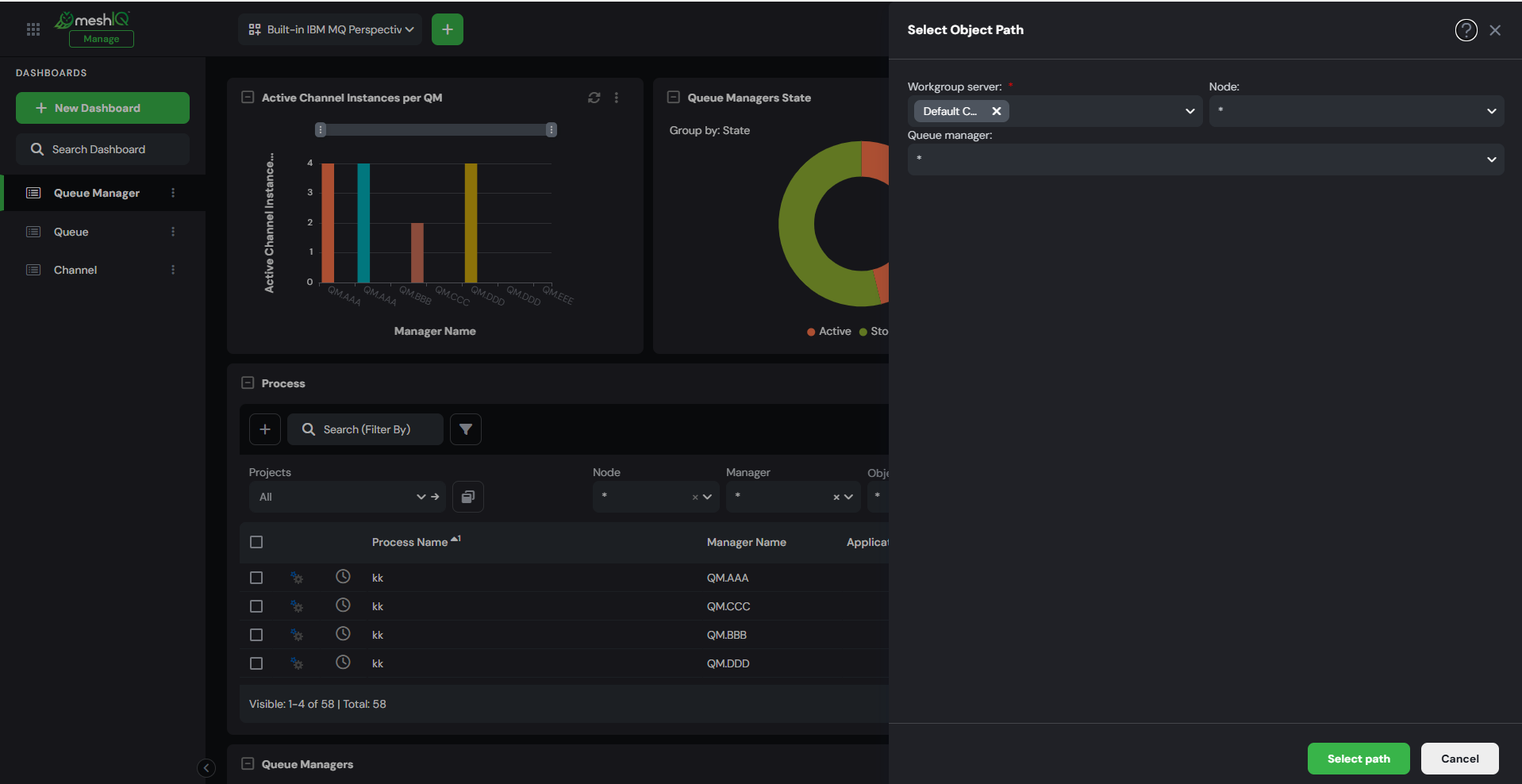

2. Click Add Process , or select Create Process from the process's Selected menu. The Select Object Path window opens.

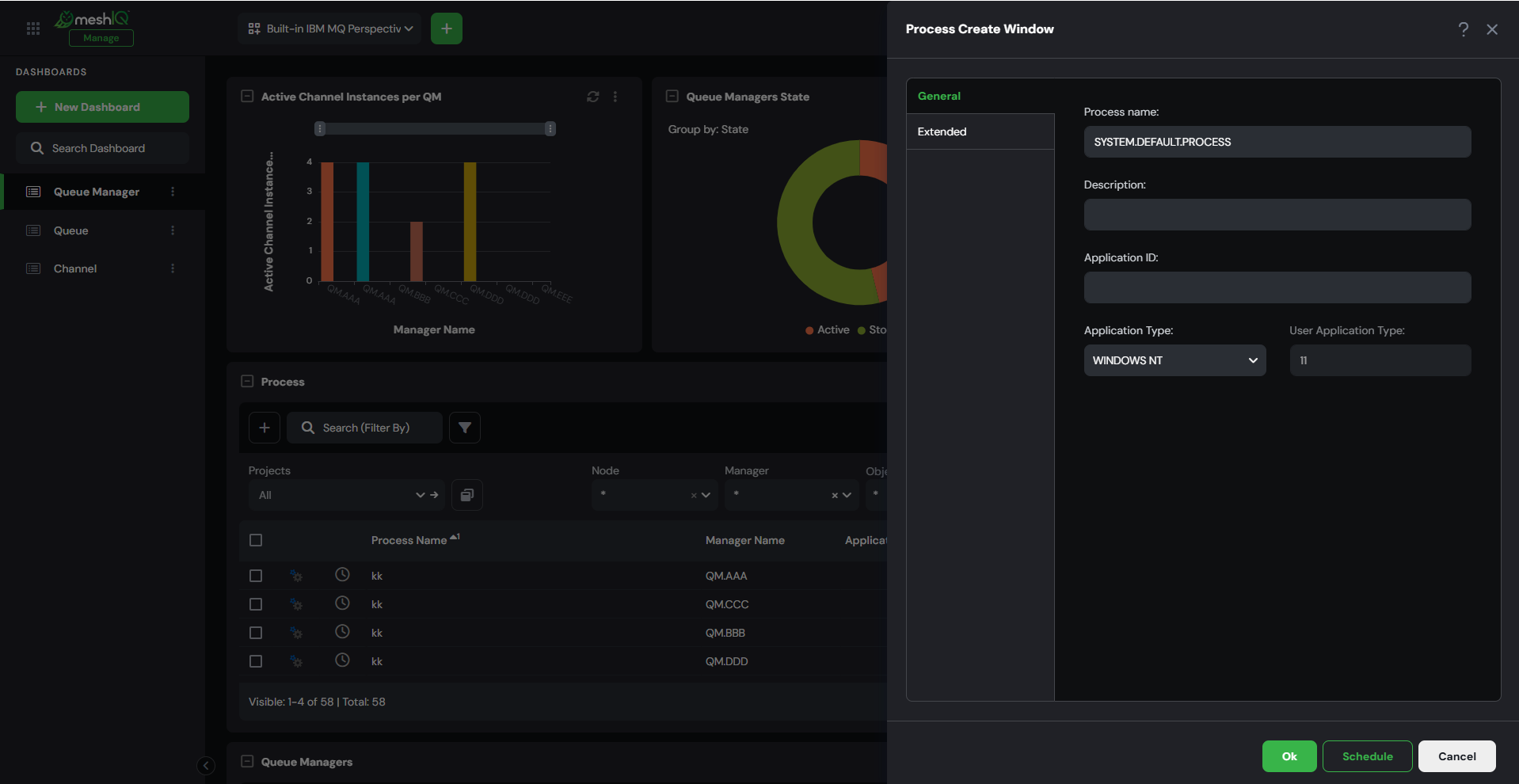

3. Specify the Workgroup Server, Node, and Queue Manager, then click Select Path. The Process Create window is displayed.

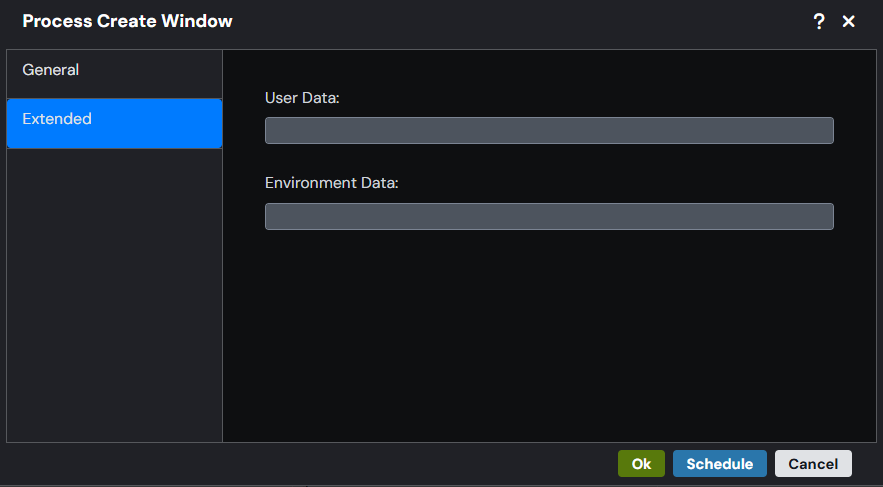

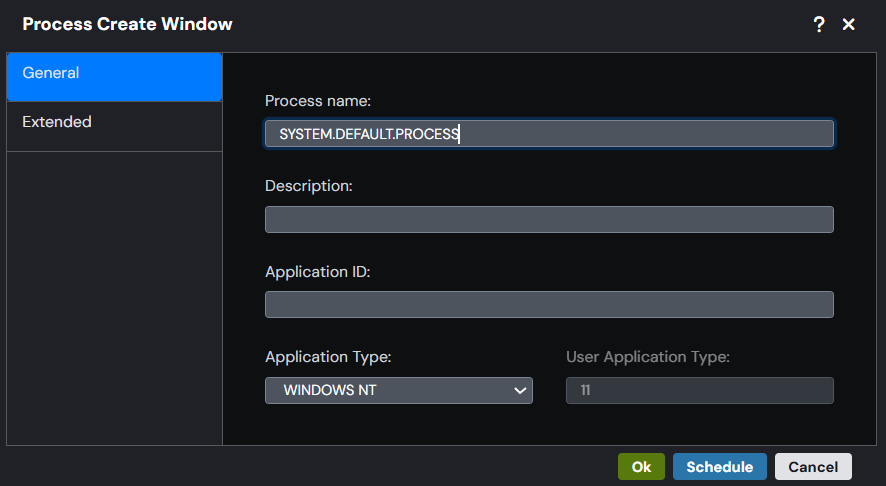

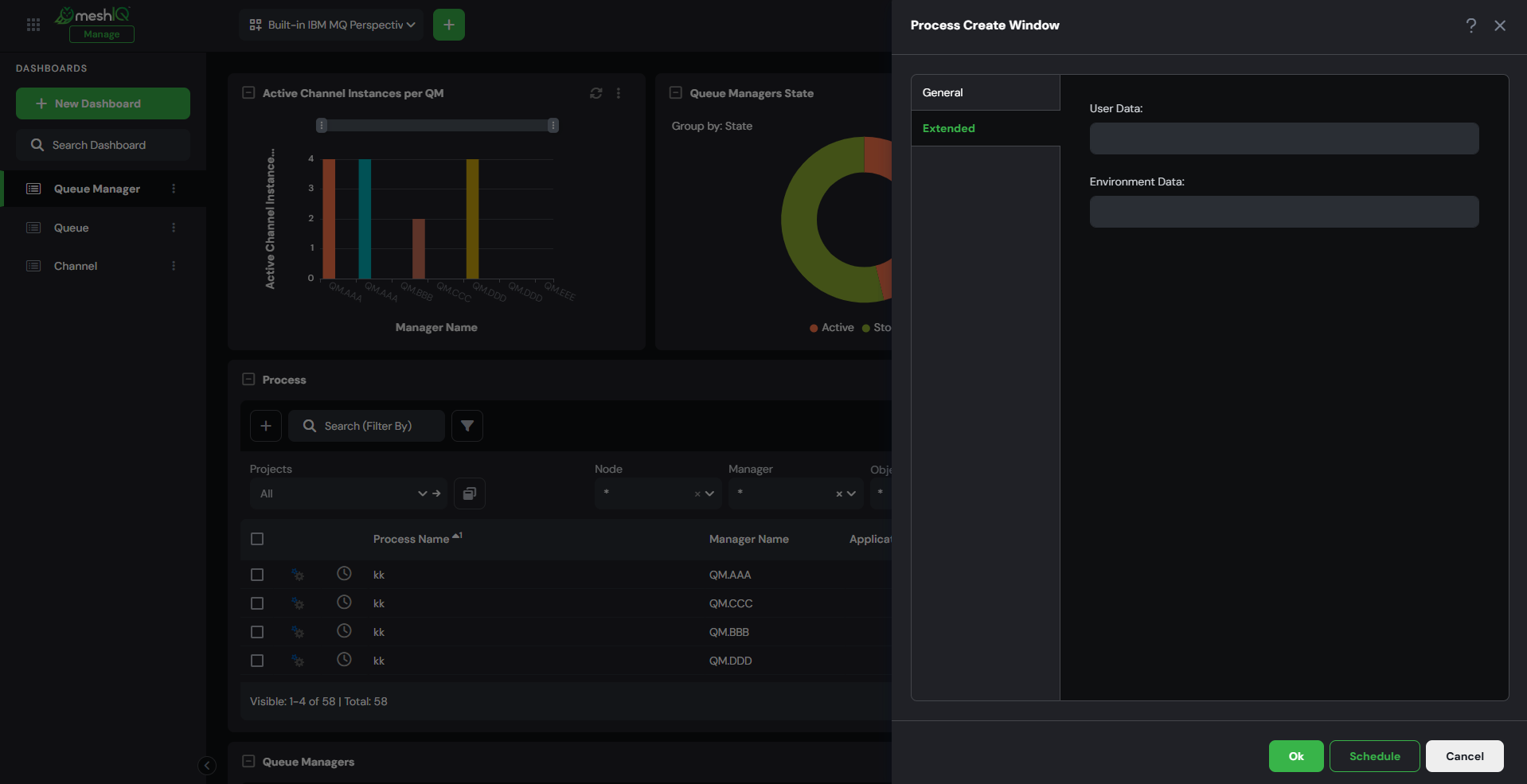

4. Populate the fields on the General and Extended tabs to customize the properties of the new process.


   For detailed descriptions of the various input fields and tabs, go to the IBM Knowledge Center:

   https://www.ibm.com/docs/en/ibm-mq/9.3.x?topic=properties-process-definition

   To understand how MQSC command keywords map to process properties, see the section Map MQSC command keywords to process properties.
5. After entering all required information, click OK to create new process, or click Schedule to create the process at a later time (see Scheduling).
