This article describes how to migrate the WGS, Manage, and Core Permits databases from meshIQ 11.x to meshIQ 12.1.1 using the jdbcmk utility.

Back up the existing databases and permits data before starting the migration. Do not modify the source databases directly. The migration creates new target databases from the existing source databases.

Overview

The migration uses the following source and target databases:

Component	Source Database	Target Database
WGS	`nastel_apwmq`	`meshiq_wgs`
Manage	`nastel_permv3`	`meshiq_manage`
Core Permits	`nastel_permv3`	`meshiq_core_perm`

Migrate the WGS Database

The legacy WGS database is nastel_apwmq. Create the new meshiq_wgs database from the legacy database and then upgrade the WGS database objects.

Clone the legacy database (nastel_apwmq)
1. If meshiq_wgs already exists, delete it using the following command:
```
dropdb -h localhost -U postgres meshiq_wgs
```
1. Create a new database called meshiq_wgs by copying the existing nastel_apwmq database using the following command:
```
createdb -h localhost -U postgres \
       -T nastel_apwmq \
       meshiq_wgs
```
Rename the WGS Schema.
The cloned database initially contains the nastel_apwmq schema. Rename it to meshiq_wgs:
```
psql -h localhost -U postgres -d meshiq_wgs \
       -c "ALTER SCHEMA nastel_apwmq RENAME TO meshiq_wgs;"
```
Upgrade WGS Database Objects.
Ensure that the manage.properties file in [PLATFORM_HOME]/sql-scripts/manage contains the correct database details before running jdbcmk.sh.

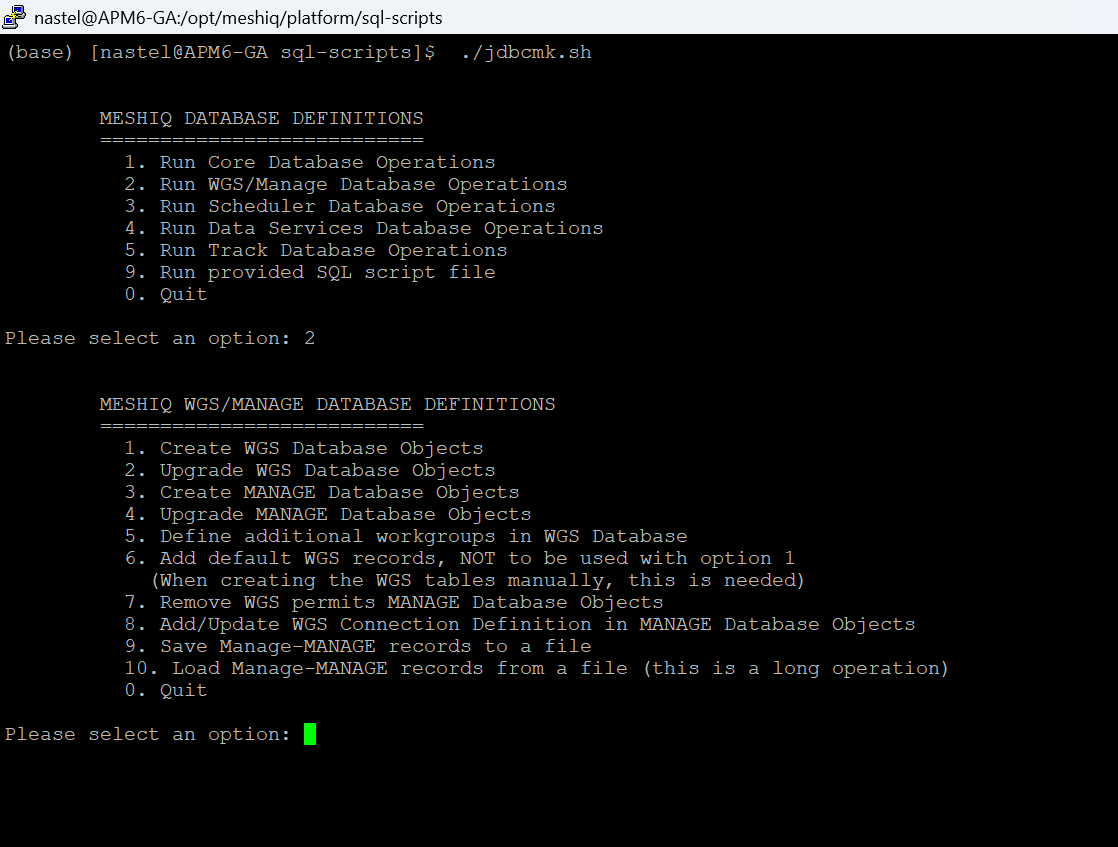

Run the jdbcmk utility:
1. From shell run: ./jdbcmk.sh
2. From the jdbcmk main menu, select Option 2.
3. Then select Option 2 from WGS/MANAGE DATABASE menu, to upgrade the WGS Database Objects.

Migrate the Manage Database

The legacy Manage database is nastel_permv3. Create the new meshiq_manage database and upgrade the Manage database objects.

Clone the legacy database(nastel_permv3).
1. If meshiq_manage already exists, delete it using the following command:
```
dropdb -h localhost -U postgres meshiq_manage
```
1. Create the new database called meshiq_manage by copying from the old database nastel_permv3 using the following command:
```
createdb -h localhost -U postgres \
      -T nastel_permv3 \
      meshiq_manage
```
Rename the Manage Schema.
The cloned database initially contains the nastel_permv3 schema. Rename it to meshiq_manage:
```
psql -h localhost -U postgres -d meshiq_manage \
       -c "ALTER SCHEMA nastel_permv3 RENAME TO meshiq_manage;"
```
Upgrade Manage Database Objects.
Ensure that the manage.properties file in [PLATFORM_HOME]/sql-scripts/manage contains the correct database details before running jdbcmk.sh.

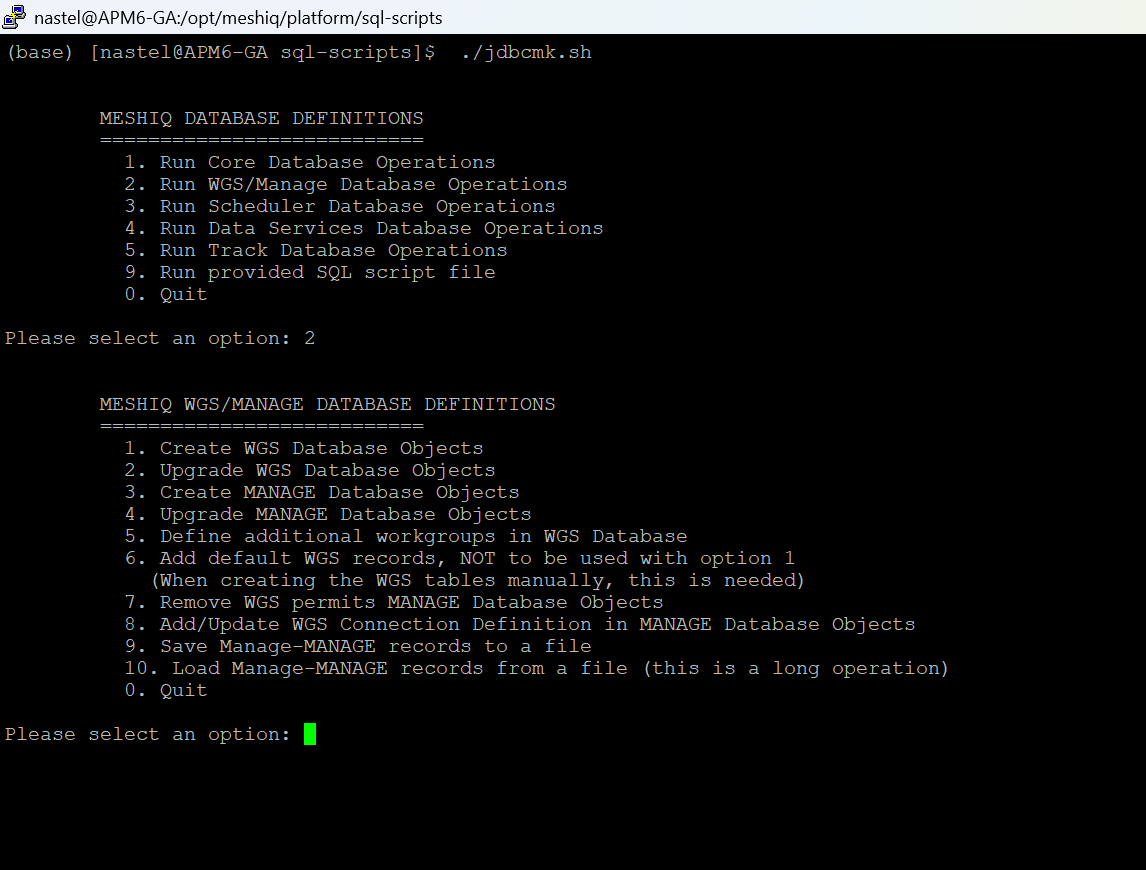

Run the jdbcmk utility:
1. From your shell run: ./jdbcmk.sh
2. From the jdbcmk main menu, select Option 2.
3. Then select Option 4 from WGS/MANAGE DATABASE menu, to upgrade the Manage Database Objects.
Remove Obsolete WGS Permits Objects.
After upgrading the Manage database, remove the obsolete WGS permits objects.
1. From your shell run: ./jdbcmk.sh
2. From the jdbcmk main menu, select Option 2.
3. Then select Option 7 from WGS/MANAGE DATABASE menu, to remove the obsolete WGS permits objects from the Manage database.

Migrate the Core Permits Database

The Core Permits database is created from the legacy nastel_permv3 database.

The migration converts the legacy PERMITSV3 objects to the new CORE_PERMITS objects and then upgrades them for meshIQ 12.1.1.

Clone the legacy database (nastel_permv3).
1. If meshiq_core_perm already exists, delete it using the following command:
```
dropdb -h localhost -U postgres meshiq_core_perm
```
1. Create a new database named meshiq_core_perm by copying from the old database nastel_permv3 using the following command:
```
createdb -h localhost -U postgres \
       -T nastel_permv3 \
       meshiq_core_perm
```
Rename the Core Permits Schema.
The cloned database initially contains the nastel_permv3 schema. Rename it to meshiq_core_perm:
```
psql -h localhost -U postgres -d meshiq_core_perm \
       -c "ALTER SCHEMA nastel_permv3 RENAME TO meshiq_core_perm;"
```
Migrate legacy PERMITSV3 objects to CORE_PERMITS
Ensure that the core.properties file in [PLATFORM_HOME]/sql-scripts/core contains the correct database details before running jdbcmk.sh.

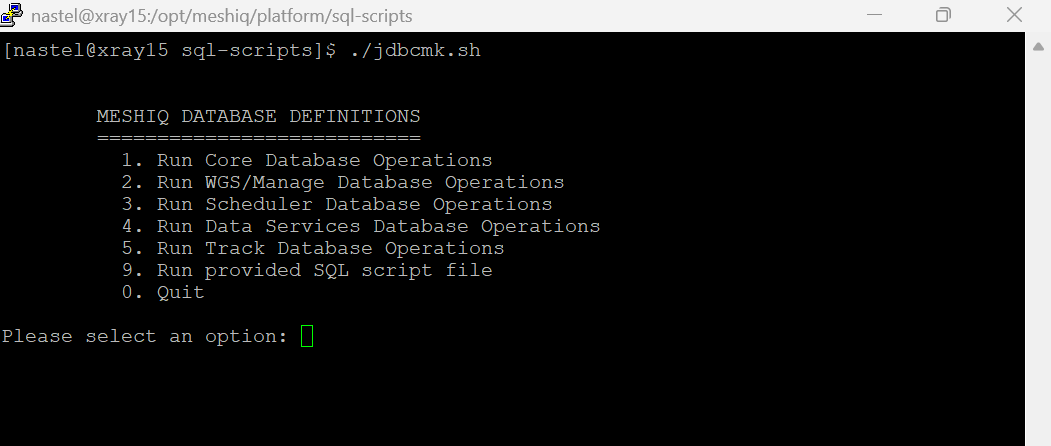

Run the jdbcmk utility:
1. From your shell run: ./jdbcmk.sh

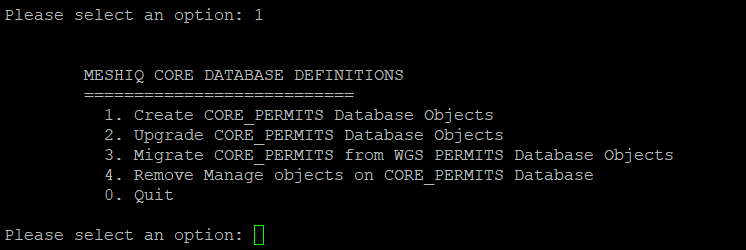

2. From the jdbcmk main menu, select Option 1.
3. Then select Option 3 from CORE DATABASE menu, to migrate the Core Permits from WGS PERMITS Database objects.
Upgrade CORE_PERMITS Database Objects.
After migrating the legacy PERMITSV3 objects to CORE_PERMITS, upgrade the Core Permits database objects.
Run the jdbcmk utility
1. From your shell run: ./jdbcmk.sh
2. From the jdbcmk main menu, select Option 1.
3. Then select Option 2 from CORE DATABASE menu, to upgrade the Core Permits Database objects.
Remove Obsolete Manage Objects.
After upgrading the Manage database, remove the obsolete WGS permits objects.
1. From your shell run: ./jdbcmk.sh
2. From the jdbcmk main menu, select Option 2.
3. Then select Option 4 from CORE DATABASE menu menu, to remove the obsolete Manage objects from the Core Permits database.

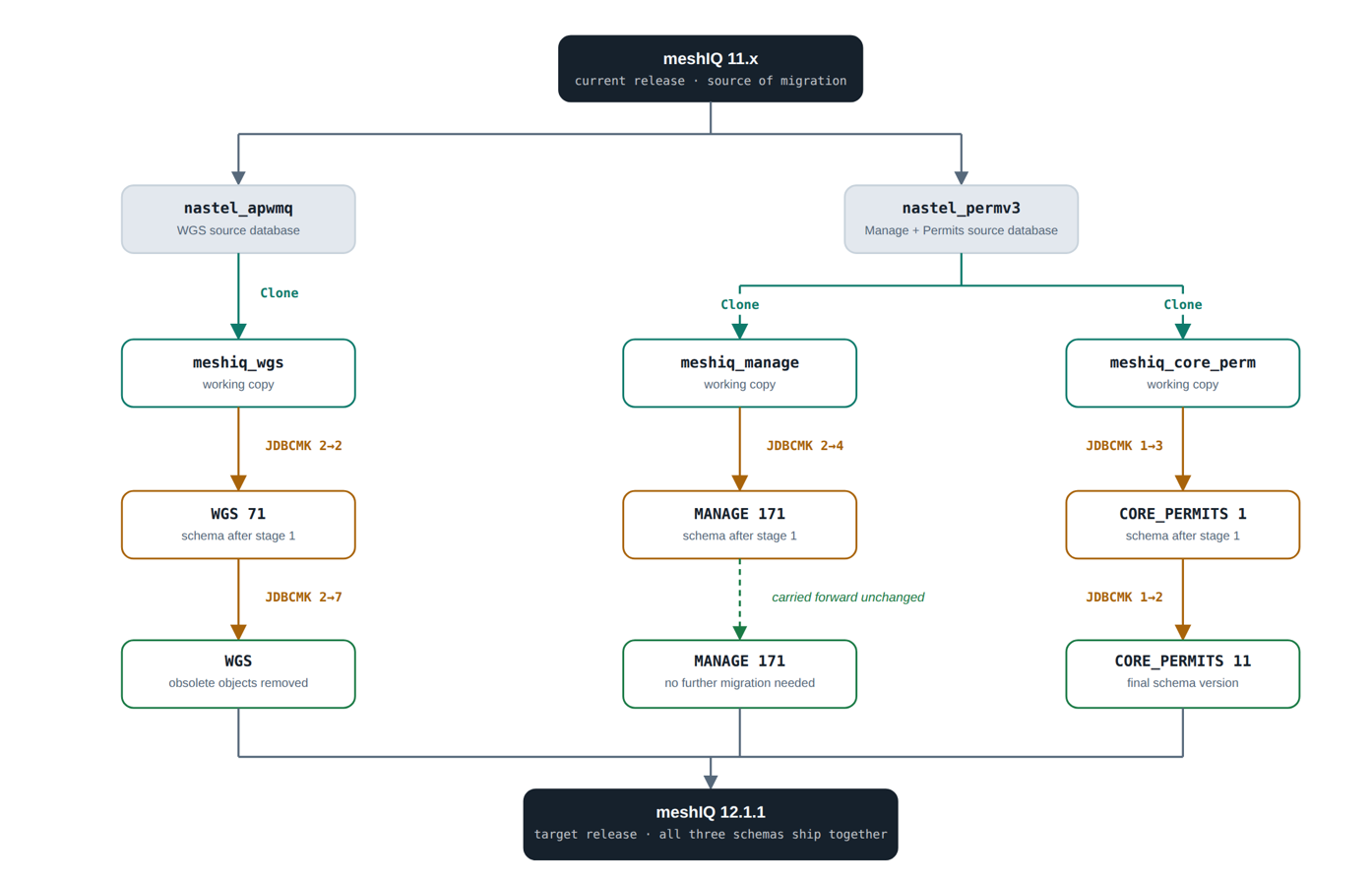

Click here to view an overview of the database migration process

Result

After completing the migration, the target databases should be available as follows:

Component	Target Database	Schema
WGS	`meshiq_wgs`	`meshiq_wgs`
Manage	`meshiq_manage`	`meshiq_manage`
Core Permits	`meshiq_core_perm`	`meshiq_core_perm`
