Some of the content described in this article is available in meshIQ Manage versions 12.1 and later.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.
Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier
Version 12.x and Later
This article describes the properties available in the Workgroup Server (WGS) Properties dialog. Use these settings to configure server identity, discovery behavior, limits, tracing, licensing, statistics, and performance options.

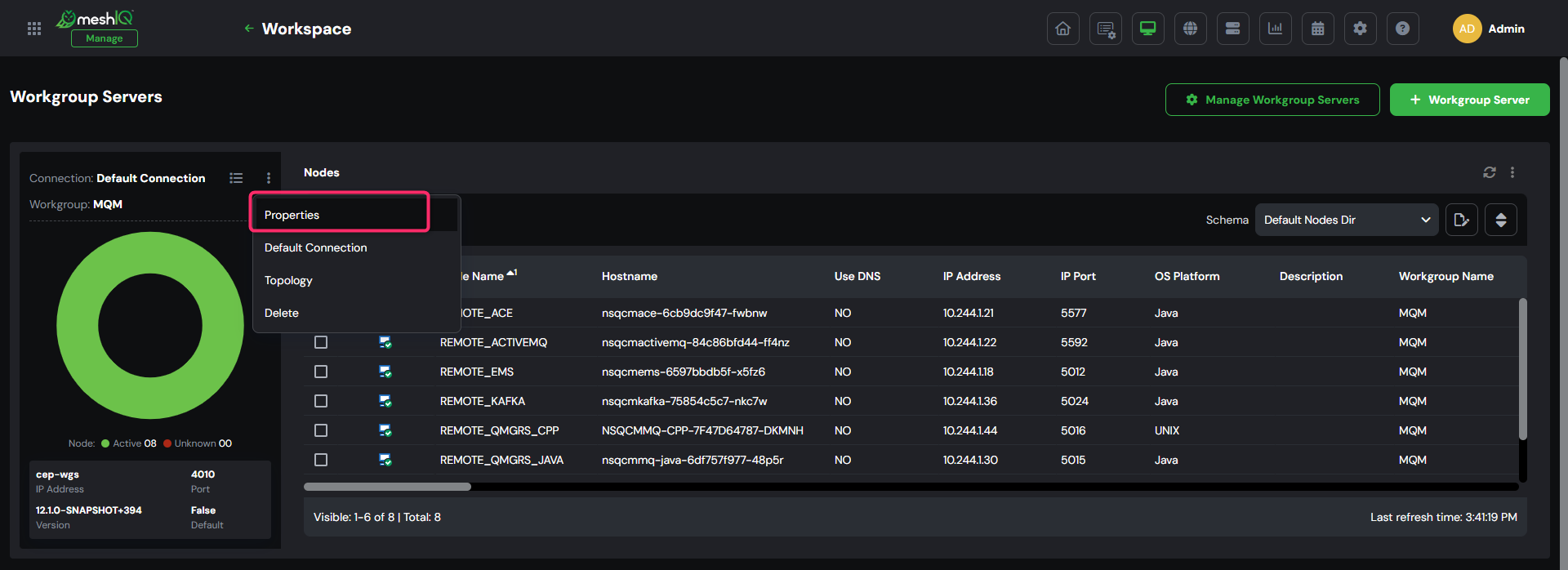

To access the WGS properties, click the Actions menu in the WGS widget, and then select Properties.

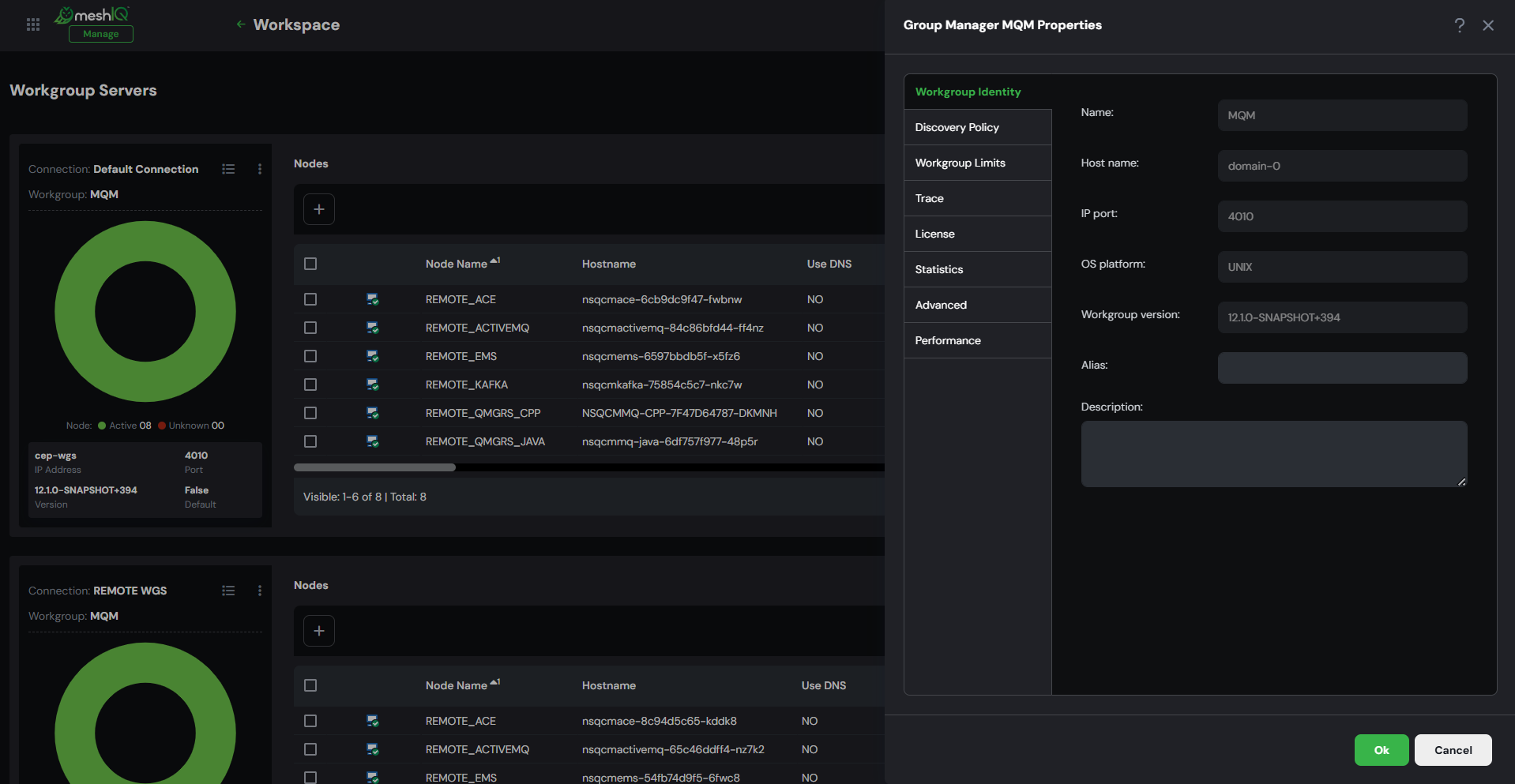

The Group Manager * Properties dialog opens. See the table below for a description of each tab and its fields.
| Field | Description |
|---|---|
| Workgroup Identity Tab | |
| Name | Specifies the name of the Workgroup Server instance. |
| Host name | Specifies the server host name where WGS runs. |
| IP port | Specifies the port used by the Workgroup Server. |
| OS platform | Displays the operating system platform. |
| Workgroup version | Displays the installed WGS version. |
| Alias | Optional alias name for the Workgroup Server. |
| Description | Optional description of the Workgroup Server instance. |
| Discovery Policy Tab | |
| IP network address | Specifies the network address used for discovery (default: 0.0.0.0). |
| M6-WMQ agent port | Specifies the port used for agent communication (default: 5010). |
| Discovery time (min.) | Specifies the delay (in minutes) before the Workgroup Server starts auto-discovery of agent/CM nodes. Only non-negative values are allowed. A value of 0 disables auto-discovery. Default: 1440 minutes. |
| Refresh interval (sec.) | Specifies how often WGS refreshes object data. Default: 60 seconds. |
| Include authority records | Includes authority records during discovery when selected. |
| Full discovery on connect | Performs a complete discovery when an agent connects. Default: ON. |
| Workgroup Limits Tab | |
| Event log size | Specifies the maximum size of the event log. |
| Accounting log size | Specifies the maximum size of the accounting log. |
| Statistics log size | Specifies the maximum size of the statistics log. |
| Audit log size | Specifies the maximum size of the audit log. |
| Client pending command limit | Specifies the maximum number of pending client commands allowed. |
| Max. number of clients | Specifies the maximum number of supported client connections (requires restart). |
| Max. number of nodes | Specifies the maximum number of managed nodes (requires restart). |
| Max. number of QMgr/node | Specifies the maximum queue managers allowed per node (requires restart). |
| Message browse limit | Specifies the maximum number of messages that can be browsed. |
| Trace Tab | |
| Enable PCF trace (-t) | Enables PCF command tracing. |
| Communication trace (-tc) | Enables communication-level tracing. |
| Authorization trace (-tu) | Enables authorization tracing. |
| Login Authentication trace (-ta) | Enables login authentication tracing. |
| Licensing trace (-tl) | Enables license-related tracing. |
| Connection trace (-tn) | Enables connection tracing. |
| Database trace (-ts) | Enables database interaction tracing. |
| Generate trace events | Generates trace events for analysis. |
|
License Tab The fields in this tab are read-only and cannot be modified in the UI. | |
| CPU used / Available | Displays licensed CPU usage. |
| MIPS used / Available | Displays licensed MIPS usage. |
| Users connected / Available | Displays active and available user licenses. |
| Agentless connections | Displays usage of agentless connections. |
| APODWMQ Users | Displays APODWMQ user usage. |
| Expiration date | Displays license expiration date. |
| Time remaining | Displays remaining license duration. |
| Features | Lists enabled license features. |
| Workgroup hosts | Lists licensed Workgroup hosts. |
|
Statistics Tab The fields in this tab are read-only and cannot be modified in the UI. | |
| State | Displays WGS state (Active/Inactive). |
| Process id | Displays the WGS process ID. |
| Authorization | Indicates whether authorization is enabled. |
| Start Time | Displays the WGS start time. |
| Client connections | Displays the number of client connections. |
| Agent connections | Displays the number of agent connections. |
| Max. supported connections | Displays maximum supported connections. |
| Last event time | Displays timestamp of the last recorded event. |
| Time since last update | Displays time since last update. |
| Time left until next discovery | Displays countdown until next discovery cycle. |
| Last action | Displays the last executed administrative action. |
| Database server info | Displays database type and driver version. |
| System information | Displays OS and JVM information. |
|
Advanced The fields in this tab are read-only and cannot be modified in the UI. | |
| Keep alive | Sends periodic keepalive probes to detect unreachable peers. |
| Reuse address | Allows socket reuse when the port is in TIME_WAIT state. |
| TCP no delay | Disables Nagle algorithm for improved send performance. |
| Buffer size (KB) | Specifies per-socket buffer space. |
________________________________________________________________________________________________________________
Version 11.3 and Earlier
This article describes the properties available in the Workgroup Server (WGS) Properties dialog. Use these settings to configure server identity, discovery behavior, limits, tracing, licensing, statistics, and performance options.

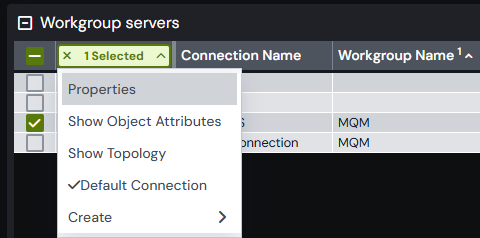

To view the WGS properties, select the required WGS.

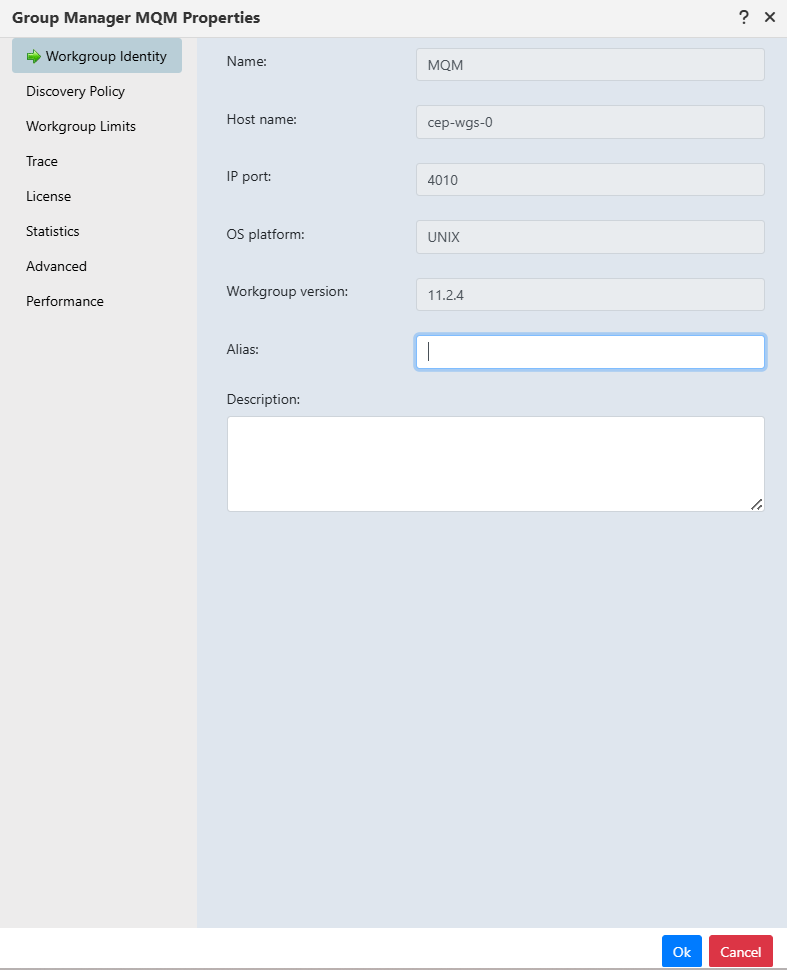

From the Selected menu, click Properties. The Group Manager * Properties dialog opens. See the table below for a description of each tab and its fields.
| Field | Description |
|---|---|
| Workgroup Identity Tab | |
| Name | Specifies the name of the Workgroup Server instance. |
| Host name | Specifies the server host name where WGS runs. |
| IP port | Specifies the port used by the Workgroup Server. |
| OS platform | Displays the operating system platform. |
| Workgroup version | Displays the installed WGS version. |
| Alias | Optional alias name for the Workgroup Server. |
| Description | Optional description of the Workgroup Server instance. |
| Discovery Policy Tab | |
| IP network address | Specifies the network address used for discovery (default: 0.0.0.0). |
| M6-WMQ agent port | Specifies the port used for agent communication (default: 5010). |
| Discovery time (min.) | Specifies the delay (in minutes) before the Workgroup Server starts auto-discovery of agent/CM nodes. Only non-negative values are allowed. A value of 0 disables auto-discovery. Default: 1440 minutes. |
| Refresh interval (sec.) | Specifies how often WGS refreshes object data. Default: 60 seconds. |
| Include authority records | Includes authority records during discovery when selected. |
| Full discovery on connect | Performs a complete discovery when an agent connects. Default: ON. |
| Workgroup Limits Tab | |
| Event log size | Specifies the maximum size of the event log. |
| Accounting log size | Specifies the maximum size of the accounting log. |
| Statistics log size | Specifies the maximum size of the statistics log. |
| Audit log size | Specifies the maximum size of the audit log. |
| Client pending command limit | Specifies the maximum number of pending client commands allowed. |
| Max. number of clients | Specifies the maximum number of supported client connections (requires restart). |
| Max. number of nodes | Specifies the maximum number of managed nodes (requires restart). |
| Max. number of QMgr/node | Specifies the maximum queue managers allowed per node (requires restart). |
| Message browse limit | Specifies the maximum number of messages that can be browsed. |
| Trace Tab | |
| Enable PCF trace (-t) | Enables PCF command tracing. |
| Communication trace (-tc) | Enables communication-level tracing. |
| Authorization trace (-tu) | Enables authorization tracing. |
| Login Authentication trace (-ta) | Enables login authentication tracing. |
| Licensing trace (-tl) | Enables license-related tracing. |
| Connection trace (-tn) | Enables connection tracing. |
| Database trace (-ts) | Enables database interaction tracing. |
| Generate trace events | Generates trace events for analysis. |
|
License Tab The fields in this tab are read-only and cannot be modified in the UI. | |
| CPU used / Available | Displays licensed CPU usage. |
| MIPS used / Available | Displays licensed MIPS usage. |
| Users connected / Available | Displays active and available user licenses. |
| Agentless connections | Displays usage of agentless connections. |
| APODWMQ Users | Displays APODWMQ user usage. |
| Expiration date | Displays license expiration date. |
| Time remaining | Displays remaining license duration. |
| Features | Lists enabled license features. |
| Workgroup hosts | Lists licensed Workgroup hosts. |
|
Statistics Tab The fields in this tab are read-only and cannot be modified in the UI. | |
| State | Displays WGS state (Active/Inactive). |
| Process id | Displays the WGS process ID. |
| Authorization | Indicates whether authorization is enabled. |
| Start Time | Displays the WGS start time. |
| Client connections | Displays the number of client connections. |
| Agent connections | Displays the number of agent connections. |
| Max. supported connections | Displays maximum supported connections. |
| Last event time | Displays timestamp of the last recorded event. |
| Time since last update | Displays time since last update. |
| Time left until next discovery | Displays countdown until next discovery cycle. |
| Last action | Displays the last executed administrative action. |
| Database server info | Displays database type and driver version. |
| System information | Displays OS and JVM information. |
|
Advanced The fields in this tab are read-only and cannot be modified in the UI. | |
| Keep alive | Sends periodic keepalive probes to detect unreachable peers. |
| Reuse address | Allows socket reuse when the port is in TIME_WAIT state. |
| TCP no delay | Disables Nagle algorithm for improved send performance. |
| Buffer size (KB) | Specifies per-socket buffer space. |
