Exporting / importing workgroup server databases with nsqmigr – meshIQ

Use the nsqmigr utility to export/import workgroup server and node information in bulk. nsqmigr connects to the workgroup server and either inquires (exports) or updates (imports) database data to or from a .info file. You can create backups and restore workgroup server databases with this utility. See the below sections for more information.

Export (get) / create a backup

Run a command similar to the following to export workgroup server databases to a .info file. Be sure to update workgroup_name and filename accordingly.

nsqmigr -g –mworkgroup_name -ffilename.info

For a full listing of nsqmigr's command line options, enter this command: nsqmigr -?

The file is created in the following default export directory with the name specified when you ran the above command. You can override this directory by including a directory path with the -f parameter, for example, -fC:\nastel\apwmq\config\groups\NASTELWGS.info.

[APWMQ_HOME]/config/groups

Exported fields

The fields exported to the .info file are listed in the table below.

Workgroup server level	Node level	Node level	Node level
DiscoveryTime BroadcastIPNetwork BroadcastIPPortNo TraceMode Description MaxNodes MaxClients MaxQmgrs AuthRecMode MaxBrowse PortNo EvtDepth AgentTrace Authorization AcctDepth StatDepth Refresh ClntCmdLimit Uid2Upper AdtinfDepth Alias	NodeName UseDNS HostName IPAddress IPPort Platform Discovery CmdLimit Timeout HBInterval Update Manage QmgrMask LocQueMask AlQueMask RmtQueMask MdlQueMask ChlMask ProcMask NmlMask ClusQmgrMask	AuthInfoMask LsrMask SvcMask TopicMask SubMask ClntMask Description NodeType MaxWtTime TcpQLim RetryCount Uid2Upper BufferSize TcpNoDelay ReuseAddr ObjNmlsDisc NodePing DnsName QMgrLogPath QMgrLogMethod QMgrLogPri	QMgrLogSec QMgrLogFileSz QMgrLogBuffSz AgentTrace Authorization NodeOSInfo NodeCPUCount NodeMIPCount

Example file

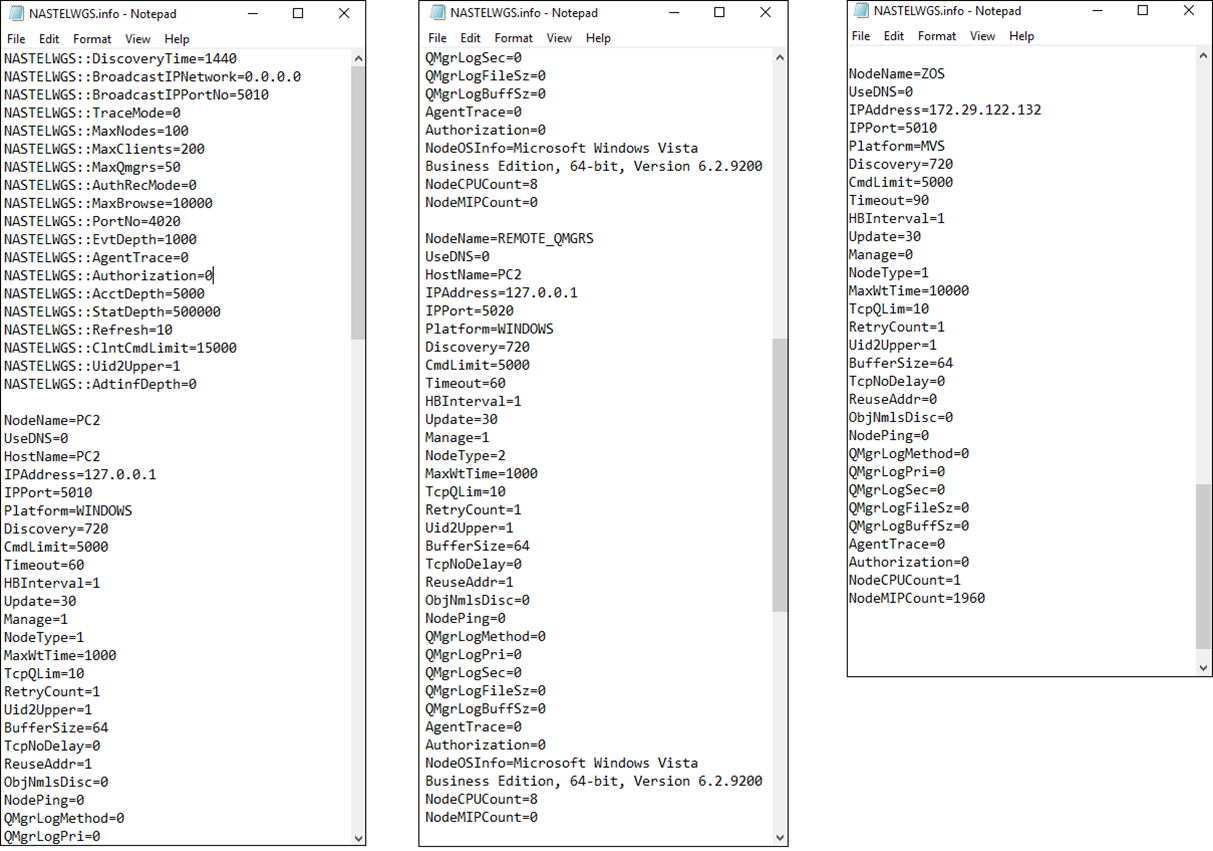

The following is an example of a .info file.

Import (put) / restore

To import workgroup server databases, you will need a .info file. See the above section, Export (get) / create a backup, to create the .info file. Update the .info file as needed and place it in the following location:

[APWMQ_HOME]/config/groups

When the workgroup server is restarted, the file will automatically load and the database will be created/updated. Please note that the .info file is deleted after it is successfully imported, but is first backed up in the following directory:

 [APWMQ_HOME]/config/groups/workgroup/history
