Some of the content described in this article is available in meshIQ Manage versions 12.1 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.
Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier
Version 12.x and Later
Bindings in RabbitMQ define how messages flow from exchanges to queues within a Virtual Host. A Virtual Host groups exchanges, queues, and bindings into a separate, logical environment. Viewing bindings at the Virtual Host level helps you understand all routing relationships that exist inside that Virtual Host.
A Virtual Host binding entry shows the source exchange, destination (queue or exchange), routing key, and any optional arguments that determine how messages are routed.
View Bindings for a Virtual Host
To view the bindings associated with a RabbitMQ Virtual Host:

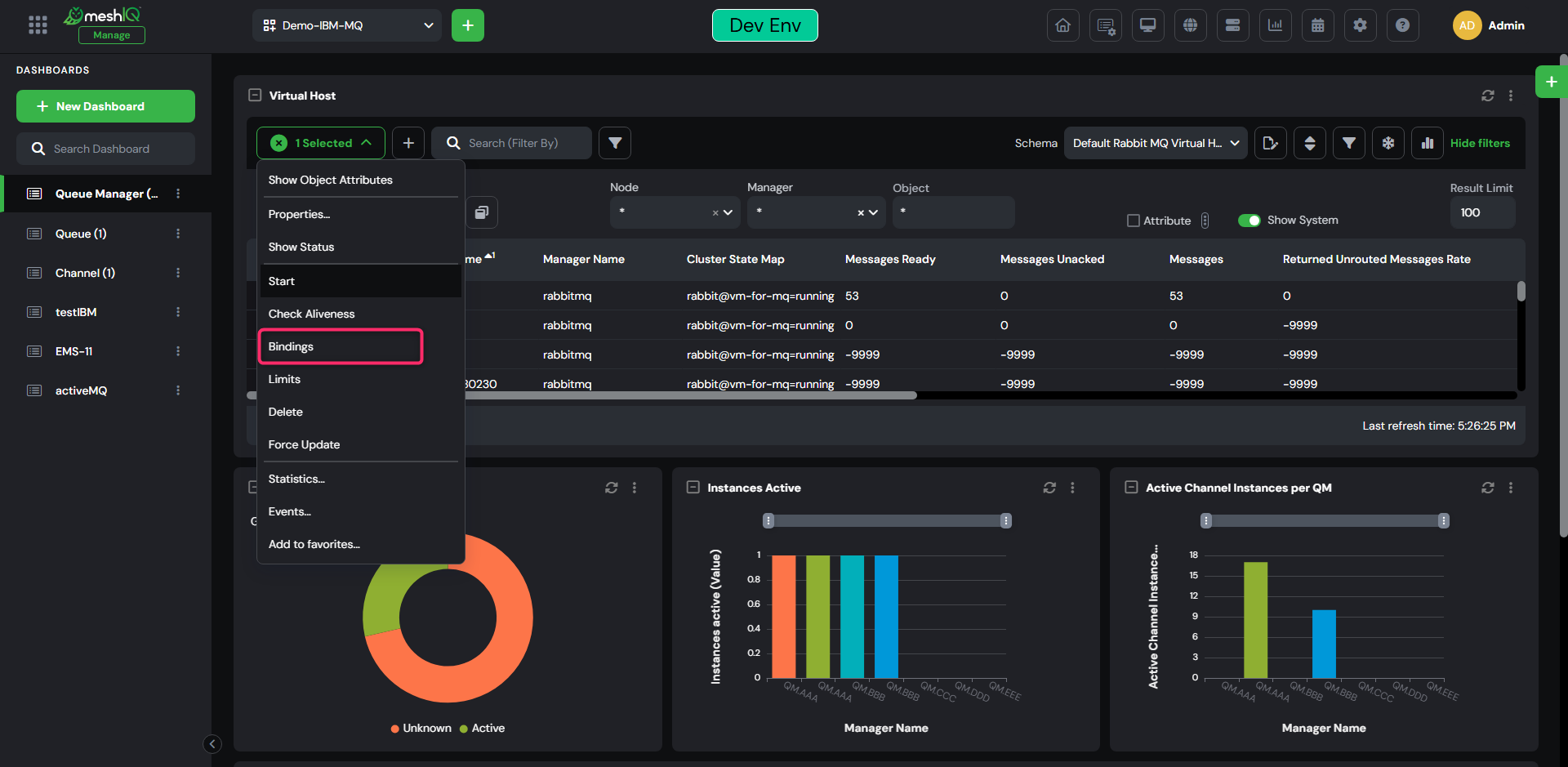

Open the Virtual Hosts widget and select the Virtual Host you want to inspect.
From the Selected menu, click Bindings.

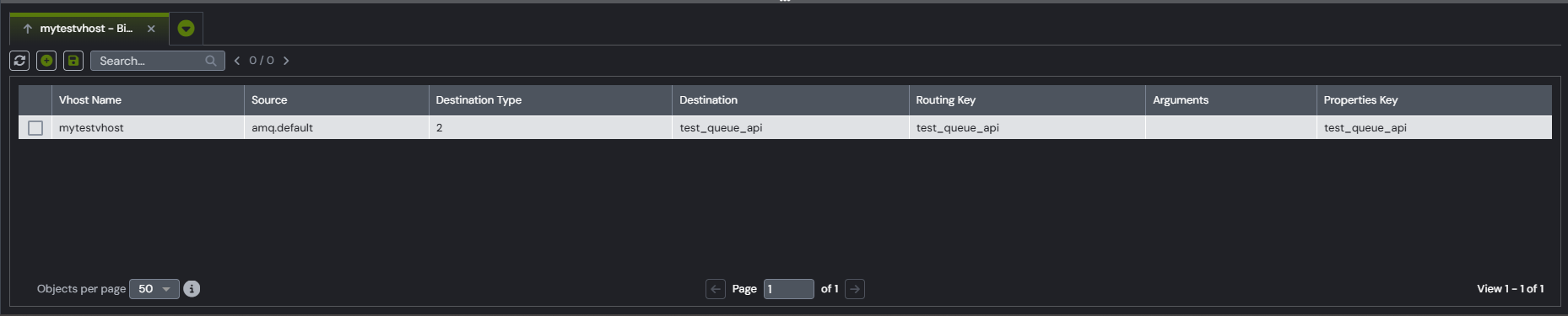

A new tab opens in the console displaying all bindings defined within the selected Virtual Host.
____________________________________________________________________________________________________________
Version 11.3 and Earlier
Bindings in RabbitMQ define how messages flow from exchanges to queues within a Virtual Host. A Virtual Host groups exchanges, queues, and bindings into a separate, logical environment. Viewing bindings at the Virtual Host level helps you understand all routing relationships that exist inside that Virtual Host.
A Virtual Host binding entry shows the source exchange, destination (queue or exchange), routing key, and any optional arguments that determine how messages are routed.
View Bindings for a Virtual Host
To view the bindings associated with a RabbitMQ Virtual Host:
Open the Virtual Hosts viewlet and select the Virtual Host you want to inspect.
From the Selected menu, click Bindings.

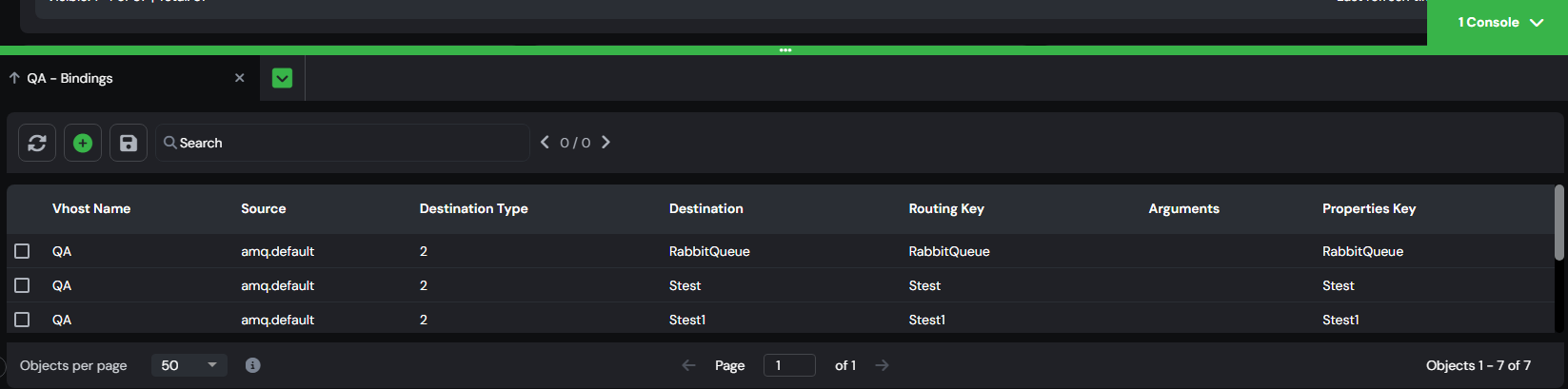

A new tab opens in the console displaying all bindings defined within the selected Virtual Host.
