The content described in this article is available in meshIQ Manage versions 11.2.4 and later.

Some of the content described in this article is available in meshIQ Manage versions 12.1 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier

Version 12.x and Later

To create an ActiveMQ queue:

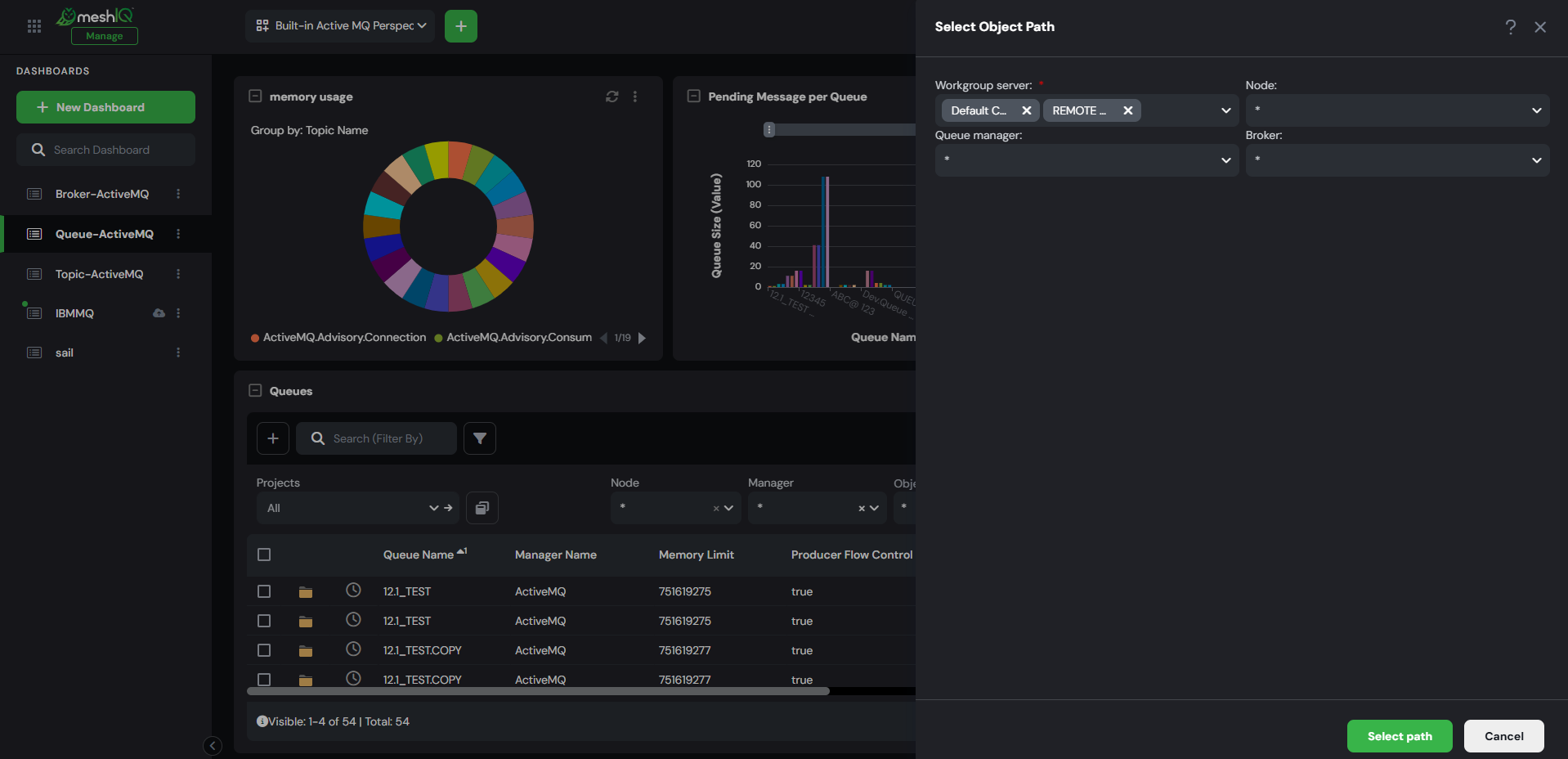

1. From a Queue widget, click Add Queue . The Select object path dialog opens.


2. Specify the following:

   • Workgroup Server

   • Node

   • Queue Manager (leave the asterisk * to create the new queue in all workgroup server nodes and queue managers)

   • Broker

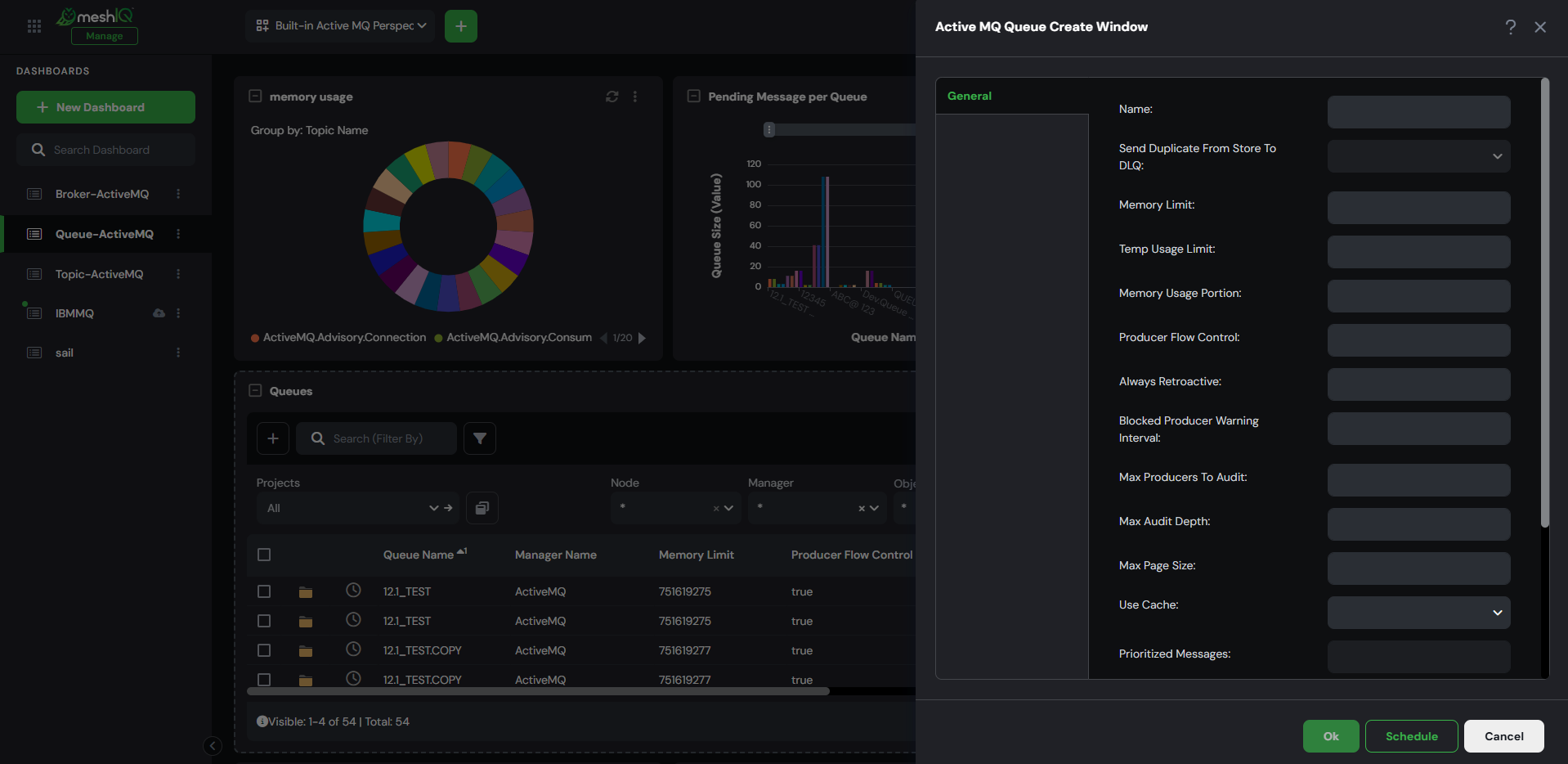

3. Click Select path. The Active MQ Queue Create Window opens.



4. Enter a queue Name (required) and specify all desired options.
5. Click Ok to create the queue now, or click Schedule to create it at a later time (see Scheduling Jobs).

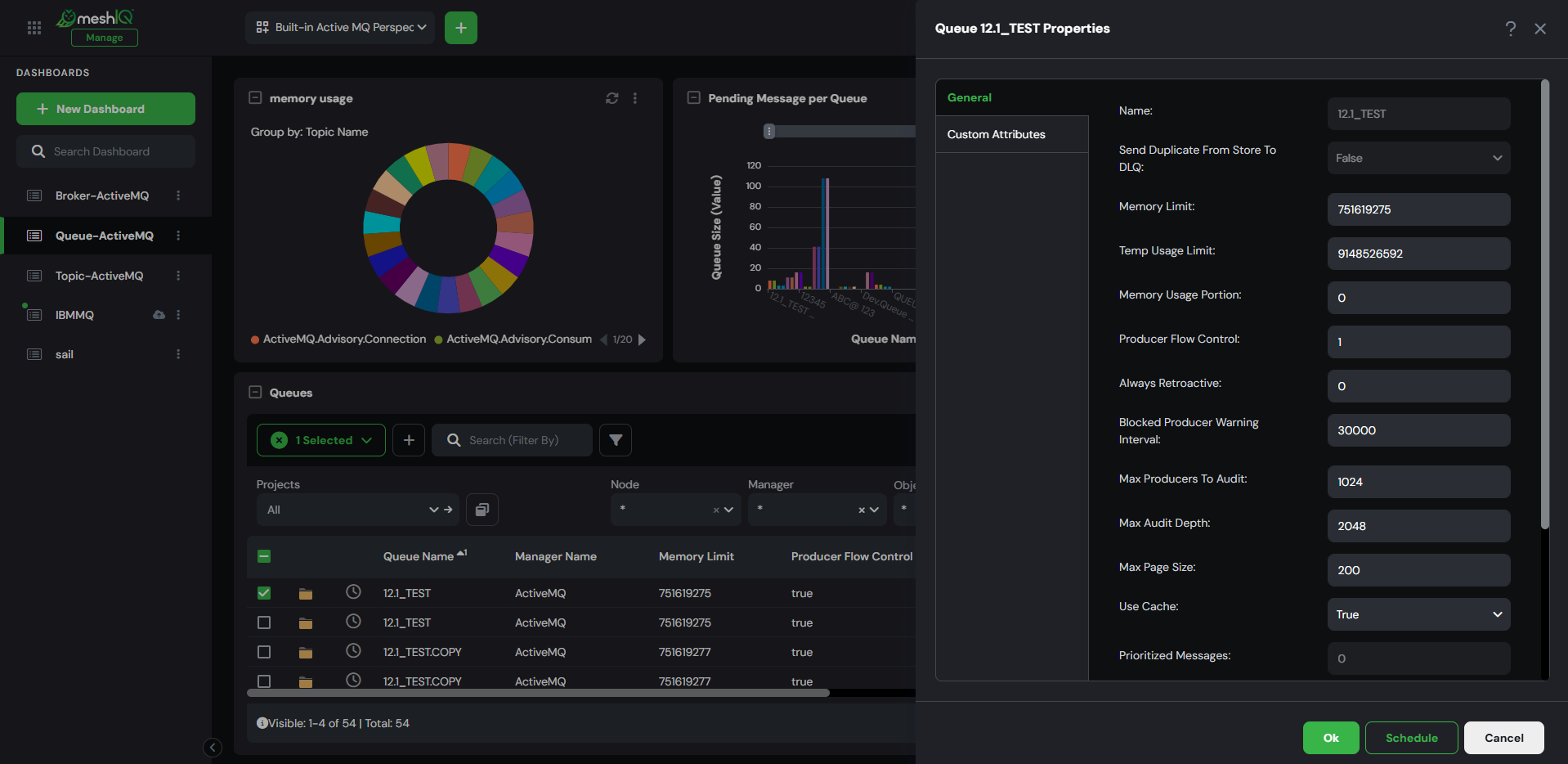

6. After creating the queue, select it and click Properties... from the Selected menu. The Queue Properties dialog opens.

7. Use the Custom Attributes tab to define your own properties


______________________________________________________________________________________________________________

Version 11.3 and Earlier

To create an ActiveMQ queue:

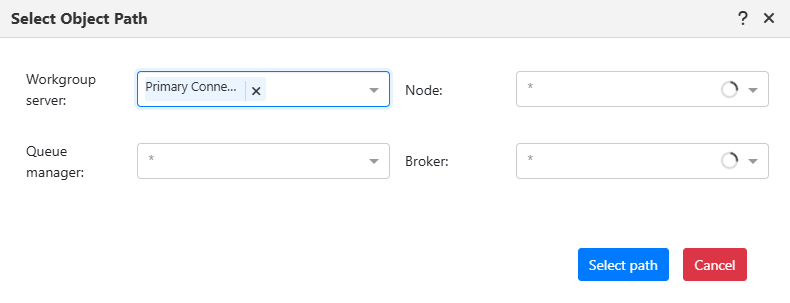

1. From a Queue viewlet, click Add Queue . The Select object path window opens.


2. Specify the following:

   • Workgroup Server

   • Node

   • Queue Manager (leave the asterisk * to create the new queue in all workgroup server nodes and queue managers)

   • Broker

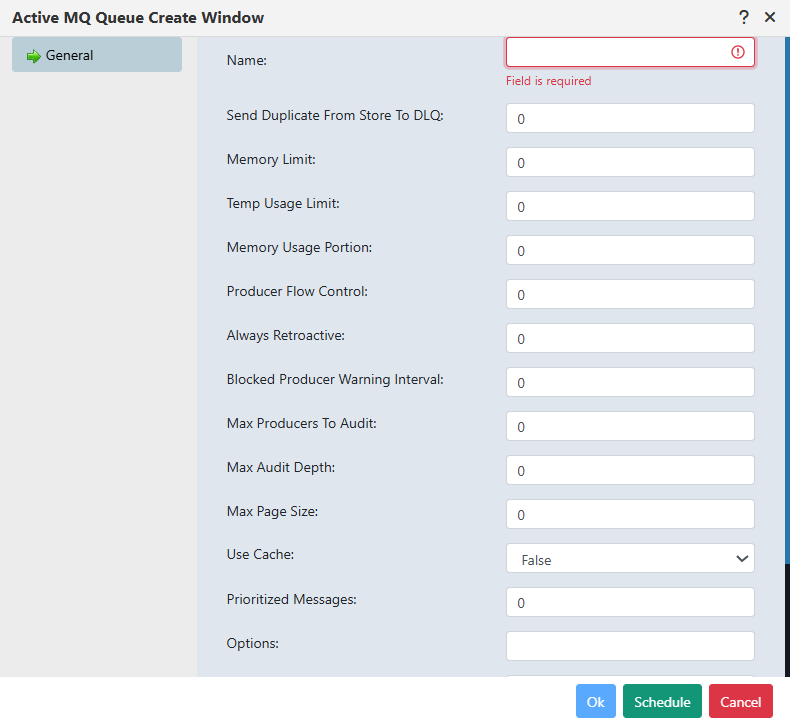

3. Click Select path. The Active MQ Queue Create Window opens.



4. Enter a queue Name (required) and specify all desired options.
5. Click Ok to create the queue now, or click Schedule to create it at a later time (see Scheduling Jobs).

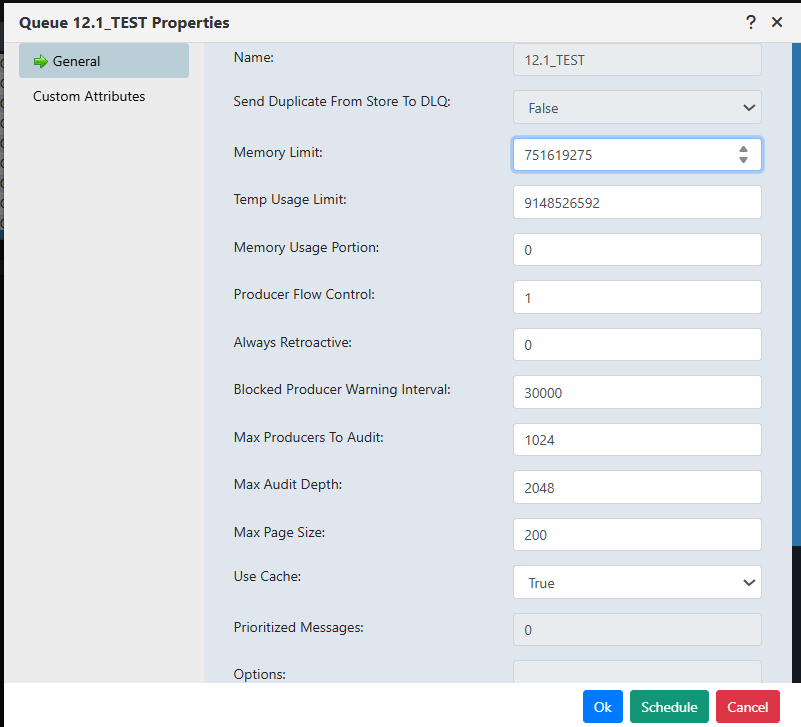

6. After creating the queue, select it and click Properties... from the Selected menu. The Queue Properties dialog opens.

7. Use the Custom Attributes tab to define your own properties.
