Some features described in this article are available starting with meshIQ Manage version 12.1 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier

Version 12.x and Later

This article will guide you through the process of creating a Solace Queue and Queue Template.

A queue on event broker acts as both, a destination to which clients can publish messages to and an endpoint, to which clients can bind consumers and consume messages from. Queues can subscribe to more than one topic and receive messages for all topics matching their subscriptions. Queues can provide exclusive access to one consumer or access to multiple consumers where each is serviced in a round‑robin fashion. Clients can have permissions to consume, delete, or modify topics in the queue.

Before creating the Solace Queue, you must establish a Solace Manager connection. To learn how, click on Create Remote Solace Manager Connection.

Create a Solace Queue

You can create a Solace Queue by following these steps:

1. Open the Solace Queue viewlet, click the Add Solace Queue button.

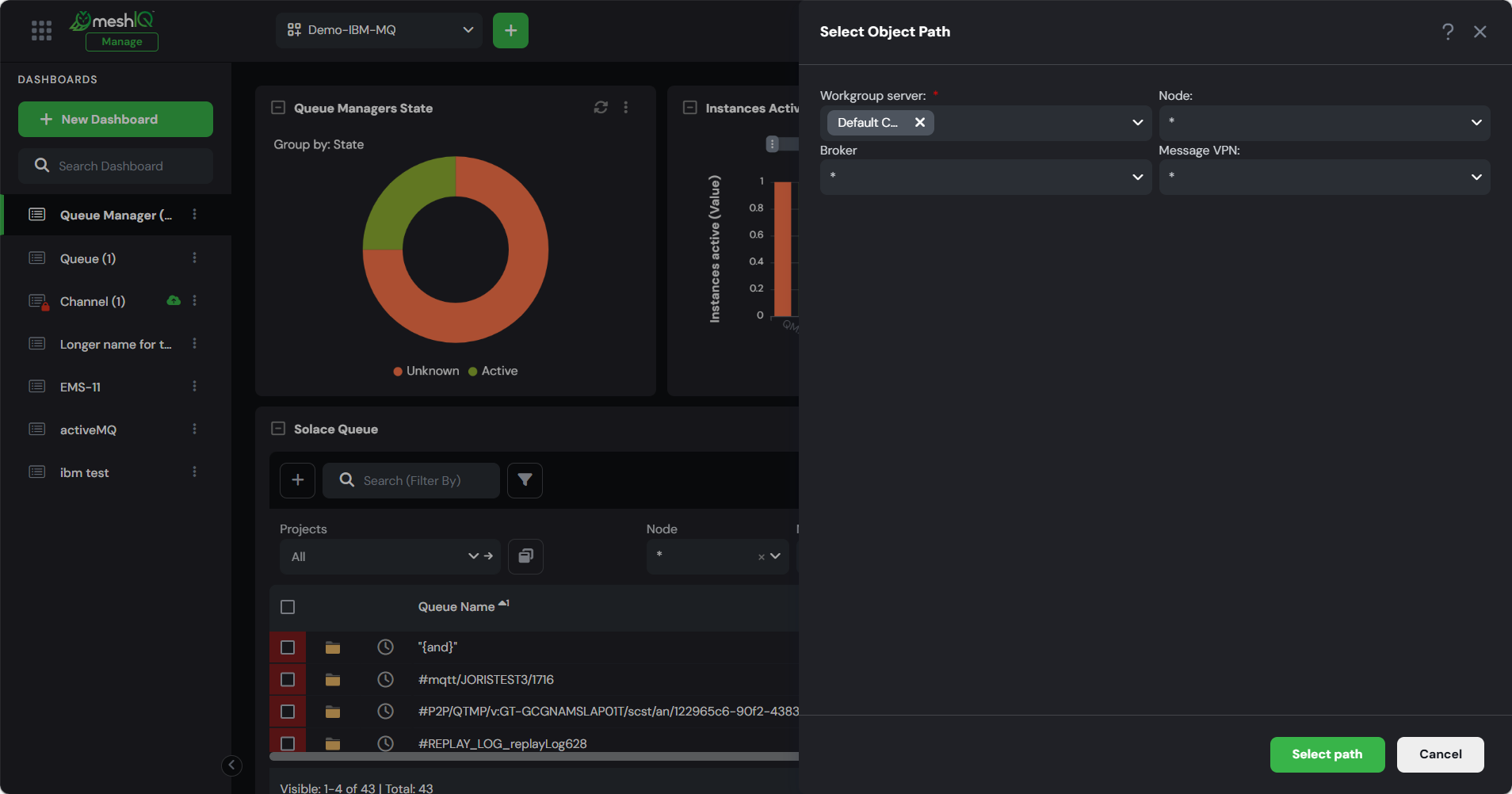

2. The Select Object Path window will opens. Specify the Workgroup server, Node, Broker, and Message VPN then click Select path.

By default, all available Workgroup servers, Nodes, Brokers, and Message VPNs are selected. If you want to limit the selection, you must explicitly choose which ones to include..

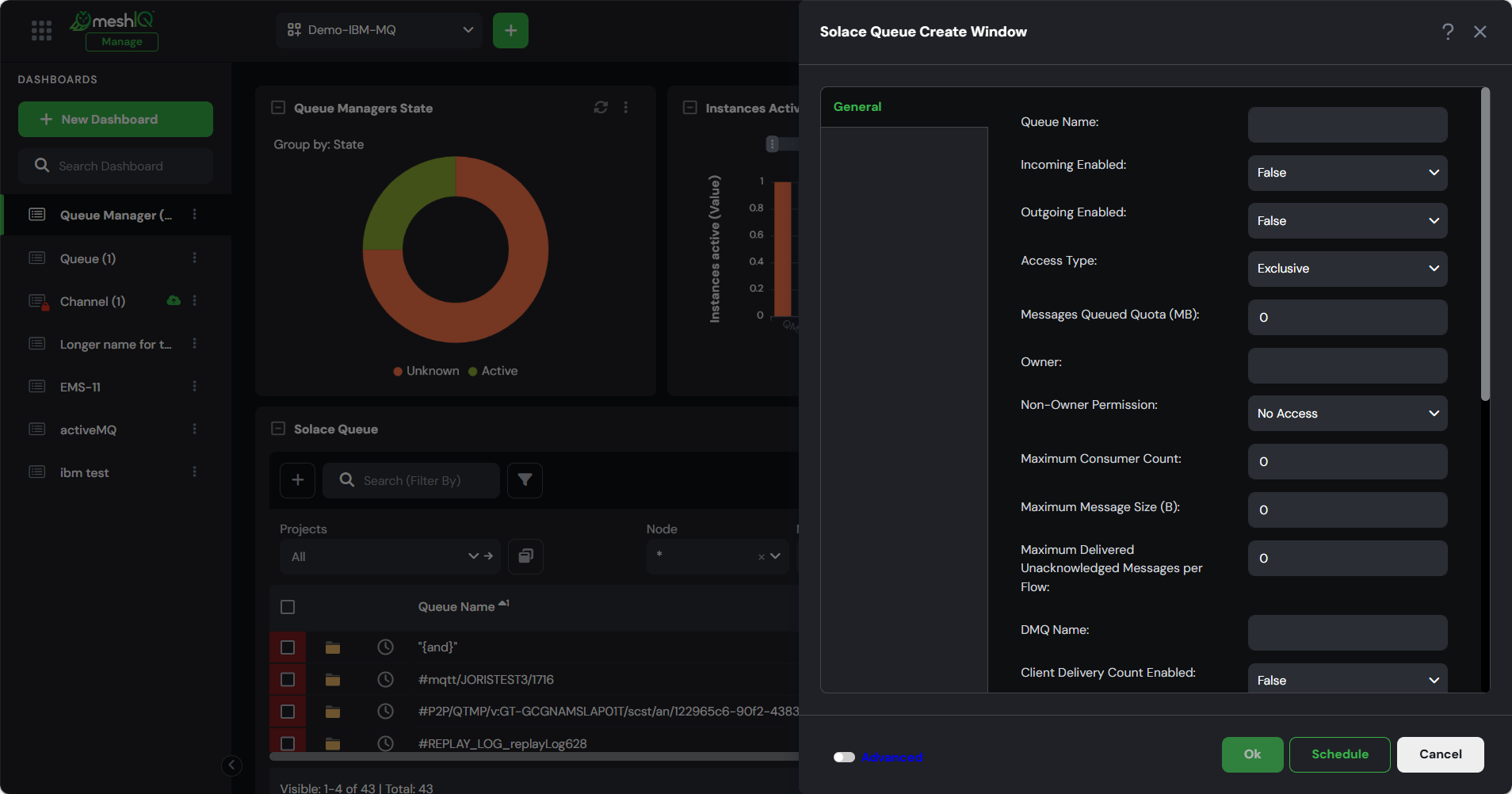

3. The Solace Queue Create Window will open. Enter the Queue Name (required) and populate other needed details.

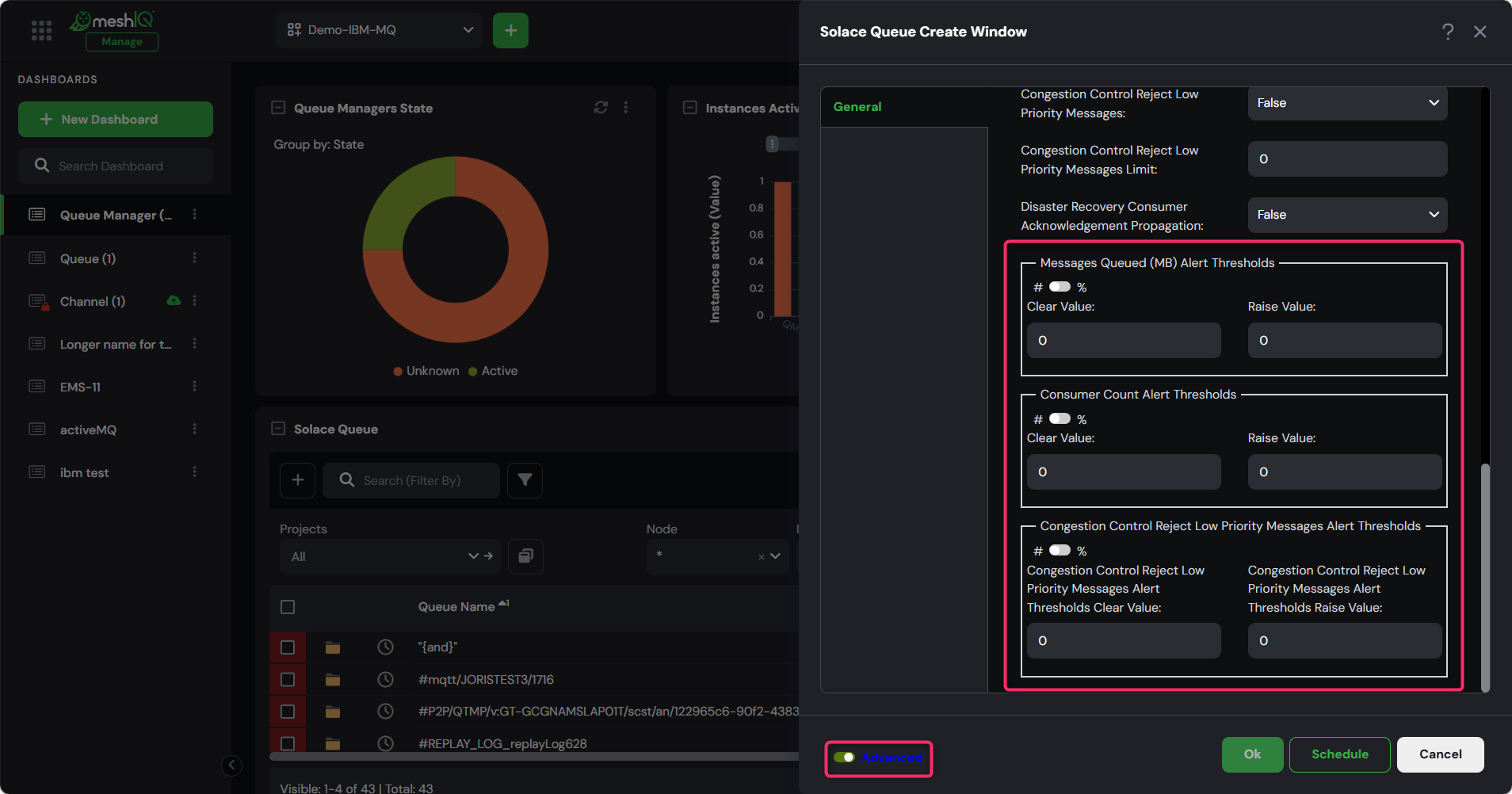

4. Click on the Advanced slide at the bottom left to view more advanced options.

5. click Ok to create the Queue immediately. Alternatively, click Schedule to create it at a future time (see Scheduling for details).
6. Now, go to the Solace Queue viewlet to see the newly added object. If you can't find it, refresh the viewlet using the Refresh icon.

Version 11.3 and Earlier

This article will guide you through the process of creating a Solace Queue.

A queue on event broker acts as both, a destination to which clients can publish messages to and an endpoint, to which clients can bind consumers and consume messages from. Queues can subscribe to more than one topic and receive messages for all topics matching their subscriptions. Queues can provide exclusive access to one consumer or access to multiple consumers where each is serviced in a round‑robin fashion. Clients can have permissions to consume, delete, or modify topics in the queue.

Before creating the Solace Queue, you must establish a Solace Manager connection. To learn how, click on Create Remote Solace Manager Connection.

Create a Solace Queue

You can create a Solace Queue by following these steps:

1. Open the Solace Queue viewlet, click the Add button .
2. The Select Object Path window will open. Specify the Workgroup server, Node, Broker, and Message VPN then click Select path.

By default, all available Workgroup servers, Nodes, Brokers, and Message VPNs are selected. If you want to limit the selection, you must explicitly choose which ones to include..

3. The Solace Queue Create Window will open. Enter the Queue Name (required) and populate other needed details.

4. Click on the Advanced slide at the bottom left to view more advanced options.

5. click Ok to create the Queue immediately. Alternatively, click Schedule to create it at a future time (see Scheduling for details).
6. Now, go to the Solace Queue viewlet to see the newly added object. If you can't find it, refresh the viewlet using the Refresh icon.
