The functionality described in this article is available in the meshIQ Platform versions 11.1.1 and later.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 11.2 and Earlier
Version 12.x and Later

Version 11.2 and Earlier

Operator policies allow operators to enforce certain policies. Their definitions are merged with regular policy definitions before the result is applied to matching queues.
Operator policies are limited to a small set of arguments. See https://www.rabbitmq.com/parameters.html#operator-policies for more information.

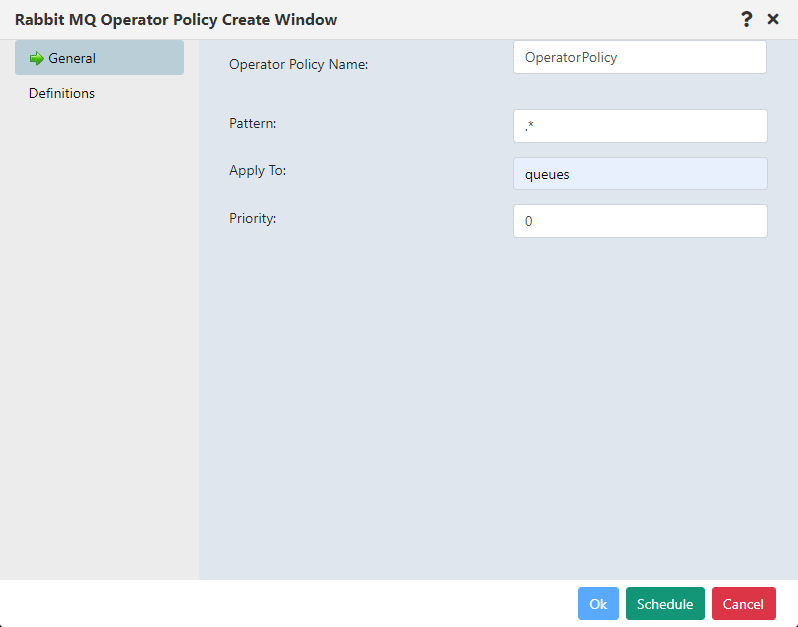

To create an operator policy, do the following:

1. Click on an operator policy viewlet.
2. Enter the Operator Policy Name.
3. In the Pattern field, enter a regular expression pattern to help match queues to this operator policy by queue name.
4. In the Apply To field, indicate the object that the operator policy applies to (for example, queues or exchanges).
5. Enter a Priority to determine the relative likelihood of this policy being applied.
6. Click OK to save the operator policy.

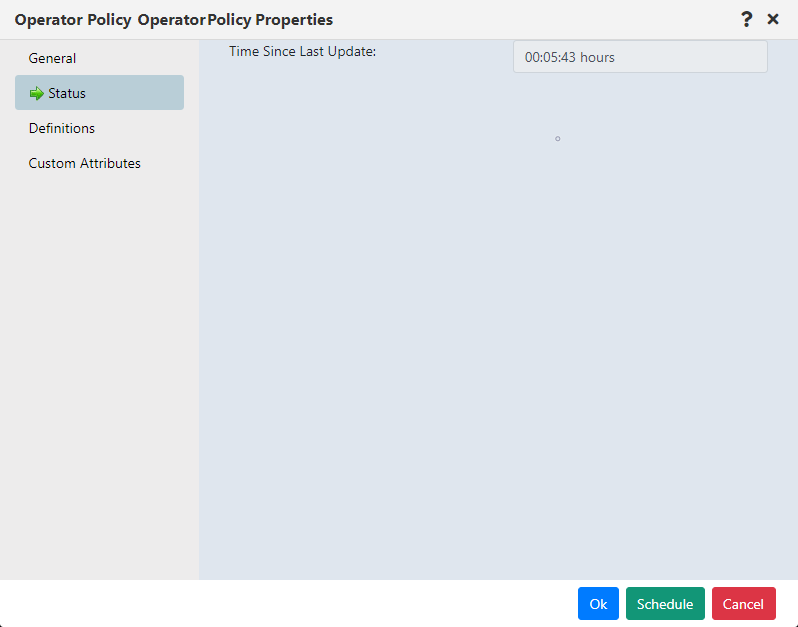

Status tab

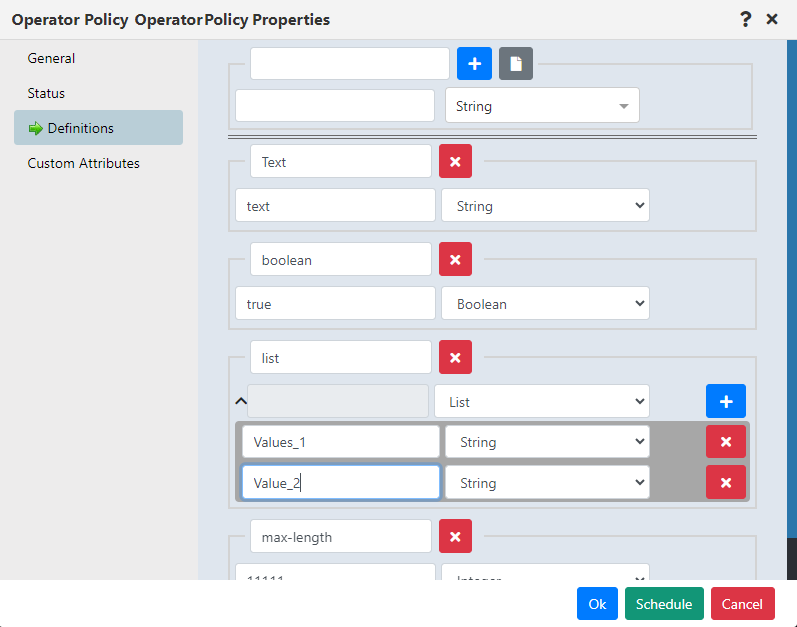

Definitions tab

The list of arguments that can be appended through operator policies is limited. See https://www.rabbitmq.com/parameters.html#operator-policies for details.

Use the fields provided to enter the argument and its value. Then select its data type from the list.

______________________________________________________________________________________________________________

Version 12.x and Later

Operator policies allow operators to enforce certain policies. Their definitions are merged with regular policy definitions before the result is applied to matching queues.
Operator policies are limited to a small set of arguments. See https://www.rabbitmq.com/parameters.html#operator-policies for more information.

Create an Operator Policy

To create an Operator Policy:

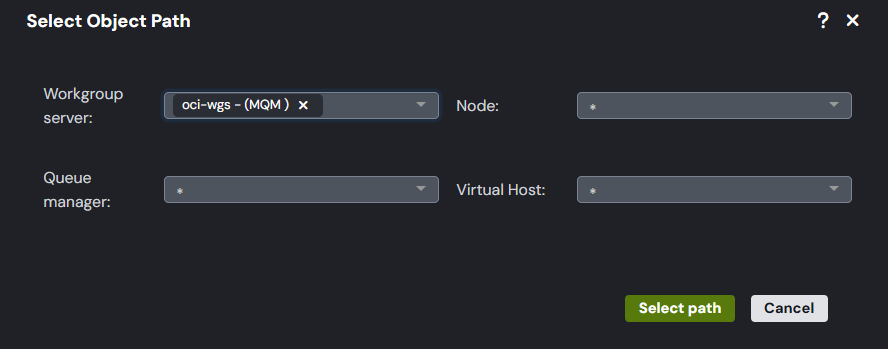

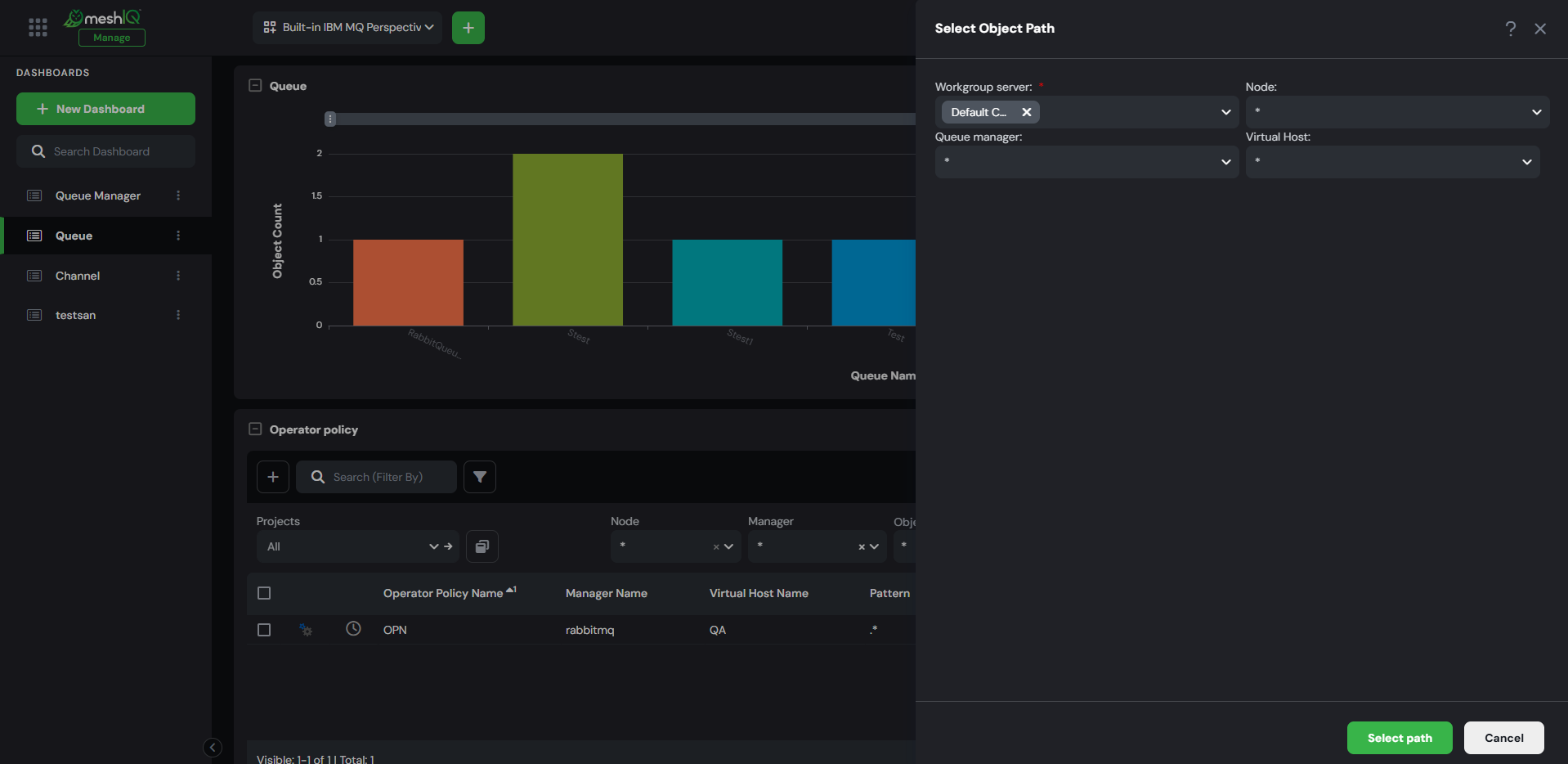

1. Click the Add Operator Policy button in the Operator Policy viewlet. The Select Object Path window opens.
2. Specify the object path for the new Operator Policy, then click Select path.

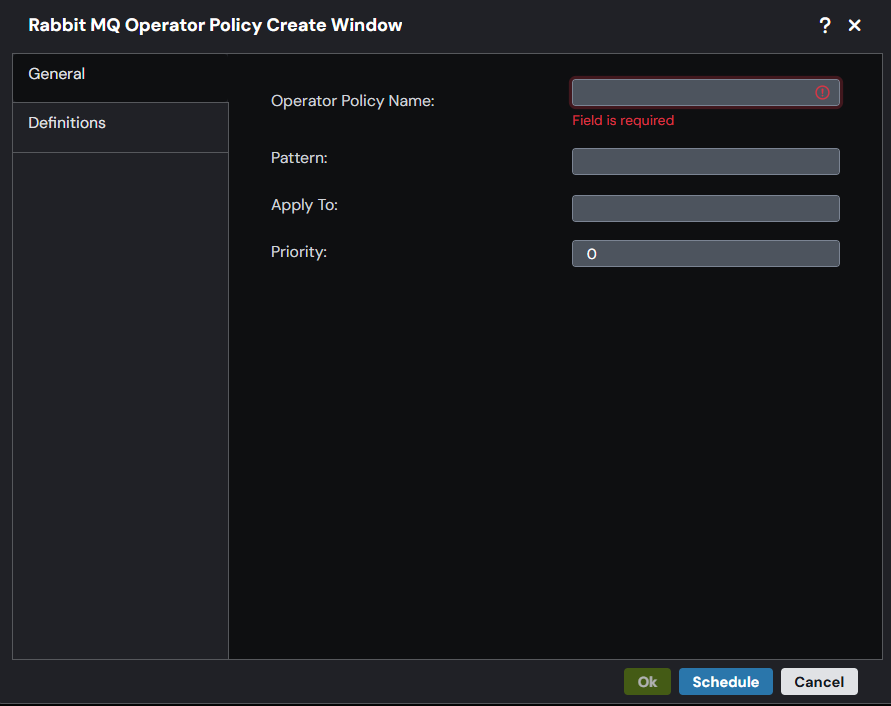

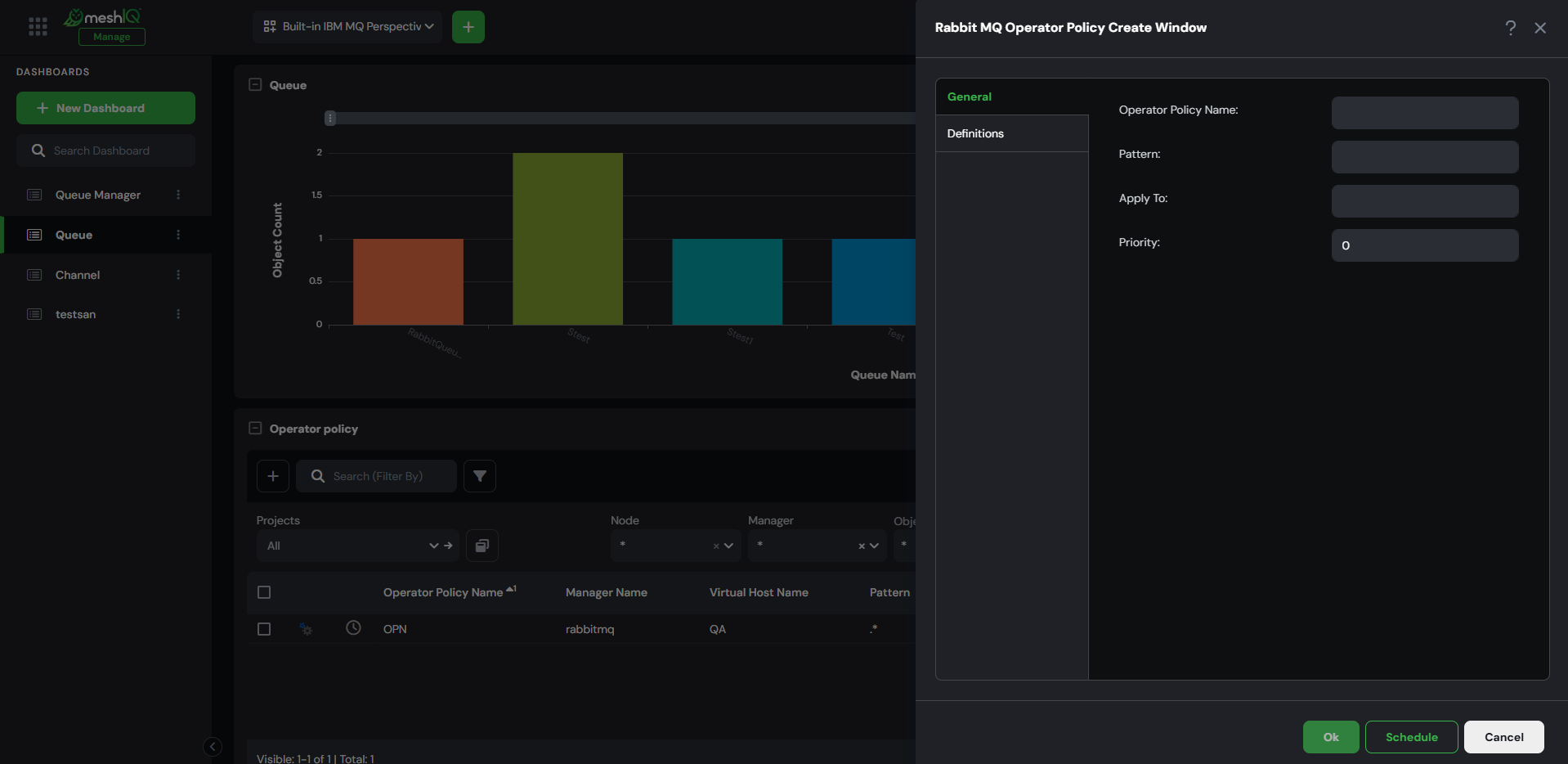

3. The RabbitMQ Operator Policy Create Window opens.

4. In General tab, enter the Operator Policy Name.
5. In the Pattern field, enter a regular expression pattern to help match queues to this operator policy by queue name.
6. In the Apply To field, indicate the object that the operator policy applies to (for example, queues or exchanges).
7. Enter a Priority to determine the relative likelihood of this policy being applied.
8. Click Ok to create the Operator Policy immediately. Alternatively, click Schedule to create it at a later time (see Scheduling for details).

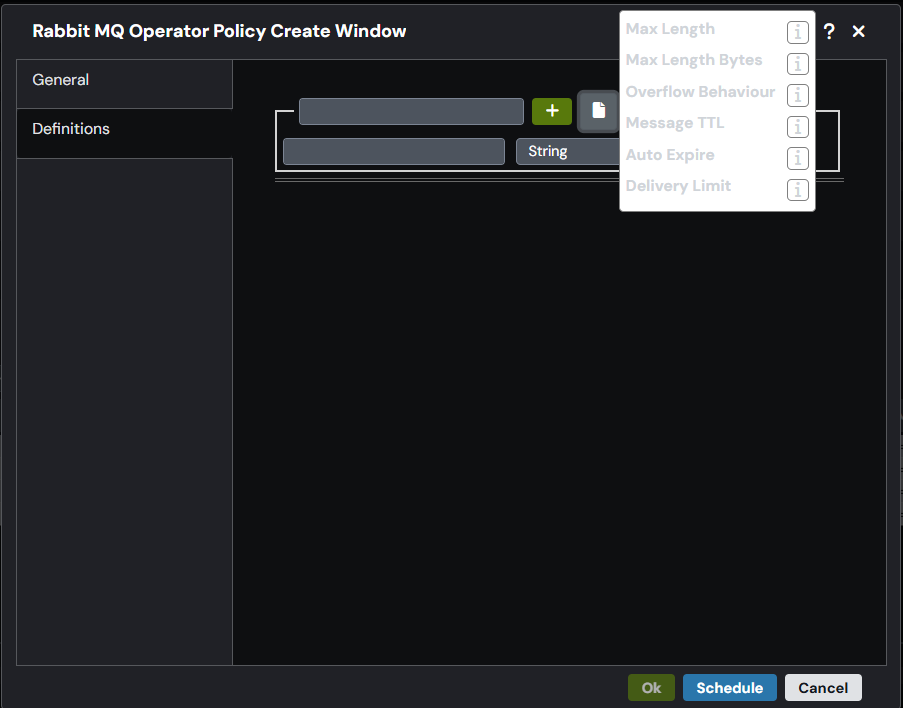

Definitions tab

The list of arguments that can be appended through operator policies is limited. See https://www.rabbitmq.com/parameters.html#operator-policies for details.

Click Definitions Description to learn how each argument behaves.

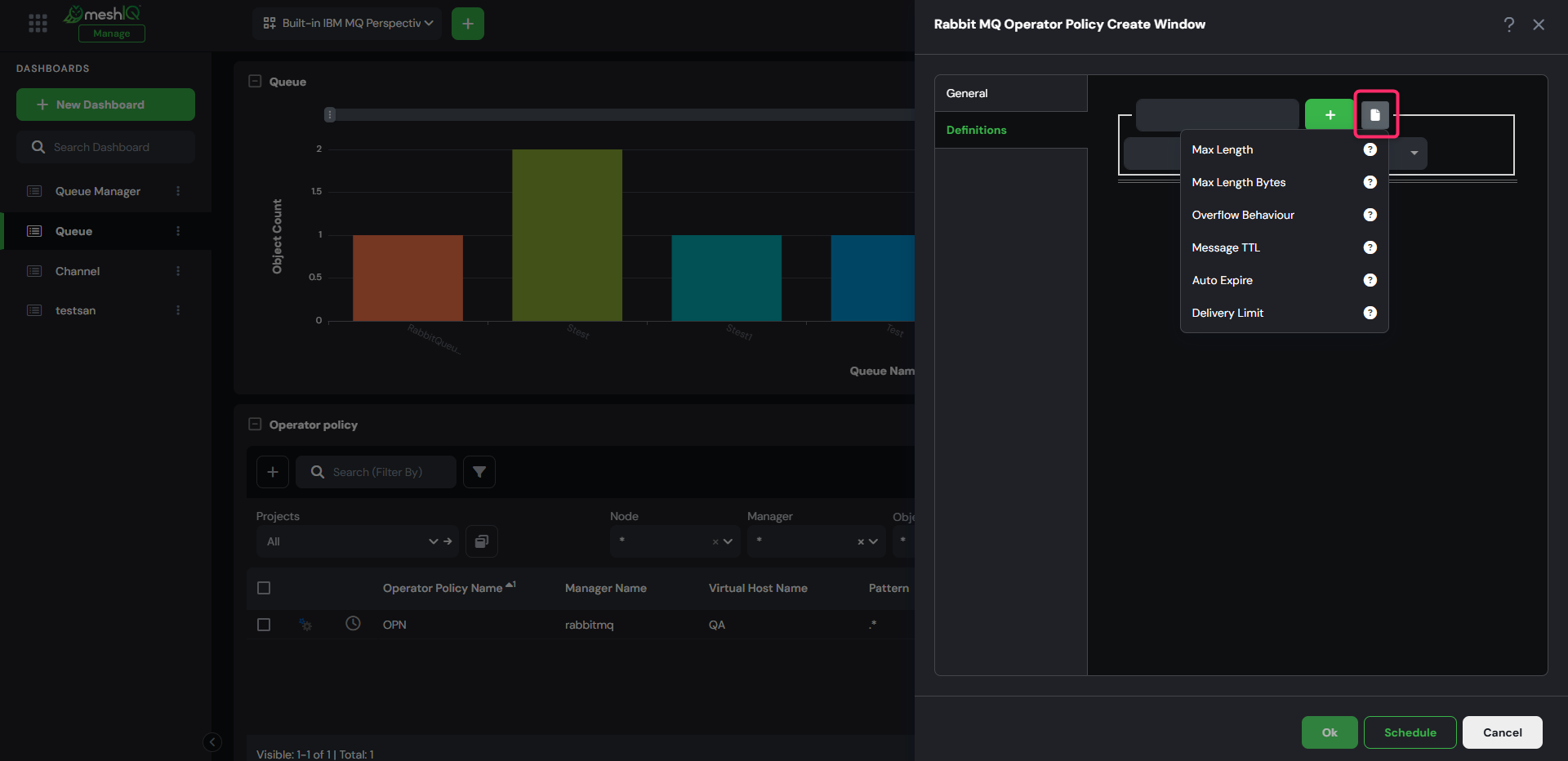

• Click the file button to view the list of available arguments.
• To see the description of a specific argument, click the Info button next to it.
• Select an argument, provide a value and data type, and then click the button to add it.
• Repeat this process to add more arguments as needed.

You can also create your own custom properties on the Custom Attributes tab in the Operator Policy Properties window.

Definitions Description
