Some features described in this article are available starting with meshIQ Manage version 12.1 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier


Version 12.x and Later

This article will guide you through the process of creating a Solace Queue Template.

Create a Solace Queue Template

Queue templates are configurable objects that administrators can use to specify custom attributes and parameters for any new client-created queues. When a client creates queues dynamically using an API, the endpoint name can be matched to the template. All custom attributes that are configured in the queue template are copied to the client-created queue.

Before creating the Solace Queue Template, you must establish a Solace Manager connection. To learn how, click on Create Remote Solace Manager Connection.

You can create a Solace Queue Template by following these steps:

1. Open the Solace Queue Template widget, click the Add Solace Queue Template button.

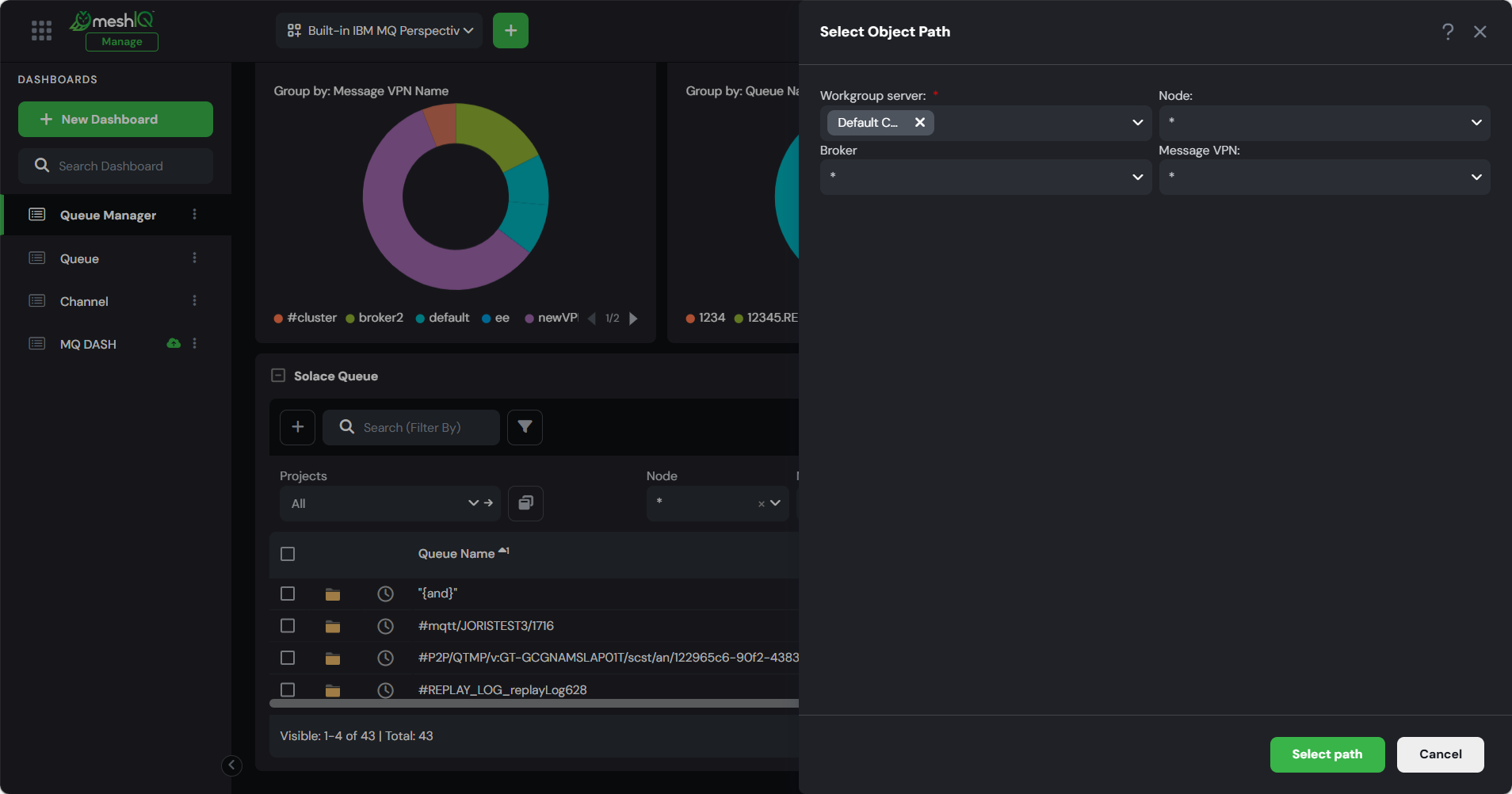

2. The Select Object Path dialog will open. Specify the Workgroup server, Node, Broker, and Message VPN then click Select path.
   If no specific selections are made, all available Workgroup servers, Nodes, Brokers and Message VPNs will be selected by default.

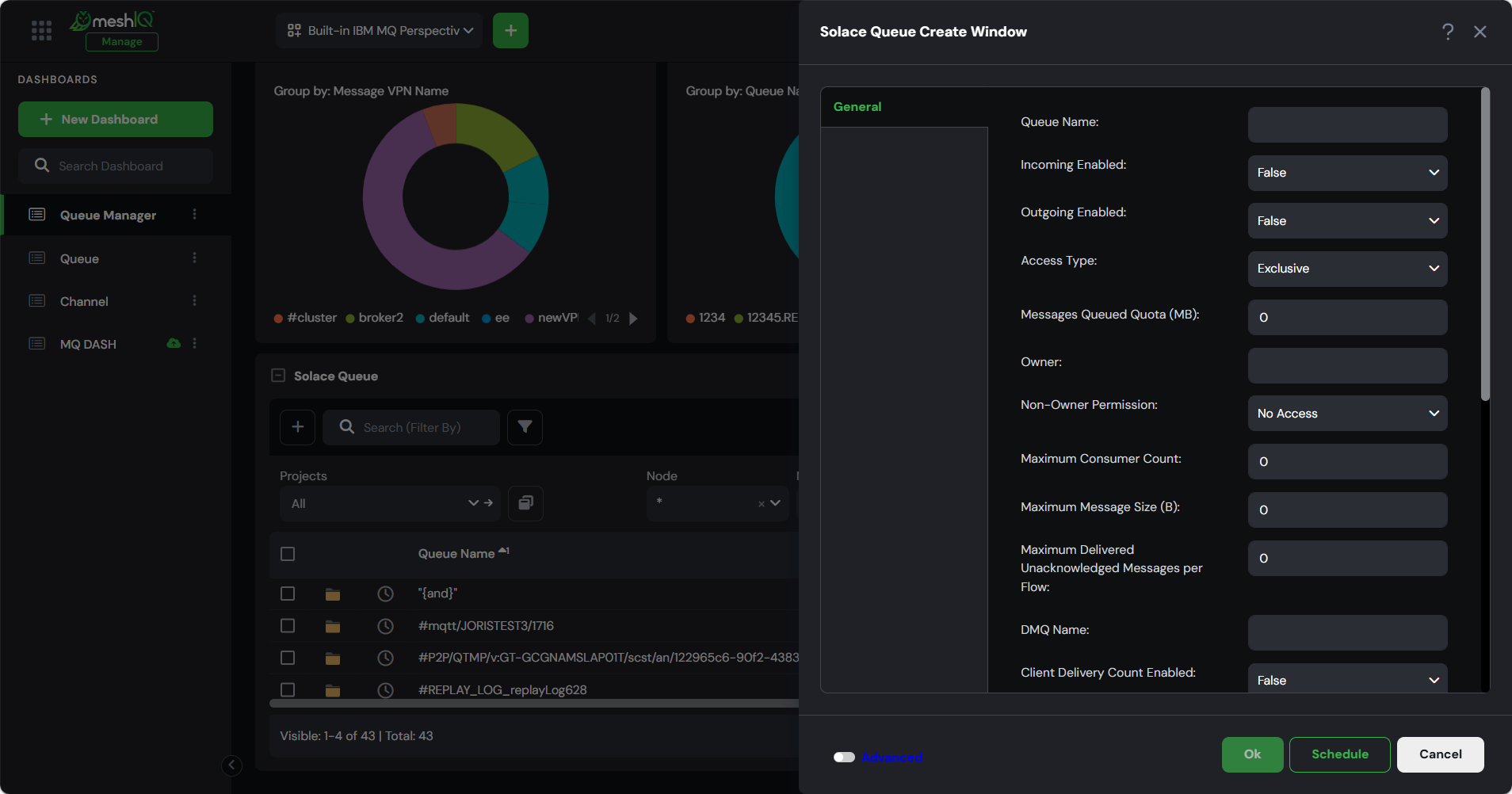

3. The Solace Queue Template Create Window will open. Enter the Queue Template Name (required) and populate other needed details.

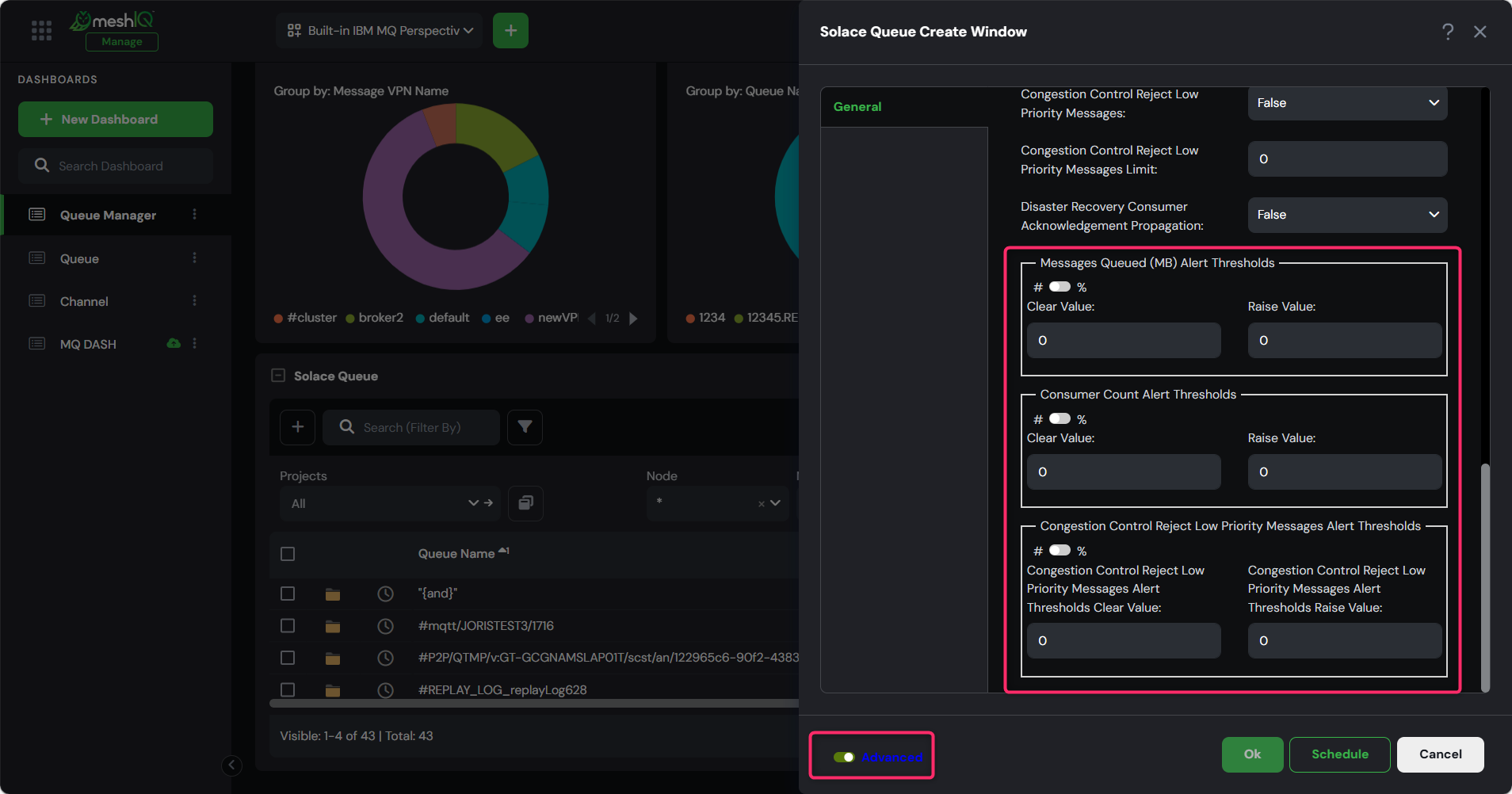

4. Click on the Advanced slide at the bottom left to view more advanced options.

5. Click Ok to create the Queue Template immediately. Alternatively, click Schedule to create it at a future time (see Scheduling for details).

6. Now, go to the Solace Queue Template widget to see the newly added object. If you can't find it, refresh the widget using the Refresh icon.

   ---

Version 11.3 and Earlier

This article will guide you through the process of creating a Solace Queue Template.

Create a Solace Queue Template

Queue templates are configurable objects that administrators can use to specify custom attributes and parameters for any new client-created queues. When a client creates queues dynamically using an API, the endpoint name can be matched to the template. All custom attributes that are configured in the queue template are copied to the client-created queue.

Before creating the Solace Queue Template, you must establish a Solace Manager connection. To learn how, click on Create Remote Solace Manager Connection.

You can create a Solace Queue Template by following these steps:

1. Open the Solace Queue Template viewlet, click the Add button .
2. The Select Object Path window will open. Specify the Workgroup server, Node, Broker, and Message VPN then click Select path.
   If no specific selections are made, all available Workgroup servers, Nodes, Brokers and Message VPNs will be selected by default.
3. The Solace Queue Template Create Window will open. Enter the Queue Template Name (required) and populate other needed details.

4. Click on the Advanced slide at the bottom left to view more advanced options.
5. Click Ok to create the Queue Template immediately. Alternatively, click Schedule to create it at a future time (see Scheduling for details).
6. Now, go to the Solace Queue Template viewlet to see the newly added object. If you can't find it, refresh the viewlet using the Refresh icon.
