Message Criteria Configuration Options

Some of the content described in this article is available in meshIQ Manage versions 12 and greater.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 11.2 and Earlier
Version 12.x and Later

Version 11.2 and Earlier

From the Message Criteria dialog, you can specify filters for message descriptor, message descriptor extension, dead letter queue header, and transmission queue header properties. You can also specify message data criteria.

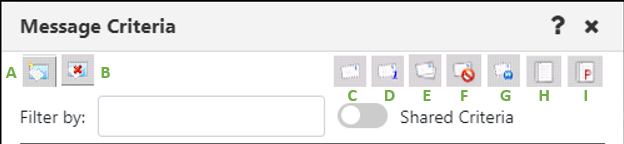

Customize the properties of any new or existing message criteria record the toolbar buttons below.


A:


Add new message criteria. See Filtering messages across viewlets with message criteria configurations.

B:




Delete selected message criteria. See Filtering messages across viewlets with message criteria configurations.

C:

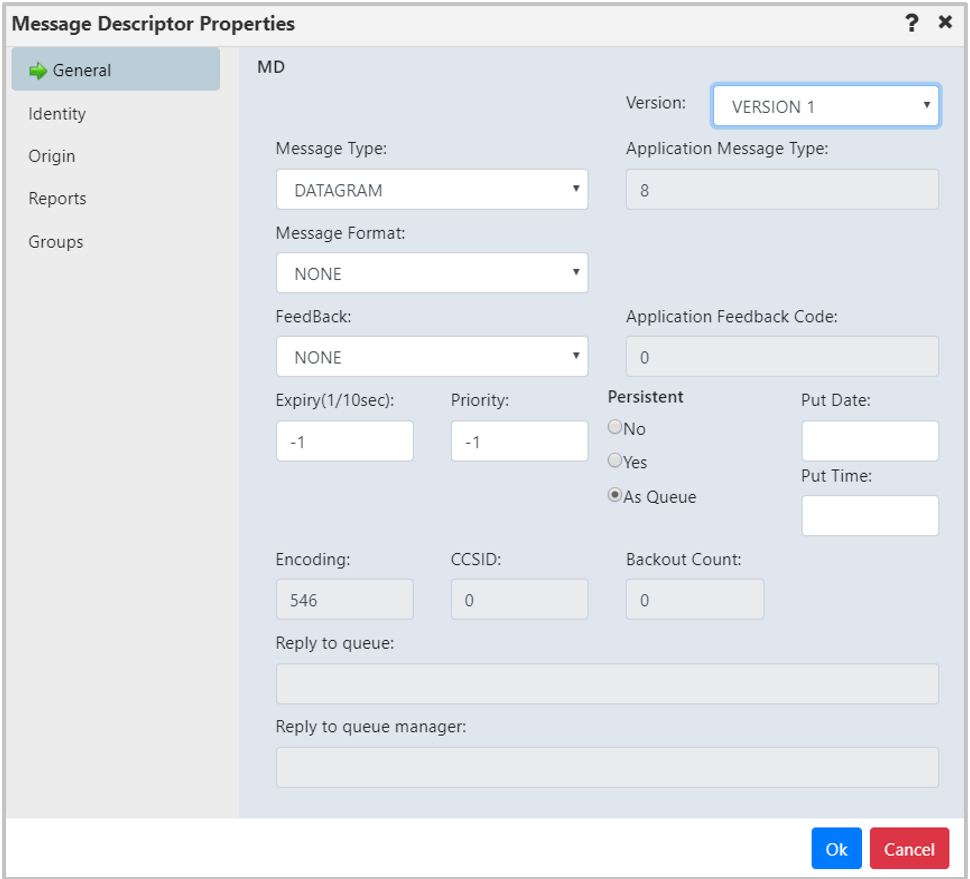

MD:  Message Descriptor properties. See Message Properties for field descriptions.


D:


MD1:  Message Descriptor 1 properties.

Opens the same windows when the MD option is clicked with the exception of the Groups tab.

E:

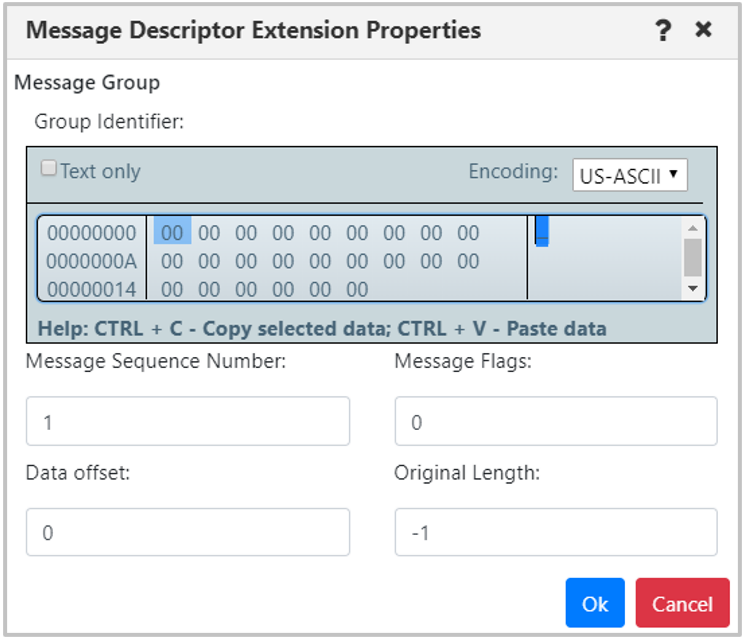

MDE:  Message Descriptor Extension properties. See Message Properties for field descriptions.


F:

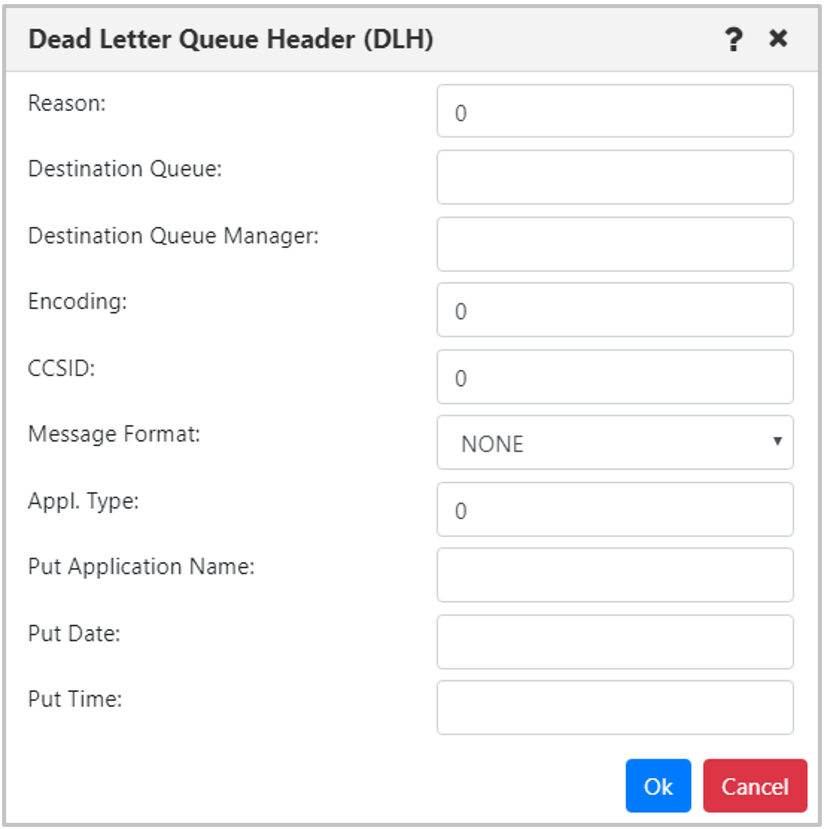

DLH:  Dead Letter Queue header properties. See Message Properties for field descriptions.


G:

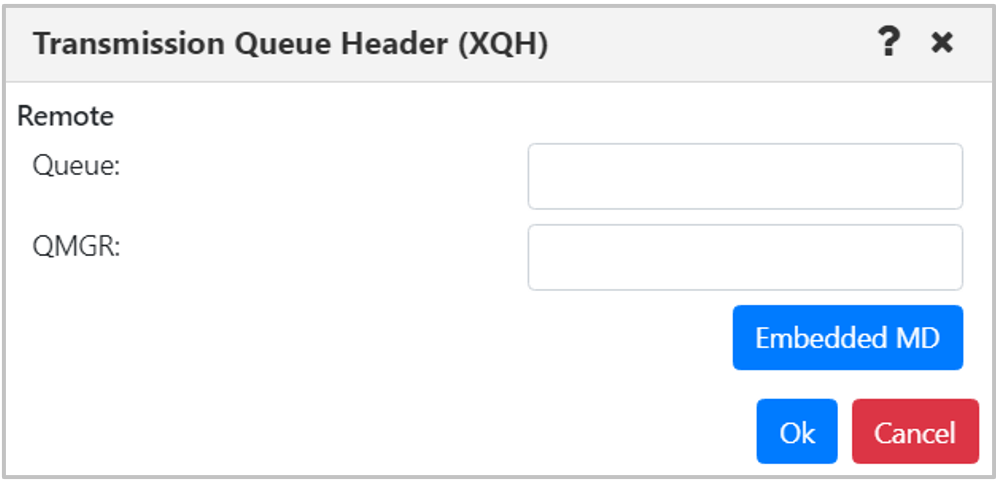

XQH:  Transmission Queue header properties. See Message Properties for field descriptions.


Click the Embedded MD button to open the Message Descriptor Properties window See row C above.

H:

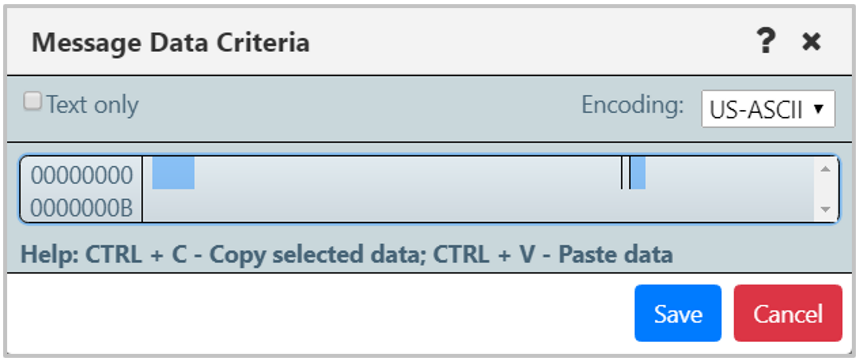

Data:  Message Data Criteria.


I:

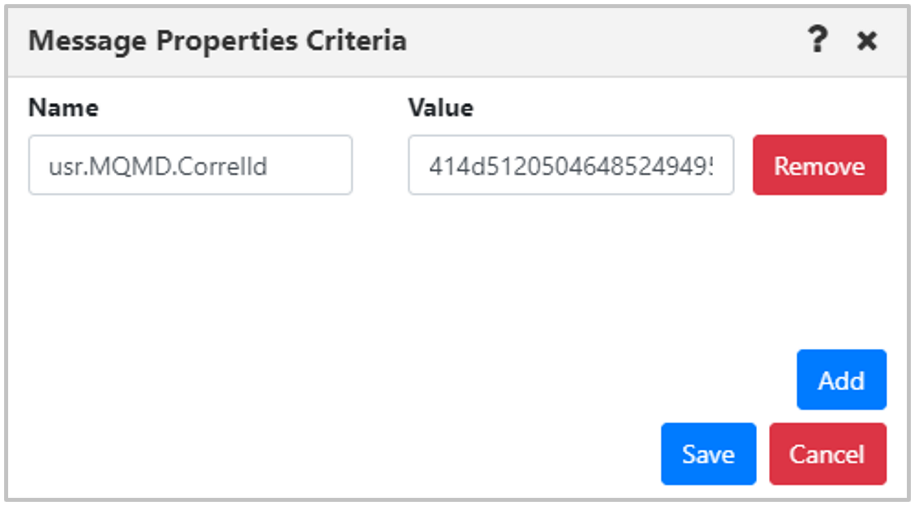

Message Properties: – Ability to search messages based on message properties (including RFH2 header fields).  Both key and value must match.  When searching multiple properties, all property keys and values must match (&&).




______________________________________________________________________________________________________________

Version 12.x and Later

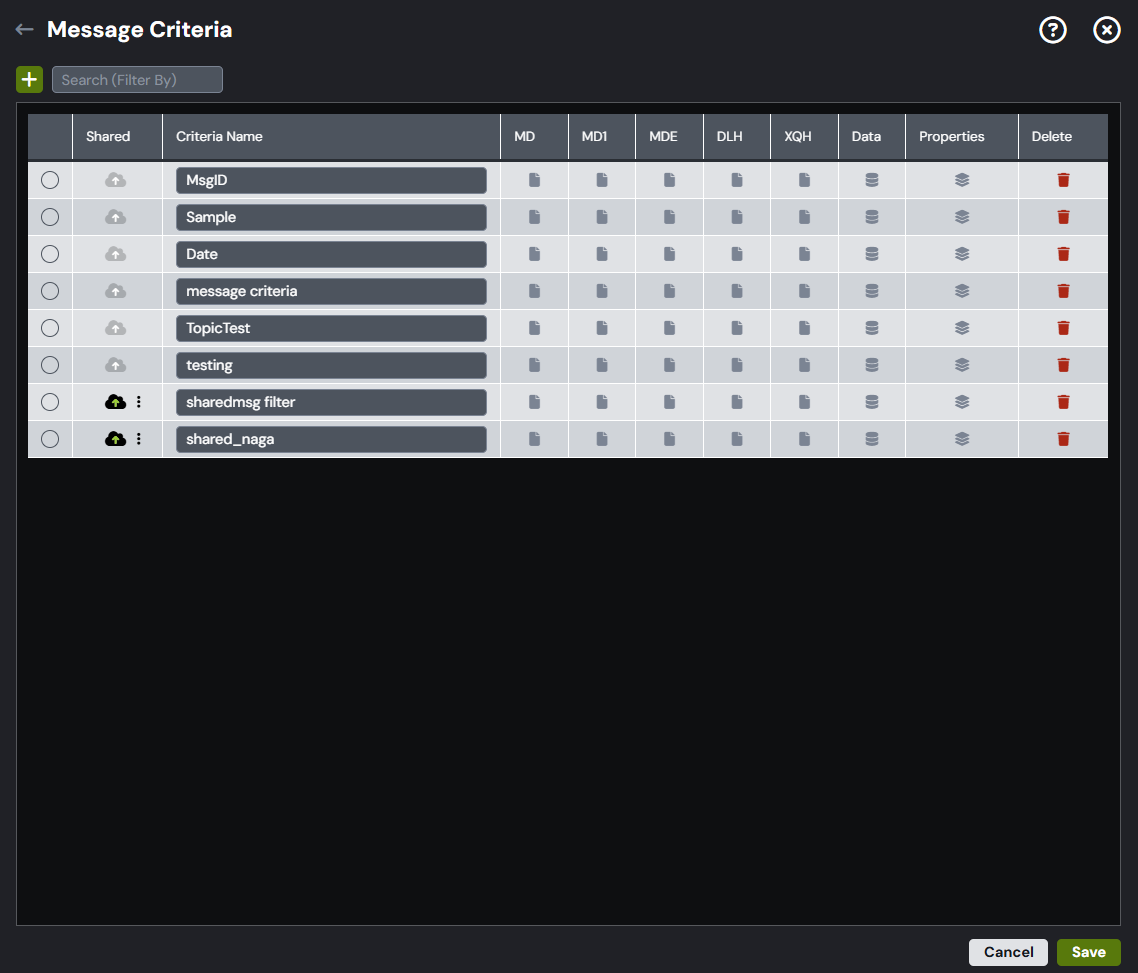

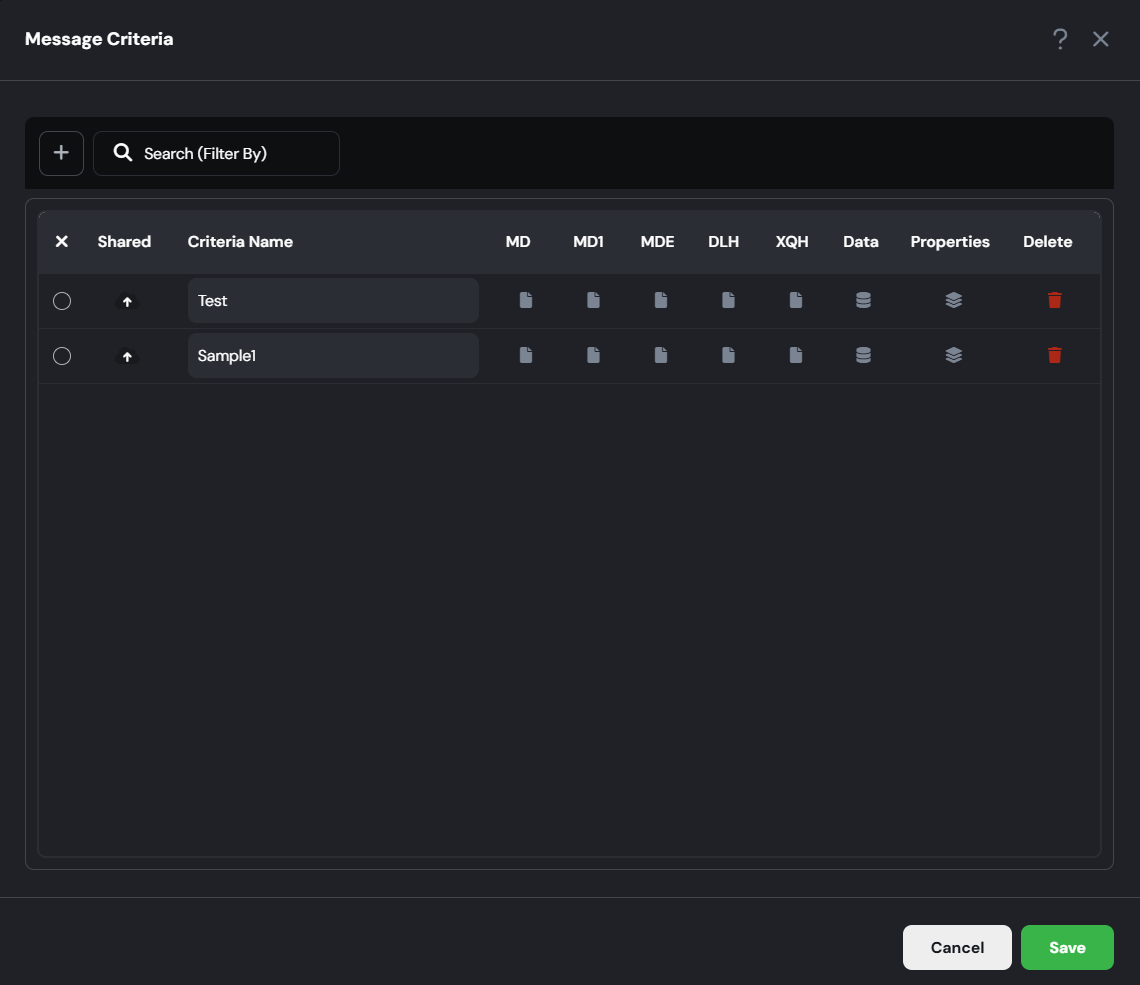

From the Message Criteria dialog, you can define filters based on message descriptor, message descriptor extension, dead letter queue (DLQ) header, transmission queue (XQH) header properties, and message data. Use these filters to create or edit message criteria records.

The following table describes the function of each button in the Message Criteria dialog:

Add button.png

Add new message criteria. See Filtering messages across viewlets with message criteria configurations.

Delete button.png



Delete selected message criteria. See Filtering messages across viewlets with message criteria configurations.



Share the message criteria. See Filtering messages across viewlets with message criteria configurations.

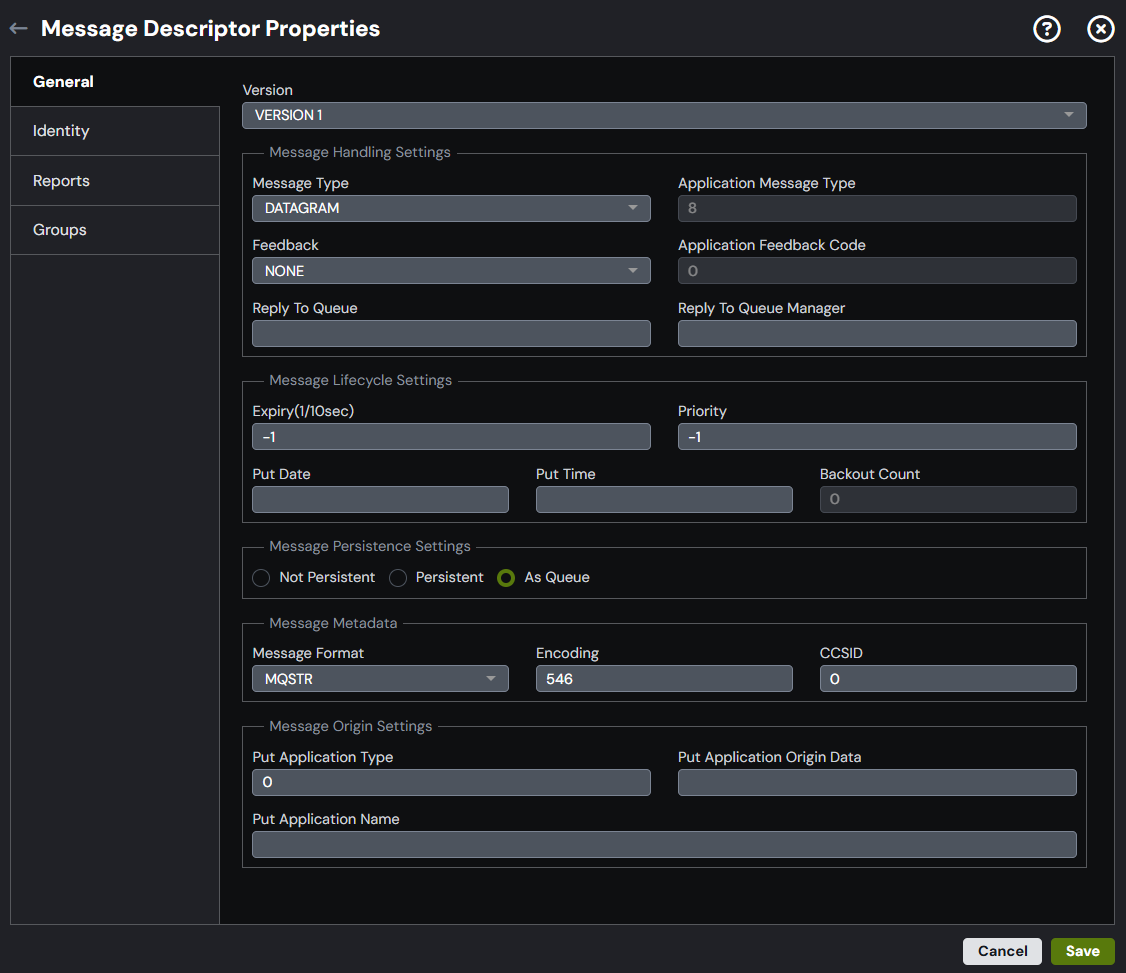

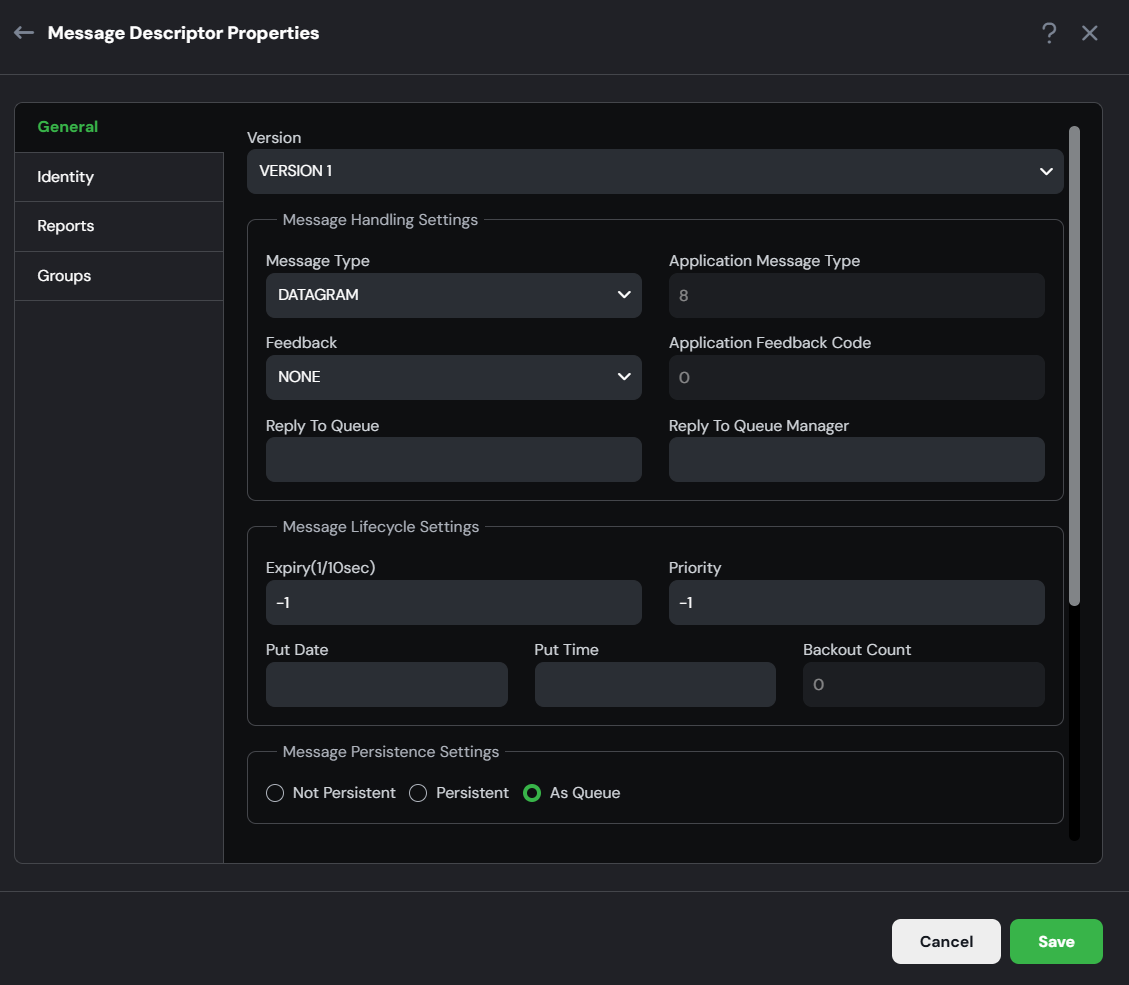

MD

Message Descriptor properties. See Message Properties for field descriptions.

MD1

Message Descriptor 1 properties.

Opens the same windows when the MD option is clicked with the exception of the Groups tab.

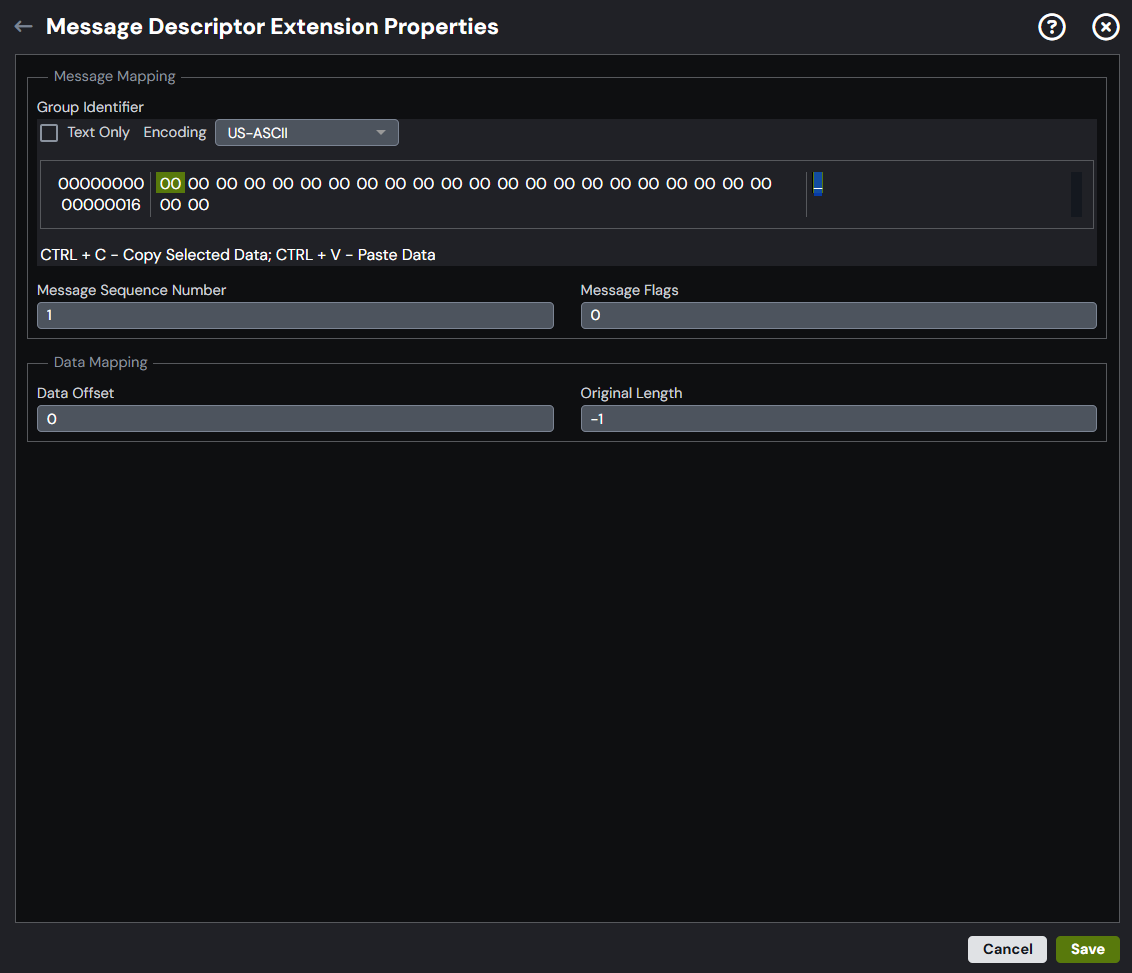

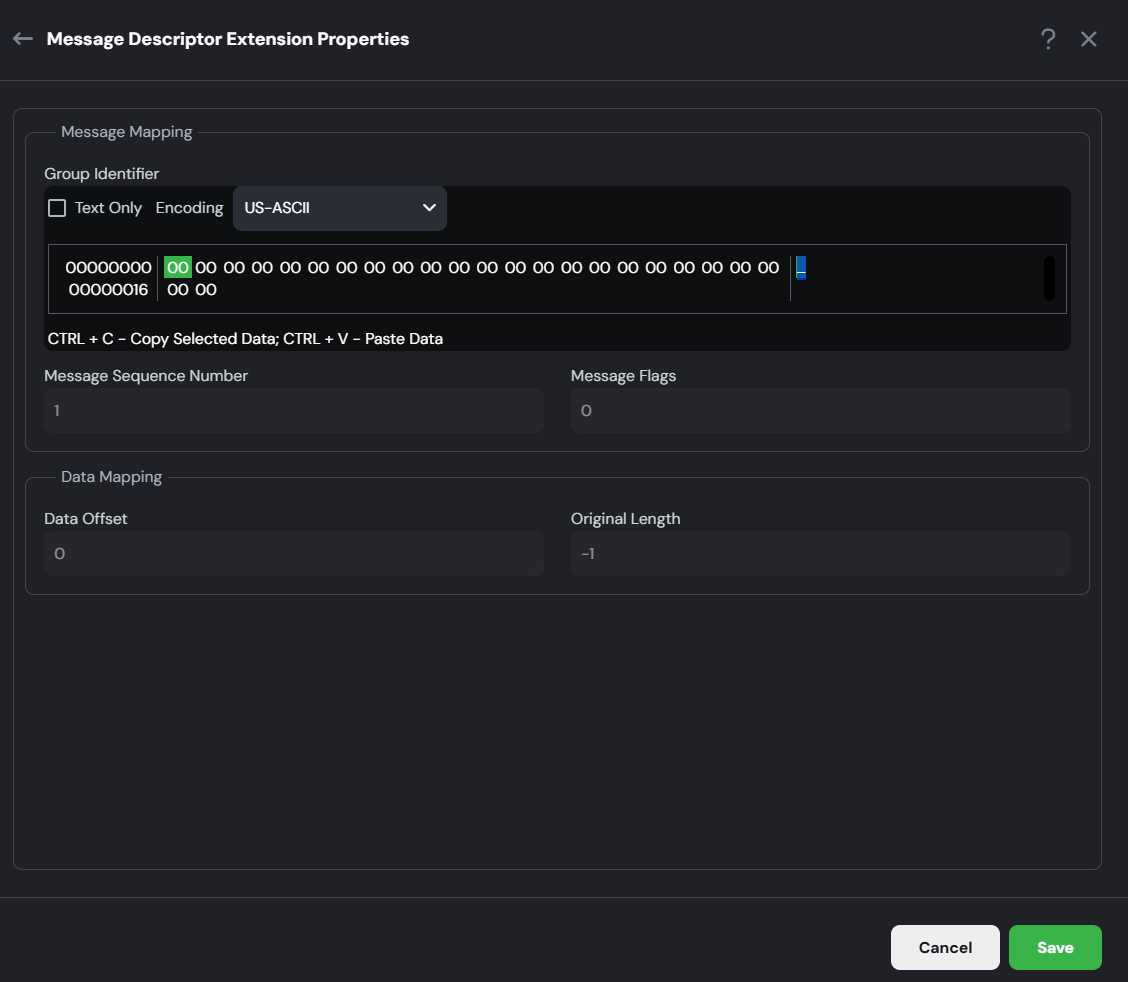

MDE

Message Descriptor Extension properties. See Message Properties for field descriptions.

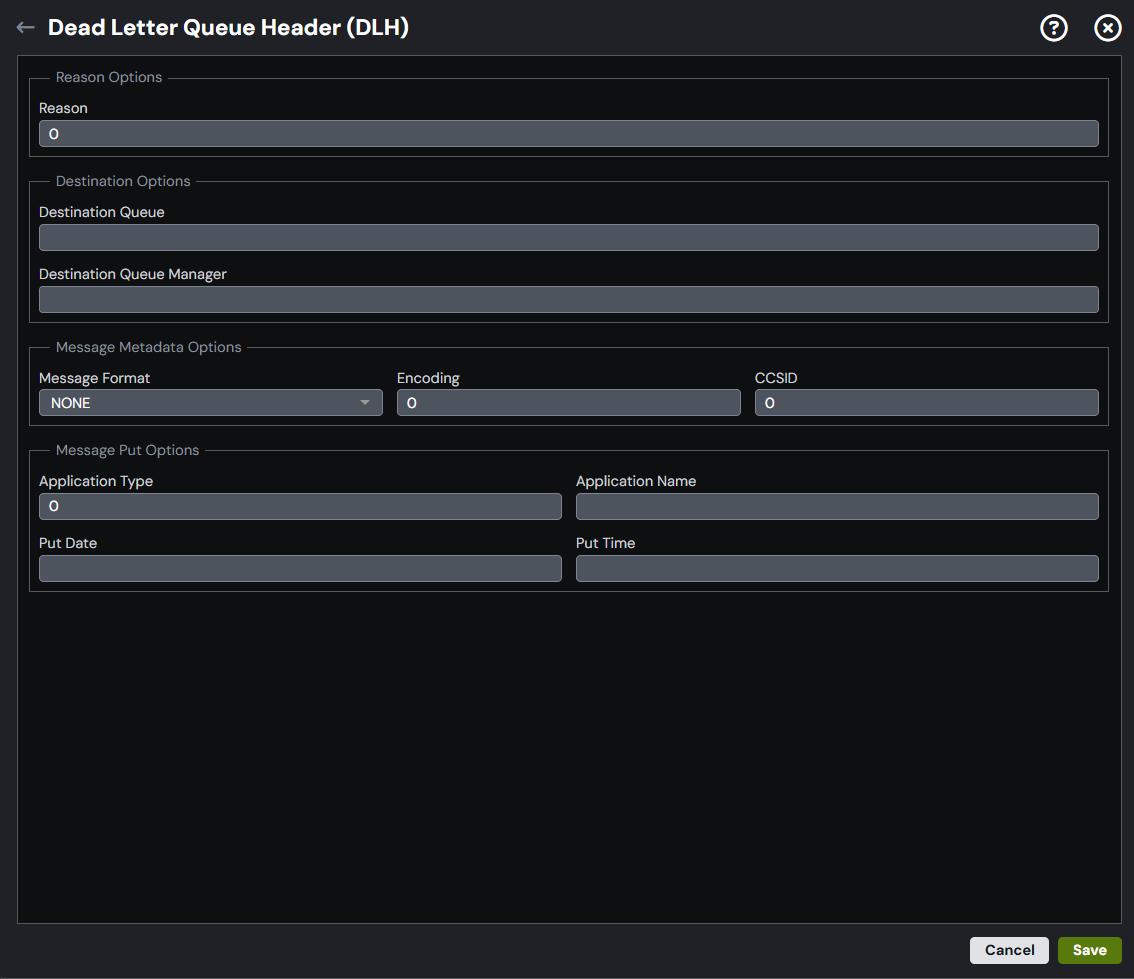

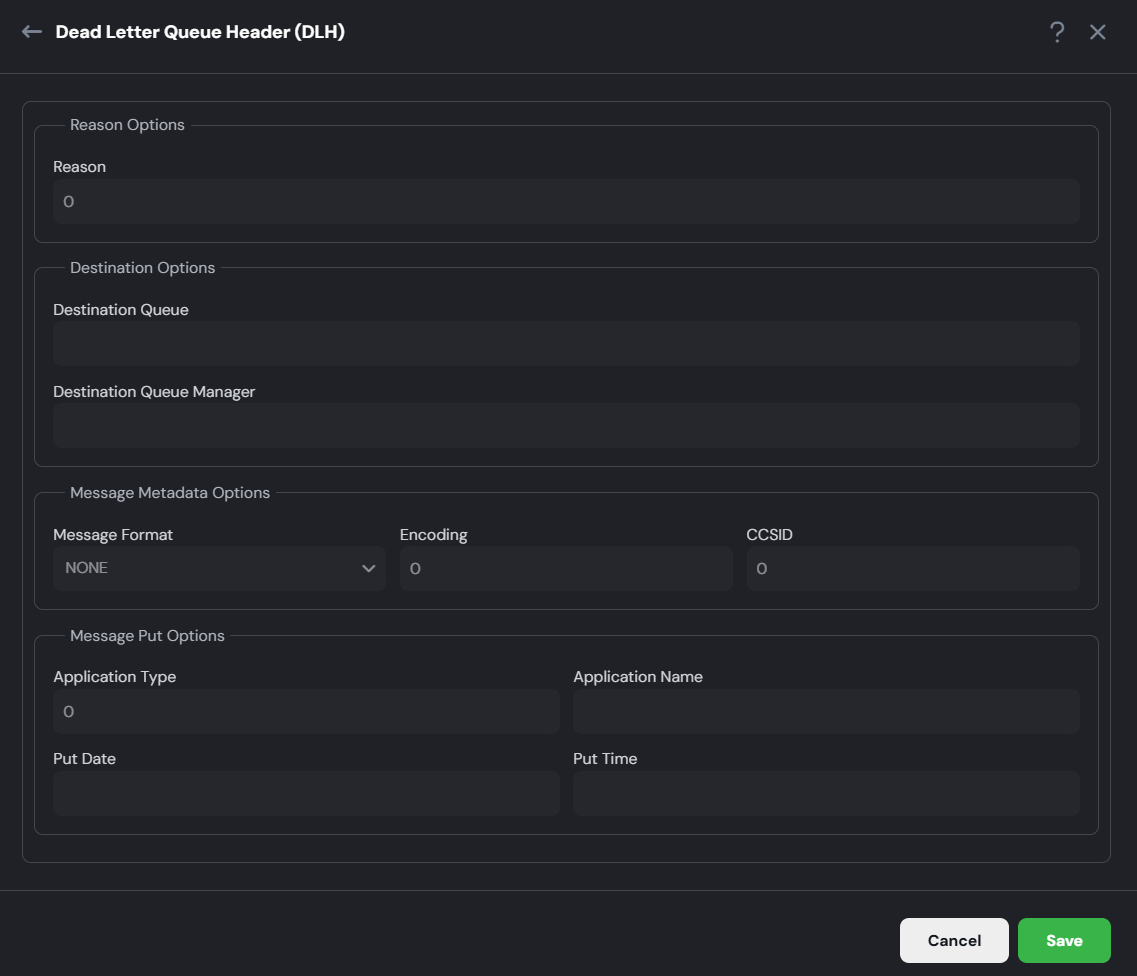

DLH

Dead Letter Queue header properties. See Message Properties for field descriptions.

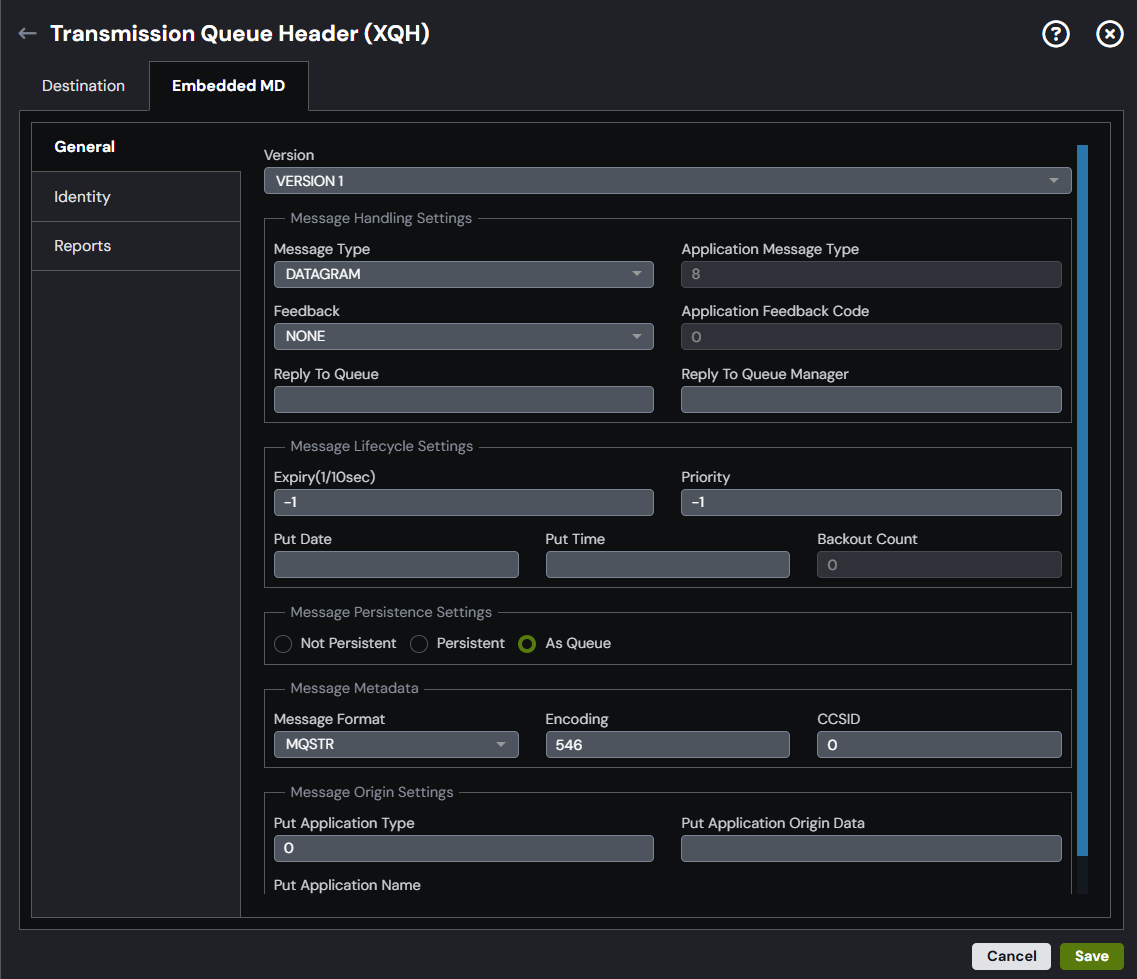

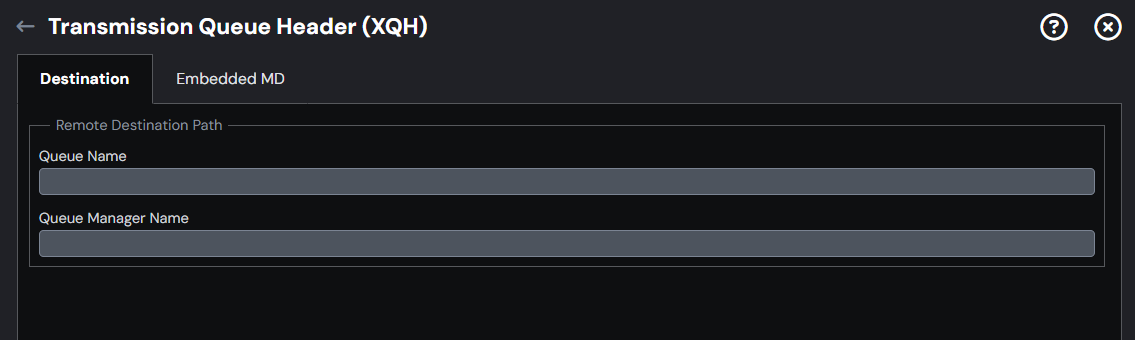

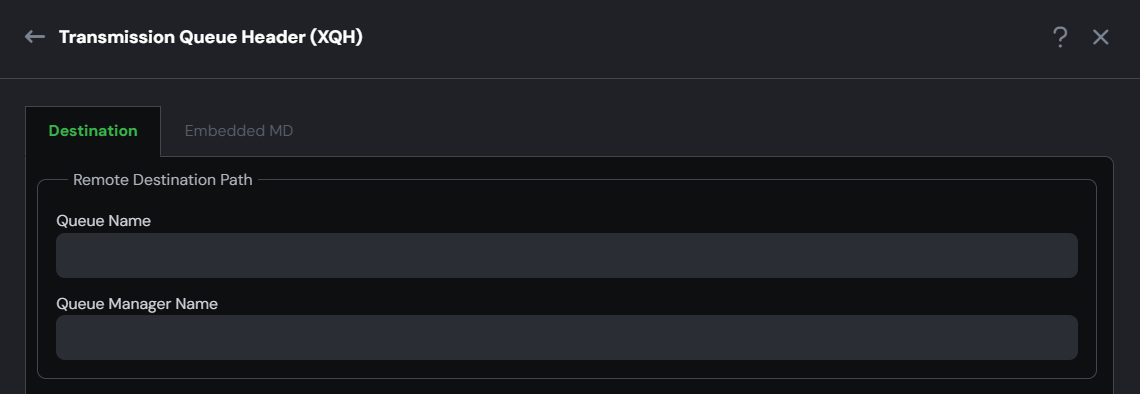

XQH

Transmission Queue header properties. See Message Properties for field descriptions.

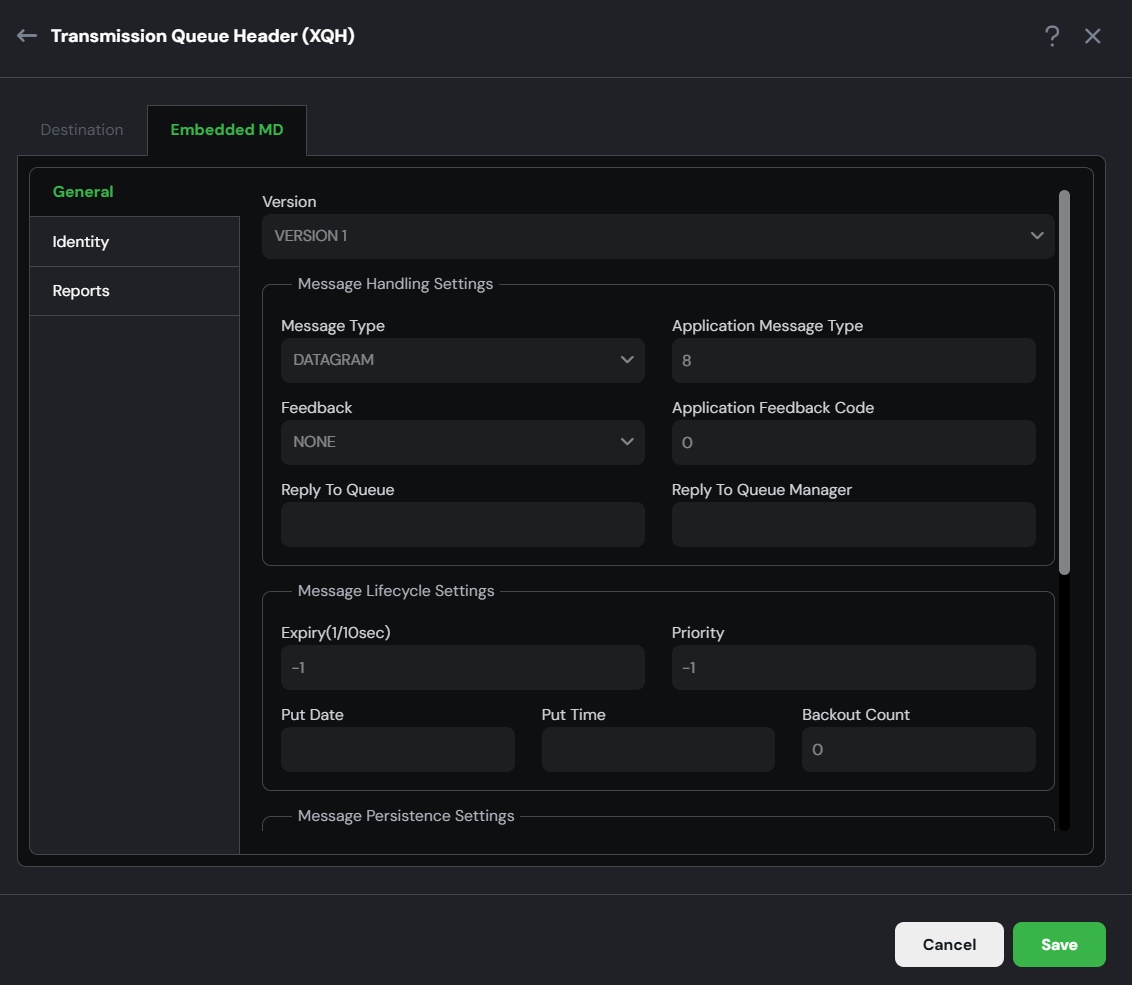

Click the Embedded MD button to open the Message Descriptor Properties window.

Data

Message Data Criteria.

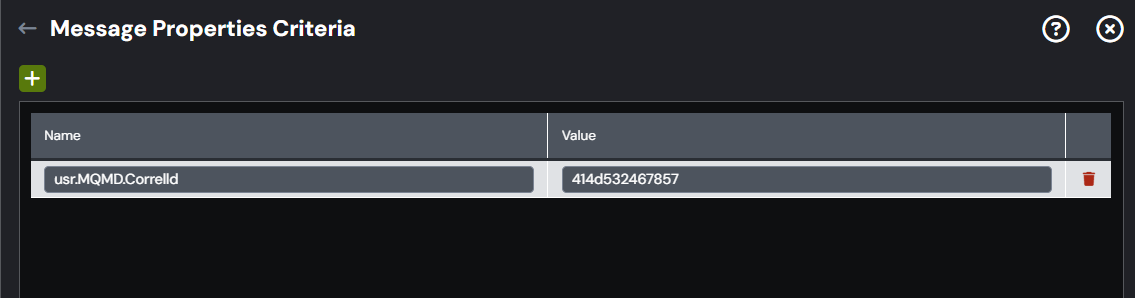

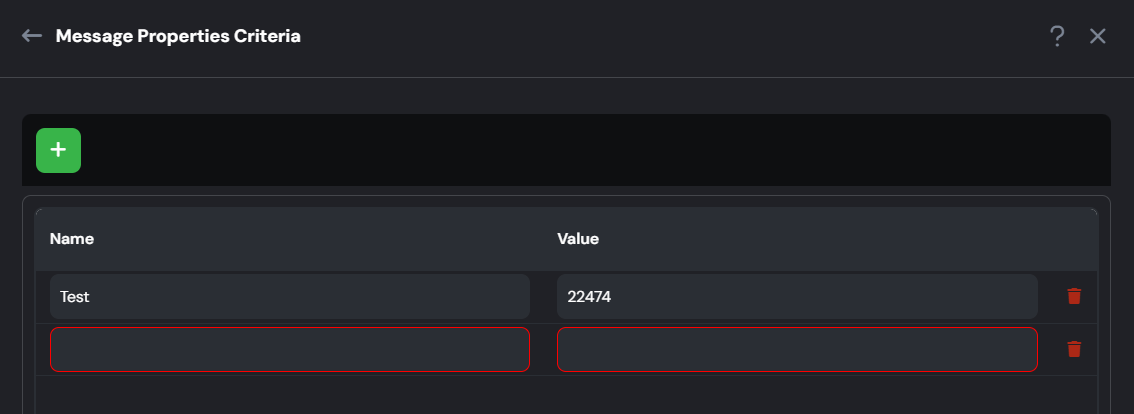

Properties

Ability to search messages based on message properties (including RFH2 header fields). Both key and value must match. When searching multiple properties, all property keys and values must match (&&).
