Some of the content described in this article is available in meshIQ Manage versions 12.0 and later.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.
Jump to Section:
Version 11.2 and Earlier
Version 12.x and Later
Version 11.2 and Earlier
You can view, add, or export Kafka ACLs from Kafka cluster viewlets.
From the Kafka cluster action menu (Selected menu in 11.2), select Commands > Manage ACLs. to open the Permissions dialog for the cluster.

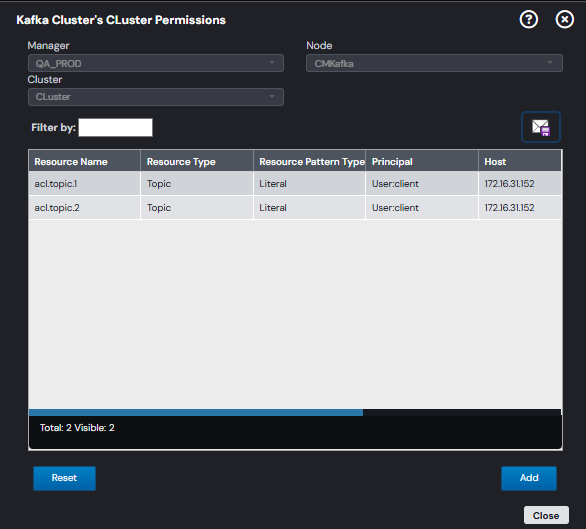

View Kafka ACLs
To view ACLs, select the Manager, Node, and Cluster for which you want to view them.
You can also enter a value in the Filter by box to filter the list of results.

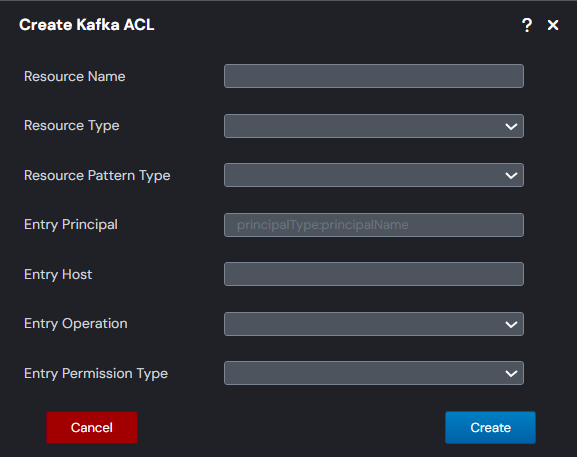

Add Kafka ACLs
- Click Add.
- Enter a Resource Name.
- Select the Resource Type and Resource Pattern Type.
- Enter the Principal and Host.
- Select an Operation and Permission Type.
- Click Create.
The new ACL is added to the list on the Permissions dialog for the cluster.
Export Kafka ACLs
To export ACLs to a .csv file, use the export button . A sample export file is shown below.

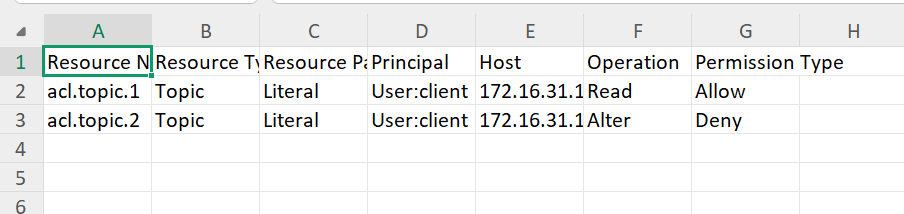

Example of export file
______________________________________________________________________________________________________________
Version 12.x and Later
You can view, add, or export Kafka ACLs from Kafka cluster viewlets.
View Kafka ACLs
To view ACLs, select the Manager, Node, and Cluster for which you want to view them.
You can also enter a value in the Filter by box to filter the list of results.

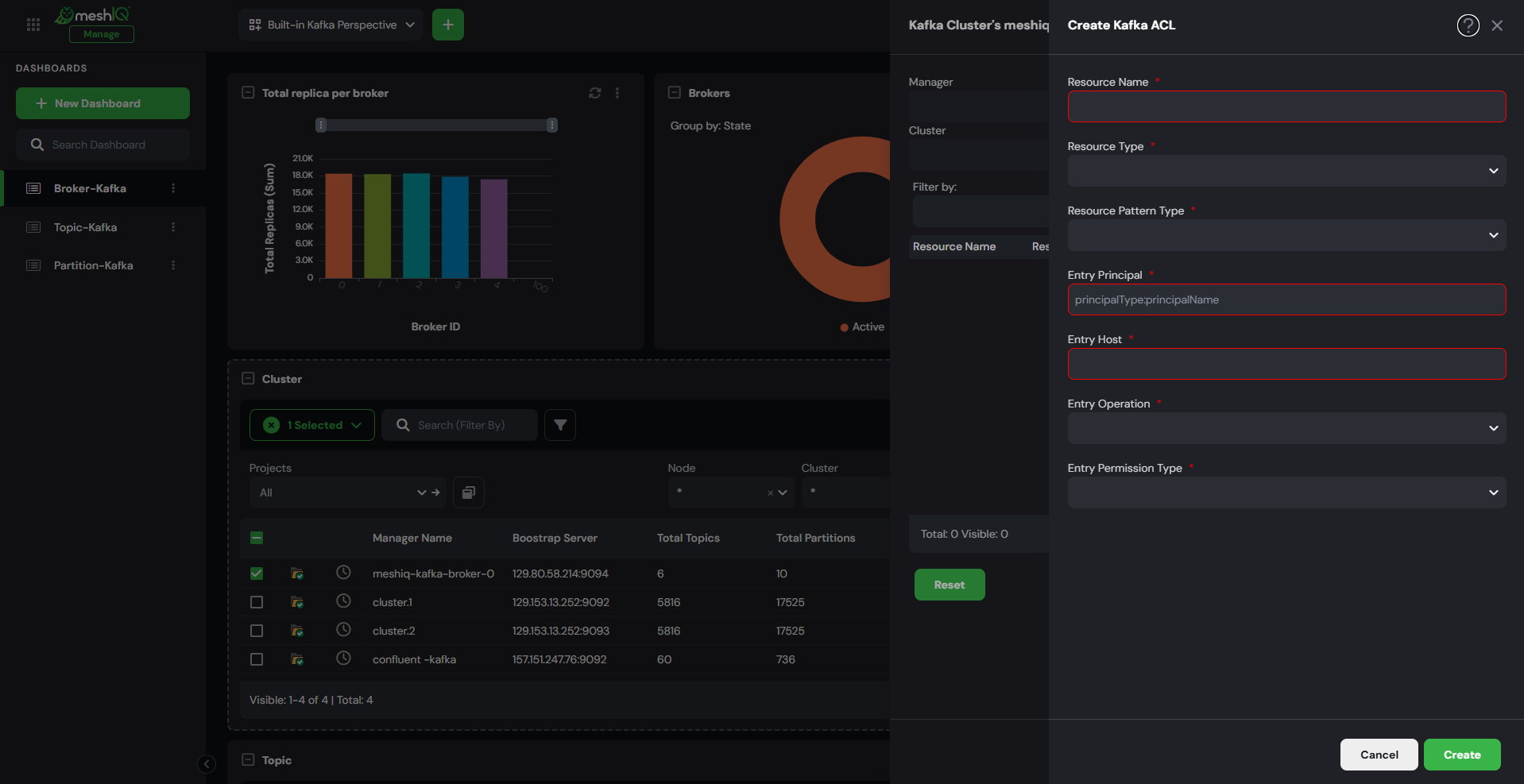

Add Kafka ACLs
From the Kafka cluster Selected menu, select Commands > Manage ACLs. to open the Permissions dialog for the cluster.
- Click Add.
- Enter a Resource Name.
- Select the Resource Type and Resource Pattern Type.
- Enter the Principal and Host.
- Select an Operation and Permission Type.
- Click Create.
The new ACL is added to the list on the Permissions dialog for the cluster.
Export Kafka ACLs
To export ACLs to a .csv file, use the export button . A sample export file is shown below.
