Some of the content described in this article is available in meshIQ Manage versions 12.1 and later.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.

Jump to Section:
Version 12.x and Later
Version 11.3 and Earlier

Version 12.x and Later

To edit a widget's properties:

1. Click the three vertical dots menu located at the top right corner of the widget.

2. Select Edit Widget from the pop-up menu. The Edit Widget dialog opens.

3. Perform your updates. For example,
   • Rename the widget by updating the Widget Name.

   • Change the Widget Type and configure the available fields based on the selected widget type.

     The available options depend on the widget you are editing and the technology selected from the Technology list.

     Remote Queue Managers are not technology-specific and are displayed only under their respective technology node type.

4. When selecting a Workgroup server connection, you can choose to show objects from multiple connections by selecting the Multi-Selection checkbox and selecting the individual Workgroup servers one at a time.

5. If Workgroup Server connection groups have been created and the Display Grouping In Connection Selection checkbox is selected on the General tab in User Settings, the Workgroup Server lists include connection groups in addition to individual connections.

6. Click Update to save the changes.

________________________________________________________________________________________________________________

Version 11.3 and Earlier

To edit a viewlet's properties:

1. Click the three vertical dots menu located at the top right corner of the viewlet.

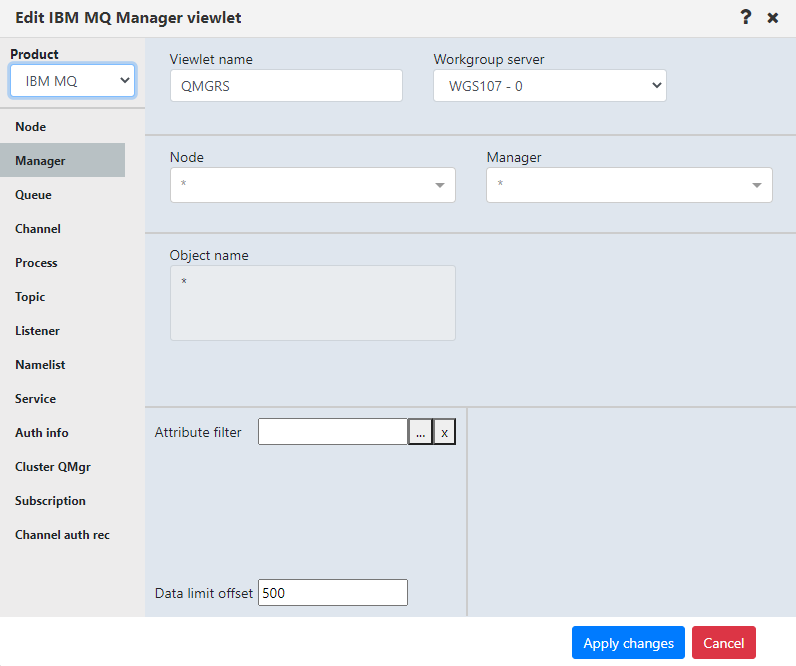

2. Select Edit Viewlet from the pop-up menu. The Edit Viewlet window opens.

3. Perform your updates. For example, if you wanted to rename a viewlet, update the Viewlet name. For each viewlet, available options are based on the Product that is selected from the Product list.
   • Remote queue managers are not product specific. Therefore they are included in Node viewlets for every product, regardless of the Product selection.

   • When selecting a Workgroup server connection, you can choose to show objects from multiple connections by selecting the Multi-Selection checkbox and selecting the individual Workgroup servers one at a time.




   • If Workgroup Server connection groups have been created and the Display Grouping In Connection Selection checkbox is selected on the General tab in User Settings, the Workgroup Server lists include connection groups in addition to individual connections.





4. Click Apply changes.
