This functionality is available in the meshIQ Platform version 11.0.3 and in AutoPilot SU 34.4.
You can change the font size of certain areas of the user interface. The console.graph.font.size property controls text size in the following areas:
- Deployment Tool: tree
- Business View: tree and graphs
- Business Process: graphs
- Sensor Selector: tree
This property is located in {autpilot_dir}\naming\profiles\admin\profile.properties.

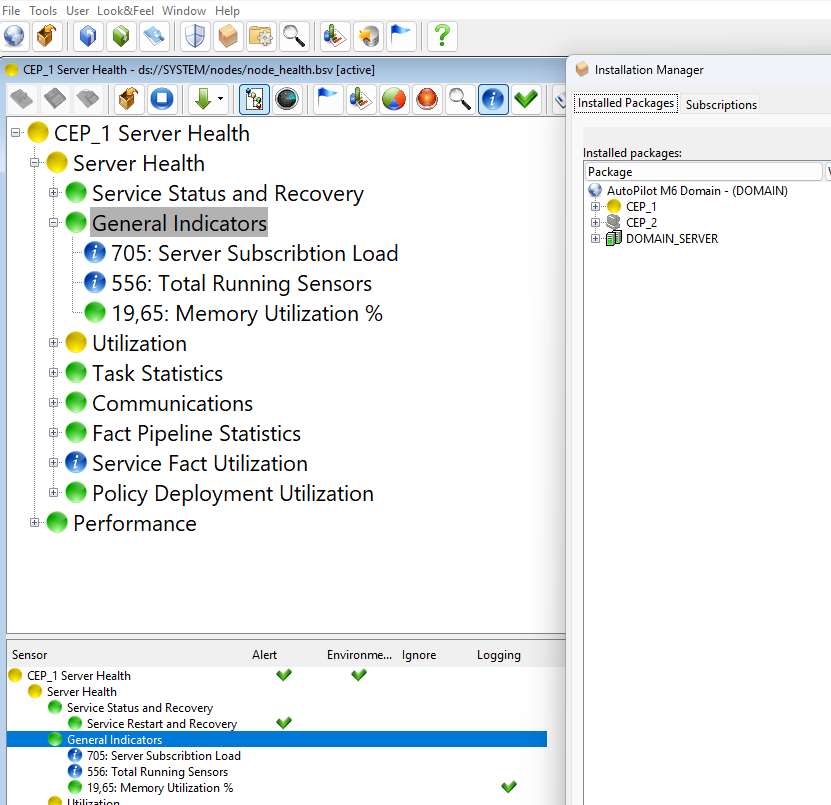

The examples below show the font size being changed to 22. In the example below, only the tree is affected:

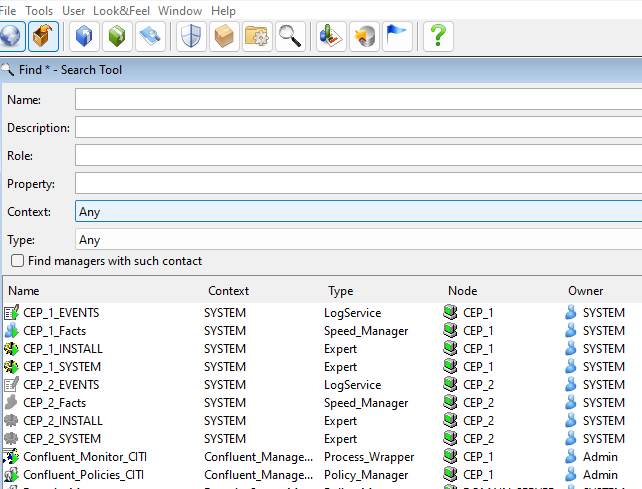

In this example, find results are easier to read:

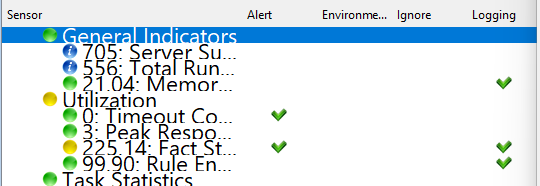

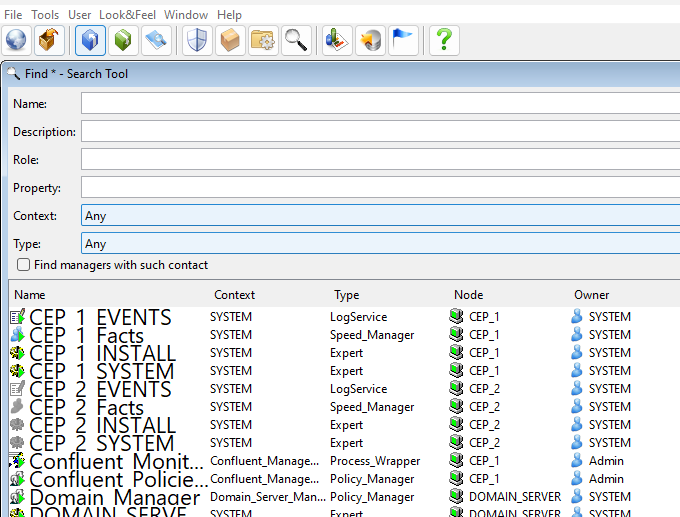

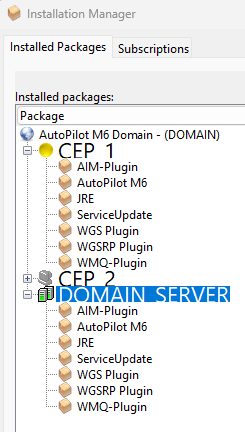

The elements that accept a new font size are limited to prevent other elements from becoming unreadable, as shown below:
