Alerts (XRay Admin Settings)

Alerts inform individuals or groups about specific scenarios. In XRay, you can associate an alert with a provider by selecting an action that has been set up for that provider.

1. Go to Main Menu > Admin Settings >Alerts.
2. Click Create.
3. Select all objectives that you want to base this alert on. If you are selecting multiple objectives, they must be from the same set.
4. Use the Notify When list to indicate the scenarios in which you want this alert to be sent. Choose one:
   • All objectives are met
   • At least one objective is met
   • At least one objective is NOT met
   • No objectives are met
5. Click Next.

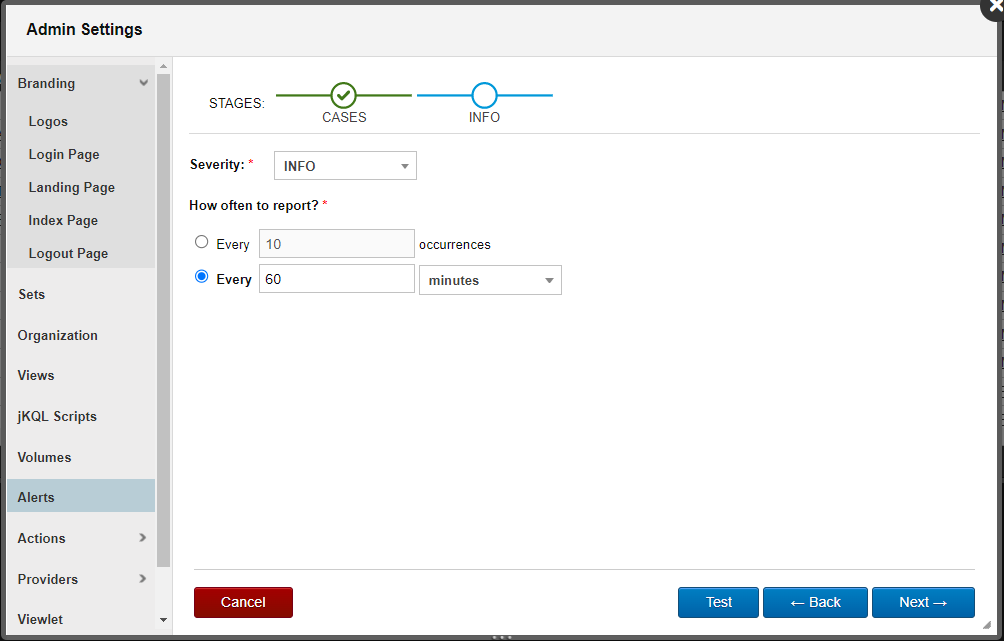

6. Identify the Severity of this alert. Selections are listed below.
   • None
   • Trace
   • Debug
   • Info
   • Notice
   • Warning
   • Error
   • Failure
   • Critical
   • Fatal
   • Halt
7. Choose how you want to report the alert (by instances or by time intervals), and how often (number of instances or number of seconds, minutes, hours, or days).

8. Click Next.

9. Enter the name of the new alert in the Alert Name.
10. Assign an action to the alert by selecting one from the list. A filter field is available; the list is automatically filtered by the text that you type. Actions are categorized by provider (for example, Email or Slack).
11. Click Test to test the alert. XRay displays a message to indicate that the test was successful:

12. Click OK.
13. Click Finish to save the alert.
