Some of the content described in this article is available in Navigator versions 10.4 and greater. See 10.4 Highlights for an overview of feature changes.
From a Queue viewlet, select Create Queue or Create EMS Queue from the queue’s action menu or click the Add button.
Specify a Path for the New Queue

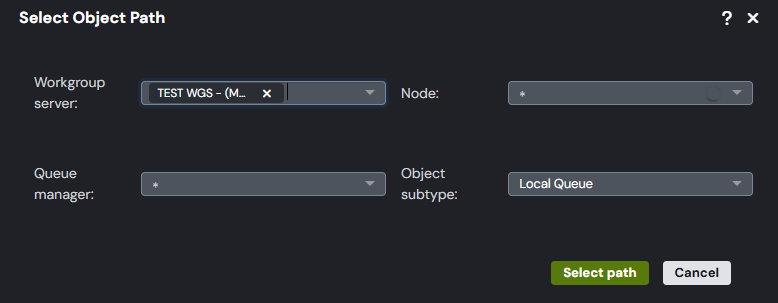

If you clicked the Add button, the Select object path window will open.
- Specify the following items:
- workgroup server
- queue manager (leave the asterisk to create a new queue in all of the workgroup server nodes and queue managers)
- object subtype (local, model, alias, remote or cluster queue).
- Click Select path to open the Queue Create window and move on to the next section.
Specify Queue Properties
When the Queue Create Window or EMS Queue Create Window opens, enter a queue name (required) and specify all desired options. See Queue Properties for more information. See Map MQSC command keywords to Navigator local queue properties for a list of MQSC command keywords and the properties that they correspond to.
You can also create your own custom properties on the Custom Attributes tab.
Queue Create Window
For streaming queues, see Queue Create Window Storage Tab below.

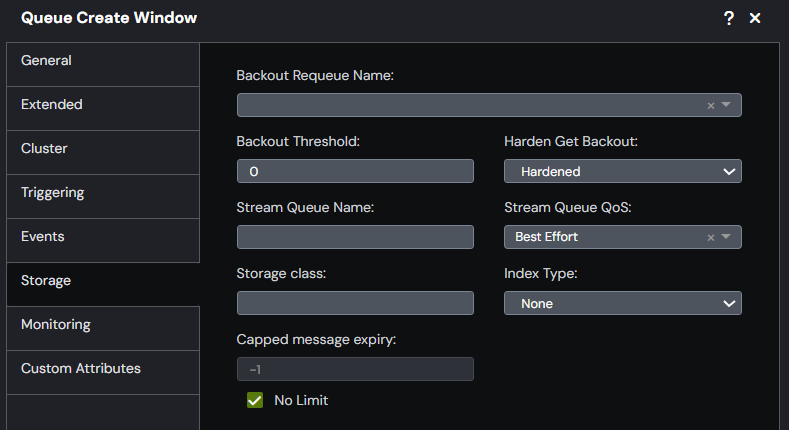

Queue Create Window Storage Tab
For streaming queues, use the Queue Create Window Storage Tab to enter details. You can specify the Stream Queue Name (the name of the queue to deliver streamed messages to) and the Stream Queue QoS, which can be set to Best Effort (this default setting avoids affecting delivery of the original message) or Must Duplicate (a problem with delivery of the streamed message can prevent delivery of the original message).

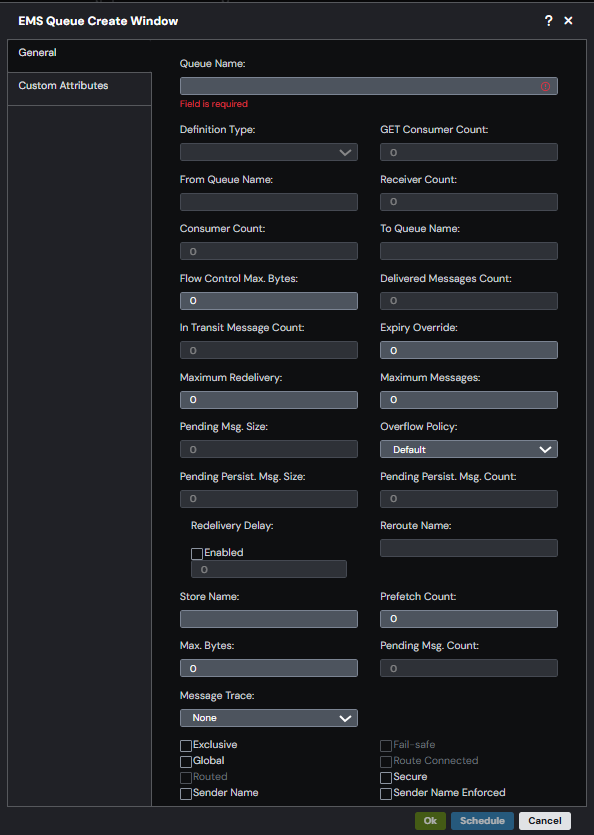

EMS Queue Create Window
Click OK to save the new queue.
