Some of the content described in this article is available in meshIQ Manage versions 12.0 and later.
For a quick overview of what's new or changed, visit the meshIQ Highlights page for a version-by-version breakdown.
Jump to Section:
Version 11.2 and Earlier
Version 12.x and Later
Version 11.2 and Earlier
To view properties of multiple objects within a viewlet:
- Select the objects.

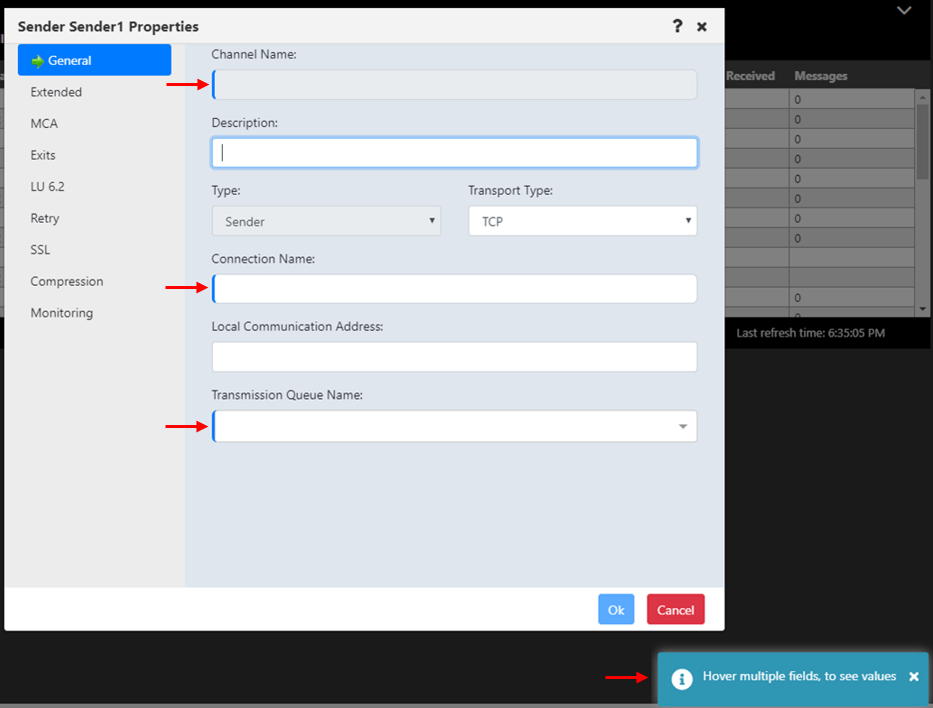

- Click Properties from the Action menu (Selected menu from version 11.2 onwards). The Properties window opens. A blue tooltip box appears on the bottom right corner of the screen (as seen below) instructing you to hover over fields to display the values.
- Simply hover over any of the fields with a blue line appearing on the left side of the field box; these are the fields that contain multiple values.

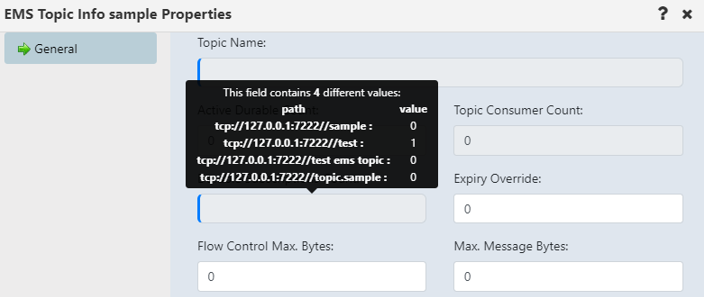

- Once you hover over the fields, a black box will appear displaying all of the field’s values.
________________________________________________________________________________________________________________
Version 12.x and Later
To view properties of multiple objects within a viewlet:
- Select the objects.

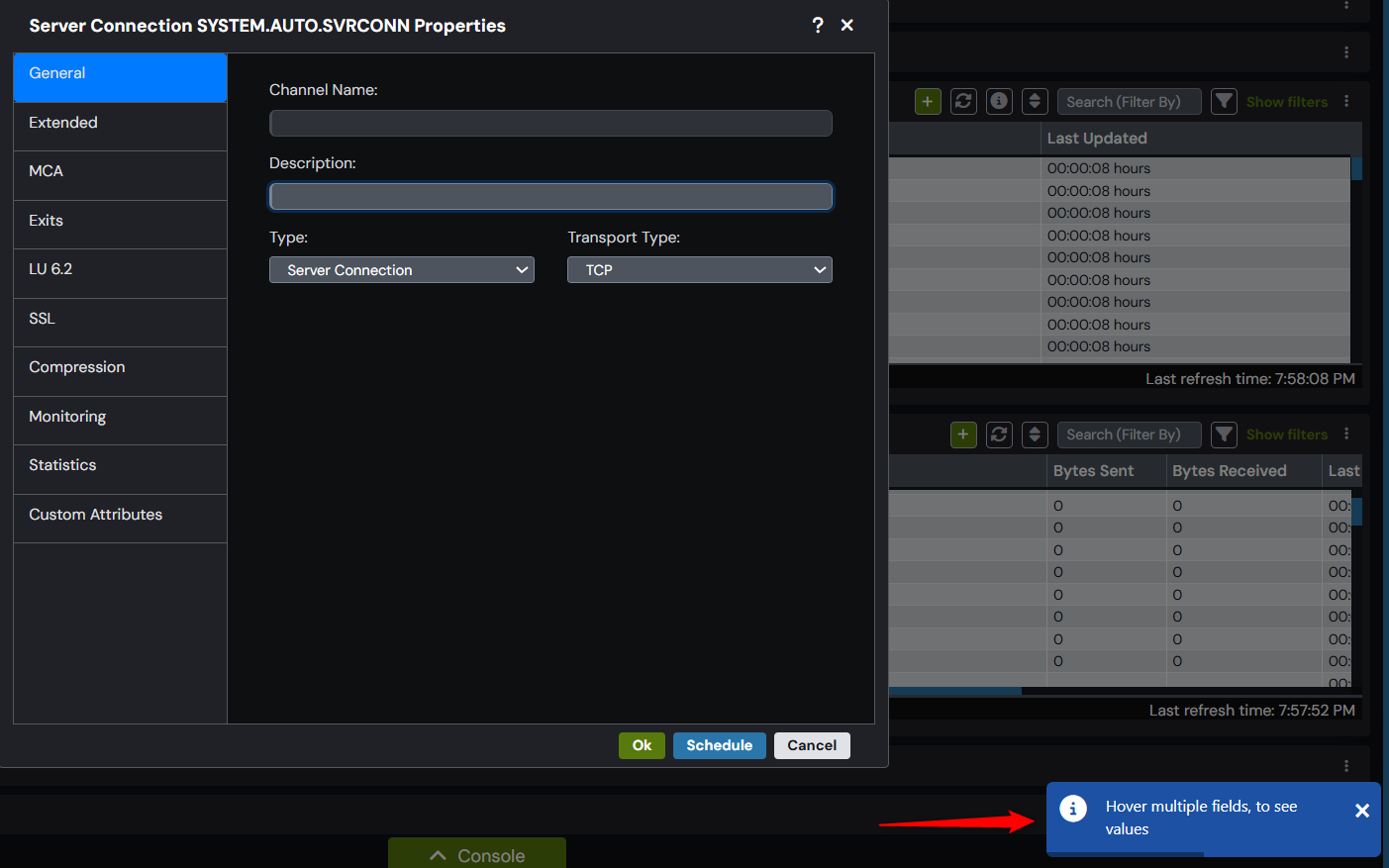

- Click Properties from the Selected menu. The Properties window opens. A blue tooltip box appears on the bottom right corner of the screen (as seen below) instructing you to hover over fields to display the values.
- Simply hover over any field that is formatted differently on the left side of the field box—these fields contain multiple values.

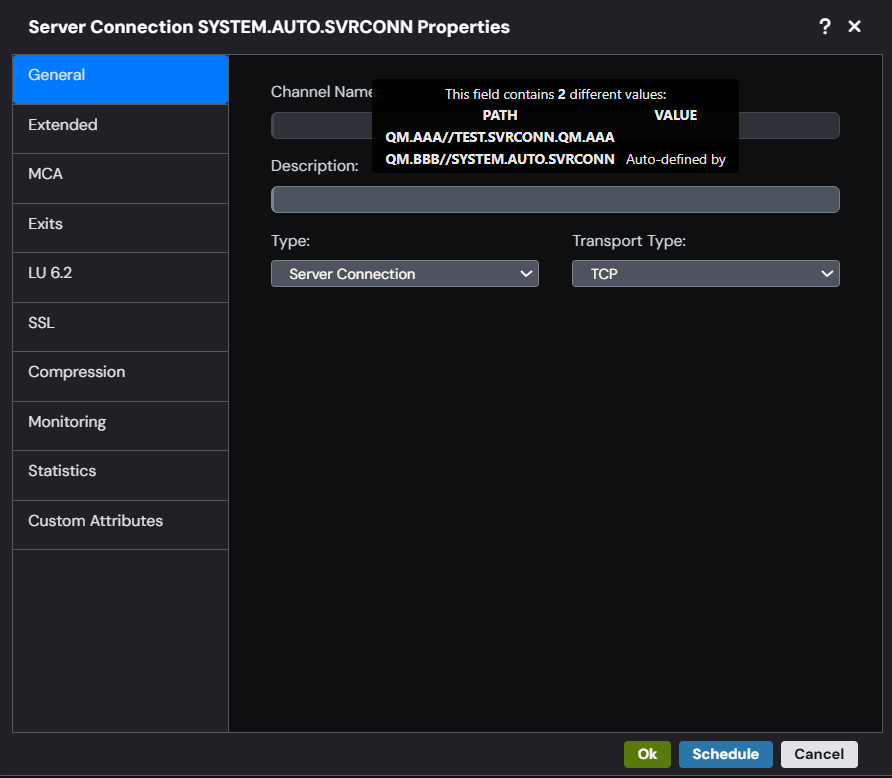

- Once you hover over the fields, a black box will appear displaying all of the field’s values.
