Create a Solace Topic Endpoint and Topic Endpoint Template

This article will guide you through the process of creating a Solace Topic Endpoint and Topic Endpoint Template.

A topic endpoint has a matching topic subscription and when messages are published to a topic, these are attracted by topic endpoint. Topic endpoints offer fewer options than queues and can subscribe to only one topic. The topic subscription is specified in the client request to bind a flow to that topic endpoint.

Before creating the Solace Topic Endpoint, you must establish a Solace Manager connection. To learn how, click on Create Remote Solace Manager Connection.

Create a Solace Topic Endpoint

You can create a Solace Topic Endpoint by following these steps:

1. Open the Solace Topic Endpoint viewlet, click the Add button  .

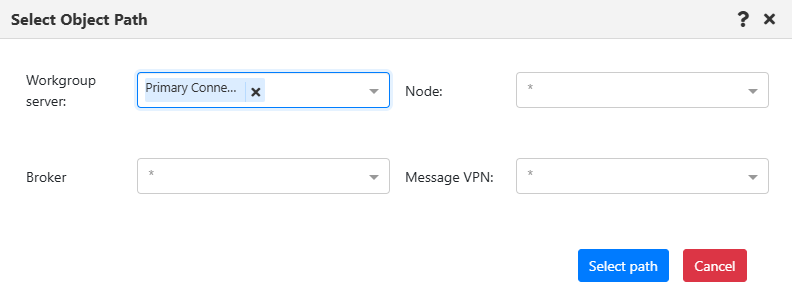

2. The Select Object Path window will open. Specify the Workgroup server, Node, Broker, and Message VPN then click Select path.
   By default, all available Workgroup servers, Nodes, Brokers, and Message VPNs are selected. If you want to limit the selection, you must explicitly choose which ones to include.

3. The Solace Topic Endpoint Create Window will open. Enter the Topic Endpoint Name (required) and populate other needed details.

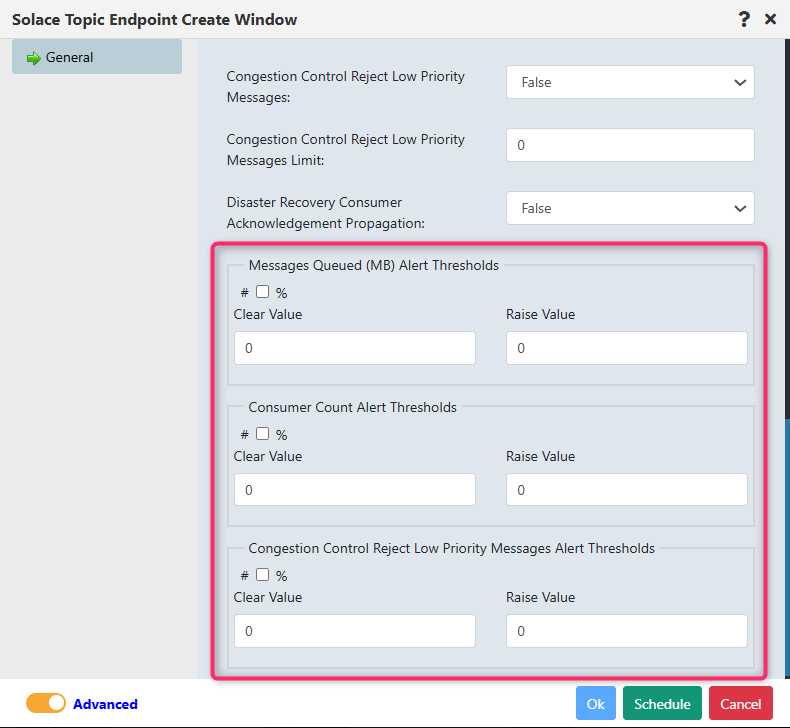

4. Click on the Advanced slide at the bottom left to view more advanced options.

5. Click Ok to create the Topic Endpoint immediately. Alternatively, click Schedule to create it at a future time (see Scheduling for details).
6. Now, go to the Solace Topic Endpoint viewlet to see the newly added object. If you can't find it, refresh the viewlet using the Refresh icon.

Create a Solace Topic Endpoint Template

Topic endpoint templates are configurable objects that administrators can use to specify custom attributes and parameters for any new client-created topic endpoints. When a client creates topic endpoints dynamically using an API, the endpoint name can be matched to the template. All custom attributes that are configured in the template are copied to the client-created topic endpoint.

Before creating the Topic Endpoint Template, you must establish a Solace Manager connection. To learn how, click on Create Remote Solace Manager Connection.

You can create a Solace Topic Endpoint Template by following these steps:

1. Open the Solace Topic Endpoint Template viewlet, click the Add button  .
2. The Select Object Path window will open. Specify the Workgroup server, Node, Broker, and Message VPN then click Select path.
   By default, all available Workgroup servers, Nodes, Brokers, and Message VPNs are selected. If you want to limit the selection, you must explicitly choose which ones to include.

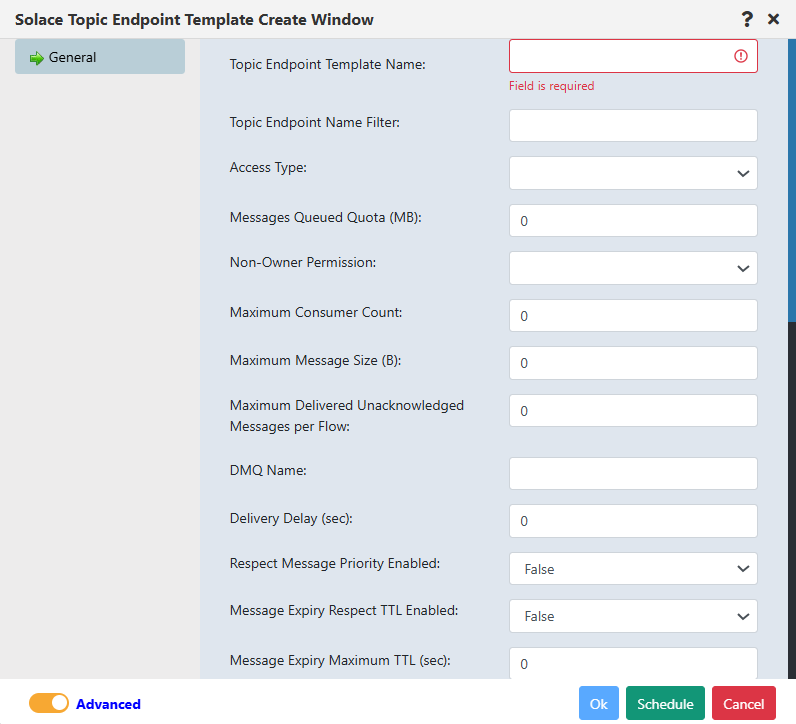

3. The Solace Topic Endpoint Template Create Window will open. Enter the Topic Endpoint Template Name (required) and populate other needed details.

4. Click on the Advanced slide at the bottom left to view more advanced options.
5. Click Ok to create the Topic Endpoint Template immediately. Alternatively, click Schedule to create it at a future time (see Scheduling for details).
6. Now, go to the Solace Topic Endpoint Template viewlet to see the newly added object. If you can't find it, refresh the viewlet using the Refresh icon.
