Create new dashboards

Some of the content described in this article is available in Navigator versions 10.4.2 and greater. See 10.4.2 Highlights for an overview of feature changes.

There are two ways to create a new dashboard.

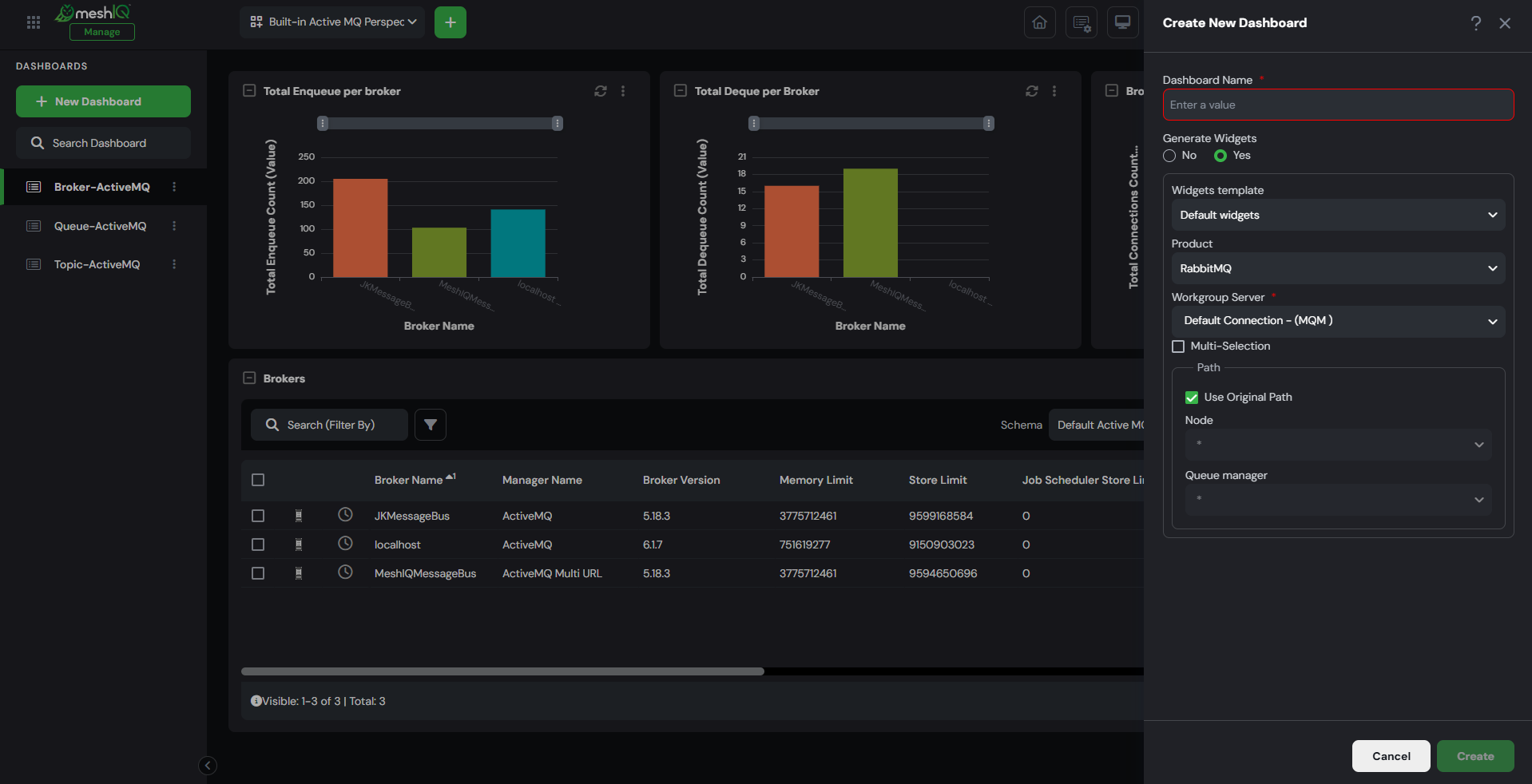

  1. To add a new dashboard, choose one of the following ways to open the Create new Dashboard dialog box:
      • Click the plus button mceclip0.png button located immediately to the right of the dashboard tabs.
      • Click Dashboards… to open the Manage Dashboards dialog, then click +New. (version 10.3)
  2. Enter a name for the new dashboard. Each dashboard must have a unique name.

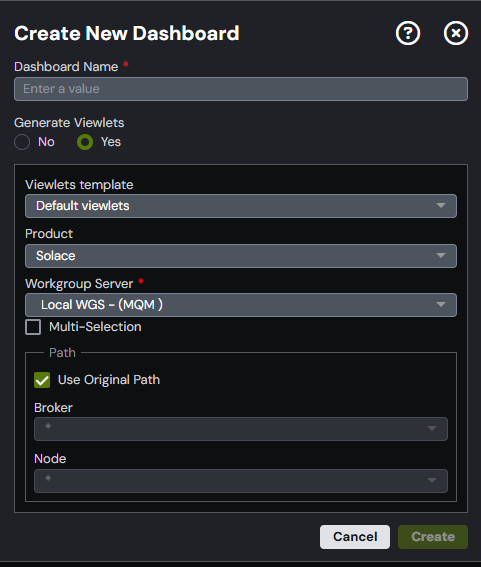

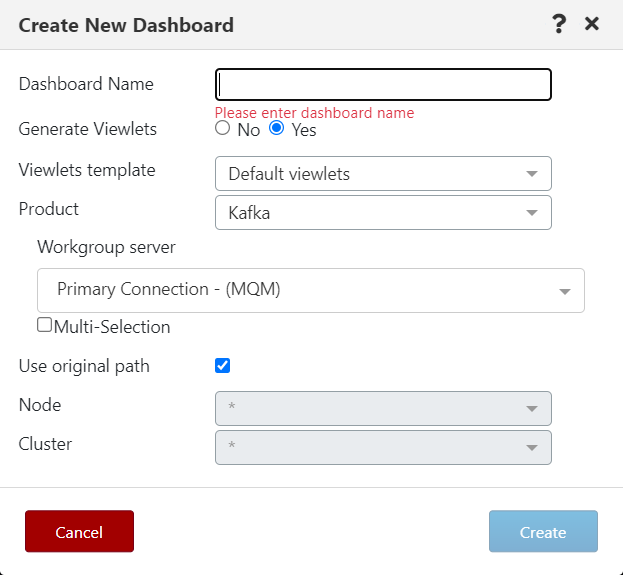

  3. Select either No or Yes to generate initial viewlets in the new dashboard. Additional fields display if you select Yes. The dialog box will look similar to the following:

    The following additional fields are displayed:

    • Viewlets template:  Select a template for your viewlet.  This is optional.
    • Product:  Select the object product type for the initial viewlets that will be generated.  Choose from IBM MQ, IIB/ACE, EMS, Kafka, Solace, or RabbitMQ. The viewlets that are generated for each product are listed below.
      • IBM MQ:  Local queue and channel viewlets.
      • EMS:  Queue, route, bridge, and connection viewlets.
      • Kafka:  Topic viewlets.
      • IIB:  Broker, server, service, REST API and Application viewlets.
      • ACE:  Integration node, servers, applications, service, and REST API viewlets.
      • SOLACE: Brokers and Message VPNs viewlets.
      • RABBITMQ: Virtual host and queue viewlets.
    • Workgroup server:  Select the workgroup server.
    • Use original path: By default, the Use original path check box is selected, indicating that the new dashboard will use the Node and Queue manager of the selected dashboard template (from the Viewlets template list). To choose a different Node or Queue manager, clear this check box.
    • Node:  Select a specific node, or use an asterisk to include all objects from all nodes.
    • Queue Manager:  Select a specific queue manager, or use an asterisk to include all objects from all queue managers on the selected node(s).

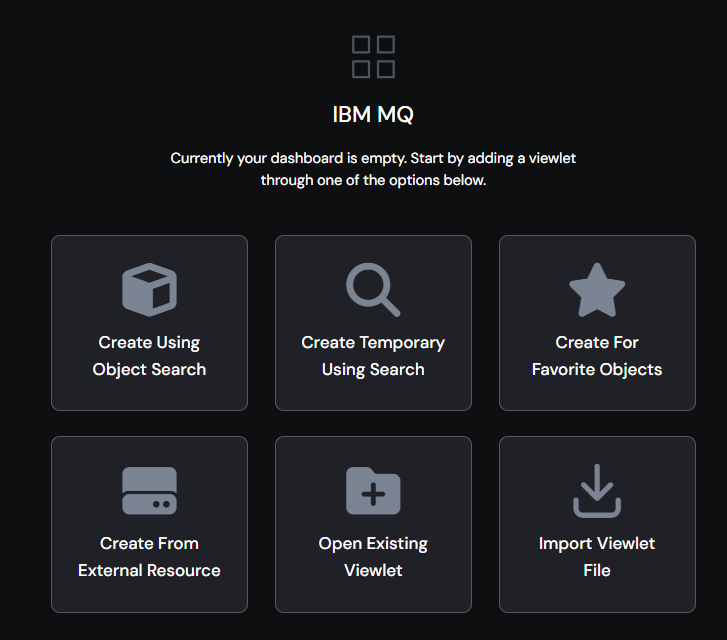

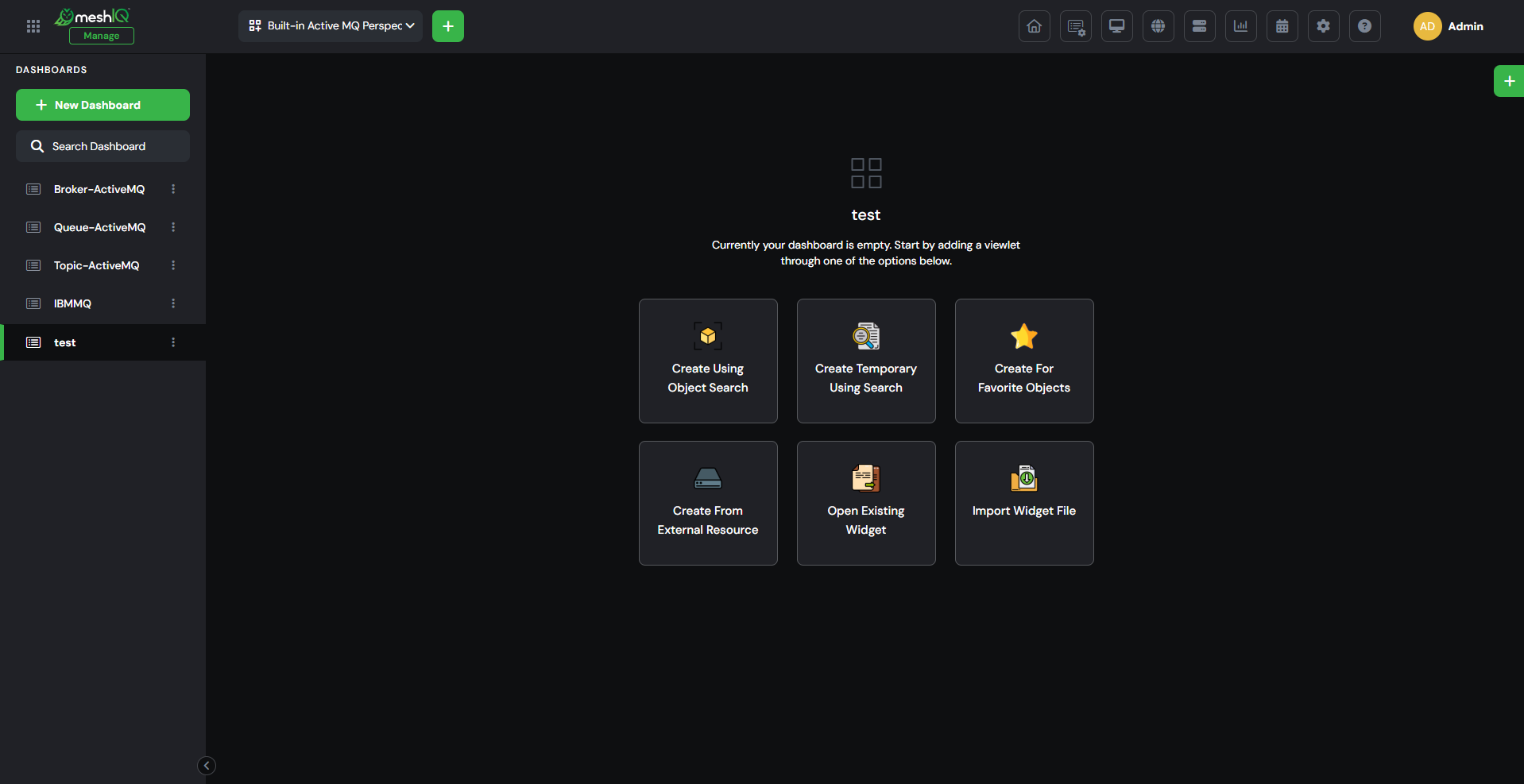

  4. Click Create. A new dashboard is added with initial viewlets (if applicable).  New dashboards are added to the current User Perspective.
