Some of the content described in this article is available in meshIQ Manage versions 11.1.1 and later. See meshIQ platform Highlights v11.1 for an overview of feature changes.

To add new information to a dashboard, you can create viewlets.

Each viewlet includes access to action menus. See Action menus below for more information.

Each viewlet also includes a Projects list that controls what can be seen in the viewlet. For more information about projects, see Select a project below.

Create a new viewlet

To add a viewlet to your dashboard:

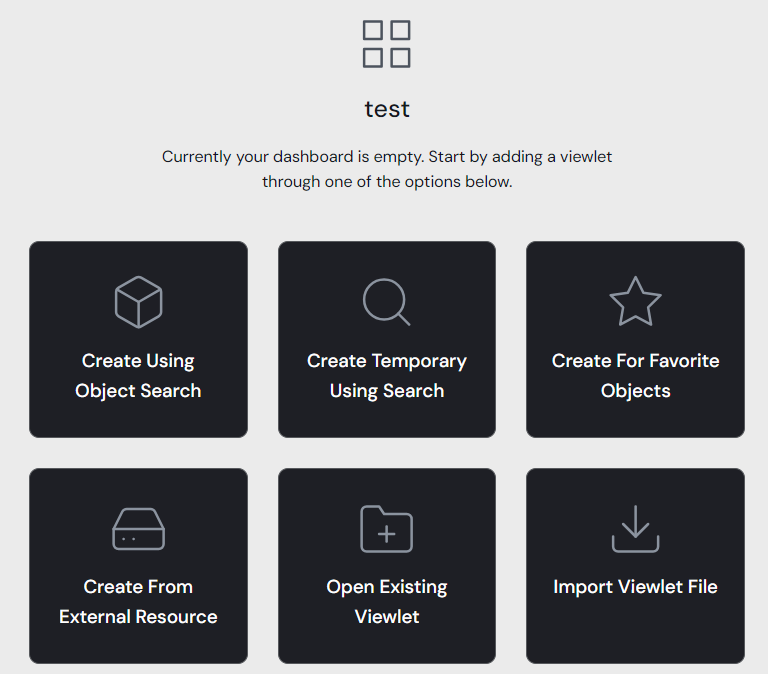

Click the Viewlet button from the top right of the screen. The Create Viewlet dialog box opens.
Choose the type of viewlet you want to create. (When you create a viewlet from the WorkSpace dashboard, only the Create a temporary viewlet using search option is available.)

The Create new viewlet window is displayed when Create a new viewlet using object search or Create a temporary viewlet using search is selected. Temporary viewlets are only available during the current session. For these viewlets, the Temporary checkbox is selected.
Select the Product for which you want to create a viewlet.

For each viewlet, available options are based on the product that is selected from the Product list. Remote queue managers, however, are not product specific. Therefore they are included in Node viewlets for every product, regardless of the product selection.

Select the object type on the left side of the window.
Complete the fields as required. Other selections also depend on the selected product. For example, the Node list only includes nodes for the product you select.
Use Attribute filter and, for queue viewlets, Find messages to search for specific cases.
Click Save Changes. The viewlet is displayed at the bottom of the current dashboard.

Create a new viewlet consisting of favorite objects

The Add favorite viewlet dialog box is displayed when Create a new viewlet for favorite objects is selected from the Create Viewlet dialog box. See What are favorite objects viewlets for more information.

Create a new viewlet from a file

If you or another user has exported viewlet properties to a file (see Exporting viewlet parameters to a file), you can import that file to create a new viewlet.

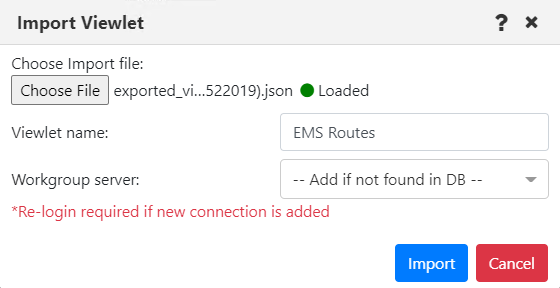

Select the Import viewlet from file option from the Create Viewlet dialog box.
After you choose a file, the Viewlet Name is filled in, based on the file contents.
Click Import to add the viewlet to the dashboard.

Action menus

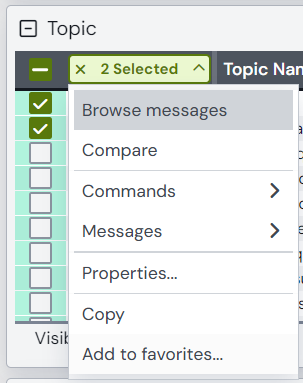

When you click on the check box immediately to the left of an object within a viewlet, the Action menu becomes available. The box will remain checked until you collapse the viewlet, change dashboards, or click the check box again to clear it.

Note that the menu is transparent when your mouse is not hovering over it. This makes it easier to view other objects when selecting multiple objects.

The menu becomes fully visible when your mouse is hovering over it.

When multiple objects are selected, you can click on the in the header to uncheck all selected objects.

You can check the header check box to select all objects in the viewlet (a white checkmark is displayed) and clear it to deselect all objects.

The header check box may not be available if there are too many objects in the viewlet. The number of queue managers that can be selected in this way is limited by the Bulk Select Max options: Restricted objects global user setting. The number of other objects in a viewlet that can be selected in this way is limited by the General objects setting.

Select a project

By default, the Projects list in a viewlet includes the unique descriptions of all user groups that you can view.

If you have been assigned a role with the right to Access All Projects (such as the Administrator role), then in addition to the All selection, your Project list may include the descriptions of certain user groups, to allow you to replicate the experience of users in those groups. See the definition of Principle Name in the user group management security article for more information.

When All is selected, you can click the arrow next to the list arrow to show the workgroup server that you're connected to.

If you have more than one workgroup server connection, each one is listed, and you can switch between them.
