Some of the content described in this article is available in meshIQ Manage versions 11.1.1 and later. See meshIQ platform Highlights v11.1 for an overview of feature changes.

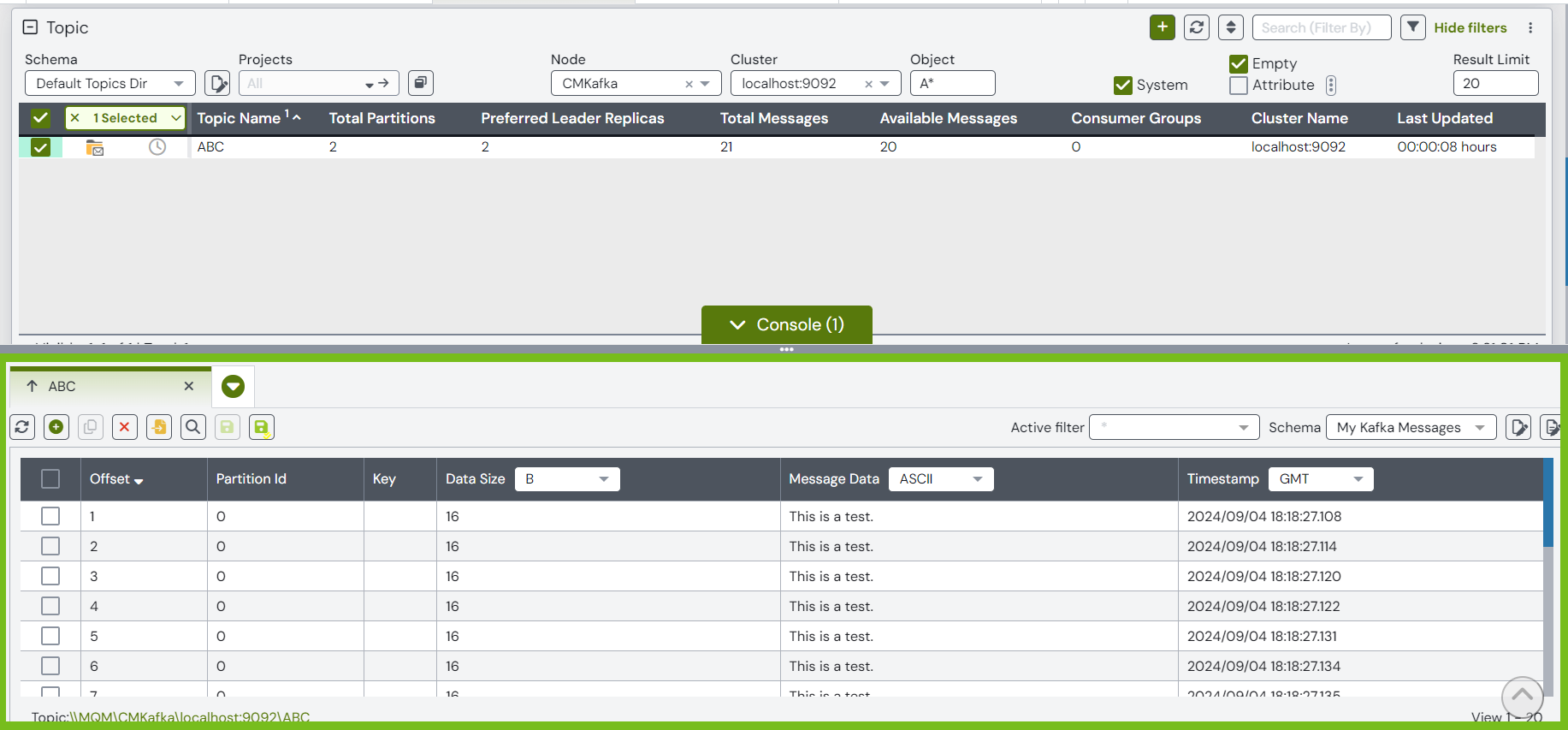

The tabs at the top of the screen represent different dashboards. Dashboards are composed of a summary section above and a Console panel below. The summary section displays the dashboard's main viewlets and their objects. The Console section displays viewlets containing additional object information.
Console panel
The Console panel displays object aspects. Queue and channel statuses, messages, attributes, and events are some of the object aspects that are viewed within the Console panel.
To view object aspects, launch them from the Summary panel. For example, if you click on a channel's name, its details will display within the Console panel.
Version 11.2
Version 11.1
To collapse/expand the Console section, simply click the section label, Console.
Click the up arrow (or
in light theme) located on the left side of the tab to jump to the originating viewlet (located within the summary panel) that generated the Console viewlet.

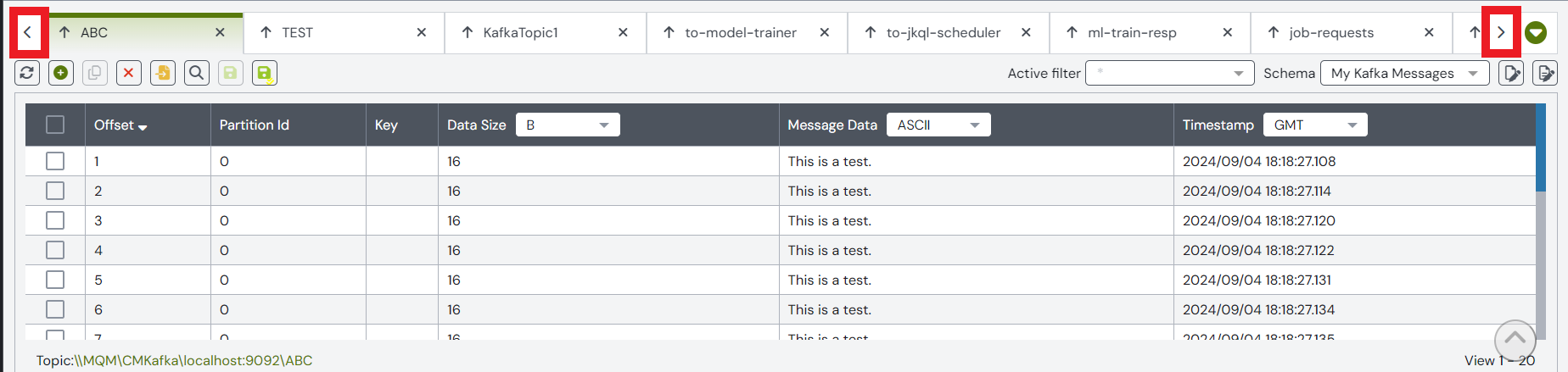

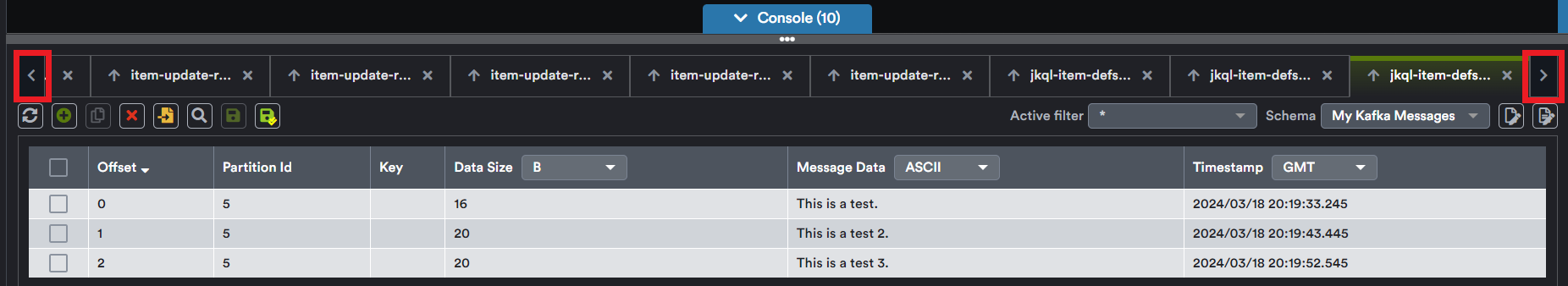

When multiple tabs are displayed within the Console panel, use the left and right navigation buttons (marked by red boxes below) to easily scroll through the viewlet tabs.
Version 11.2 light theme
Version 11.1
Console panel viewlets are temporary and only exist for the current session (they will not appear the next time you log in).
