There are several options located at the top right of your screen. Use the figures and legend below as a reference as to what these options do.
Version 11.2
In version 11.2, many of the options that were on the top right of the screen in earlier versions have moved to the left side toolbar. See Main menu options (v11.2) for more information. Your toolbar may also include a Modify button. Refer to M (Modify) in the legend below for more information.
Version 11.1 and earlier

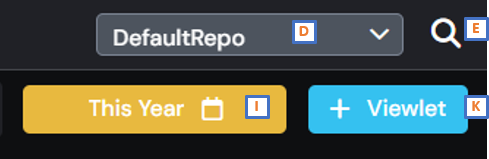

Legend
A - C: This drop-down menu contains your repository quota limits. These are data limits which are determined by your license. See Repositories for more information. There are limits for:
A: Data Points
B: Stream Messages Per Day
C: Stream Bytes Per Day
D: The Repository drop-down menu. Select a repository to load its data.
E: Search for event data within the selected repository.
F: The user account that is currently logged in.
G: The question mark button launches the Tracking page in the meshIQ Platform Resource Center.
H: Click the Logout button to exit the system. Before exiting, a dialog appears asking if you would like to save or discard any updates made.
I: Sets the default date and time range for the currently displayed dashboard. See Set default date & time for dashboards for more information.
J: The Main Menu
K: Click this button to import data
L: Click this button to add a new viewlet to the dashboard currently displayed.
M: Filter viewlets by clicking the Modify button. This button is available only when a dashboard contains variables.
Repositories with End-user Monitoring enabled will have the EUM button displayed on the main toolbar:
