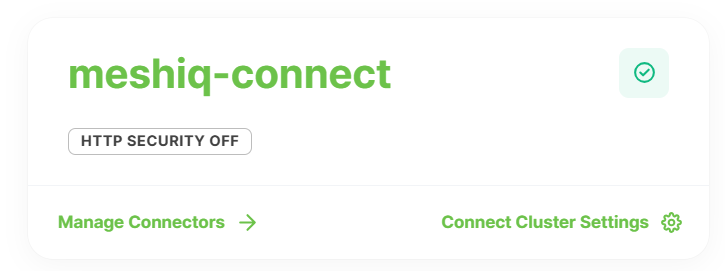

You can access the Connector Management screen by pressing the Manage Connectors button at the bottom of the cluster you want to manage.
Add connector
You can add a new connector by selecting the Add Connector button at the top right of the connector management screen. In the first step, select the connector you want to add from the list of registered connector plug-ins by clicking the Add button next to it.

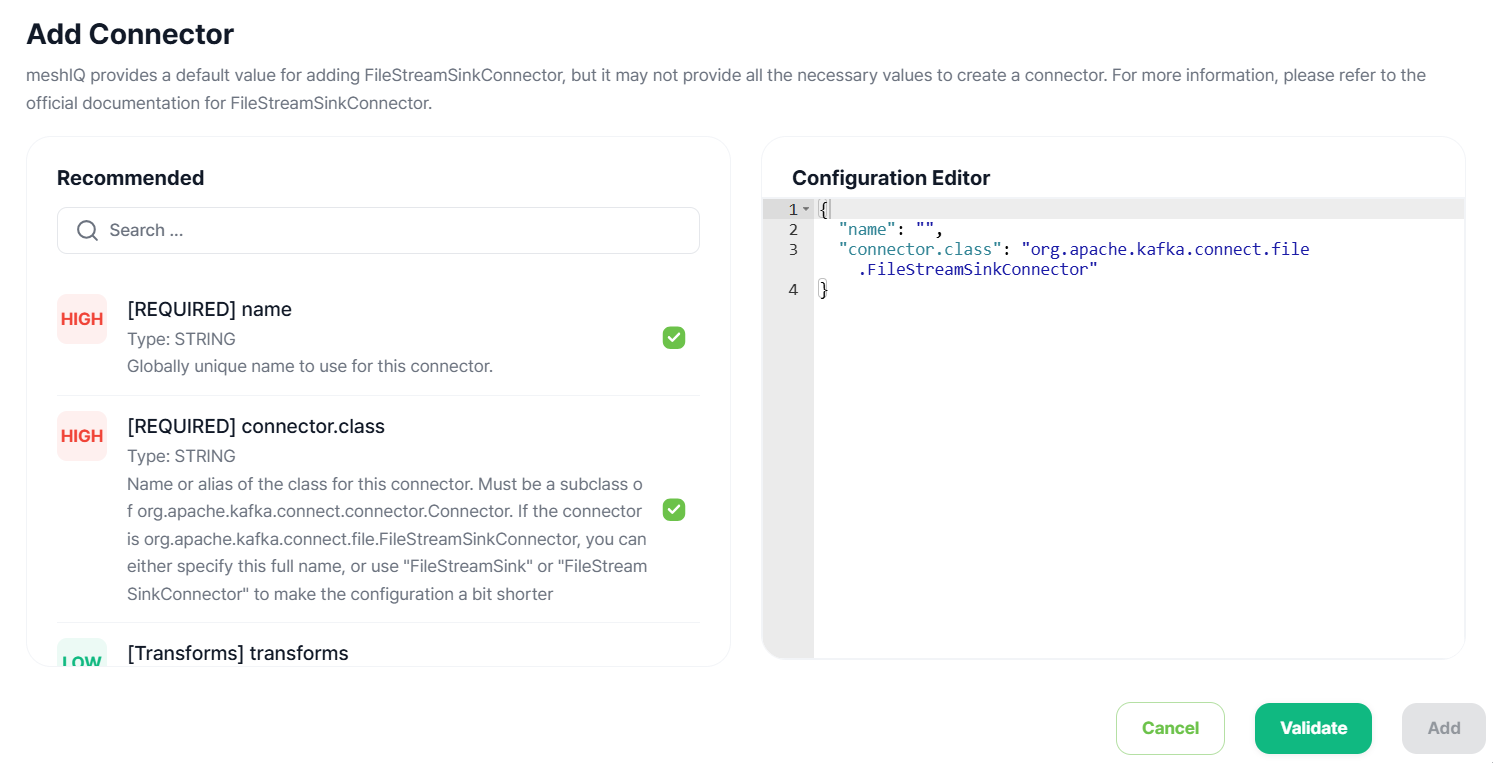

You can configure settings for added connectors in the Add Connector dialog.
- Properties. Setting properties provided by the selected connector. The level of importance, attribute group, and description are displayed. To automatically add elements to the Configuration Editor window on the right, select the checkbox for the item on the left.
- Configuration. Connector settings in JSON format. Appropriate values must be set for added items.
Once you complete all settings, click Validate. If validation is successful, you can click Add to add a new connector.
Change connector Status (state)

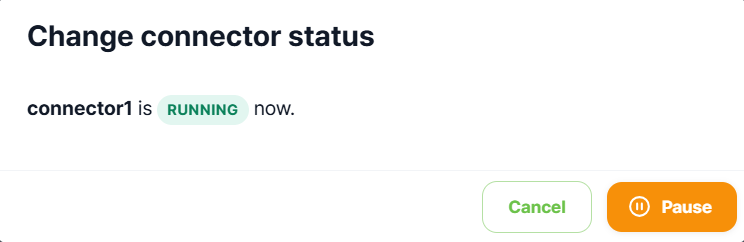

If you want to change the status of a registered connector, you can change the operating status of the connector by clicking the Change Status icon to the right of the connector in the list.
Modify connector settings

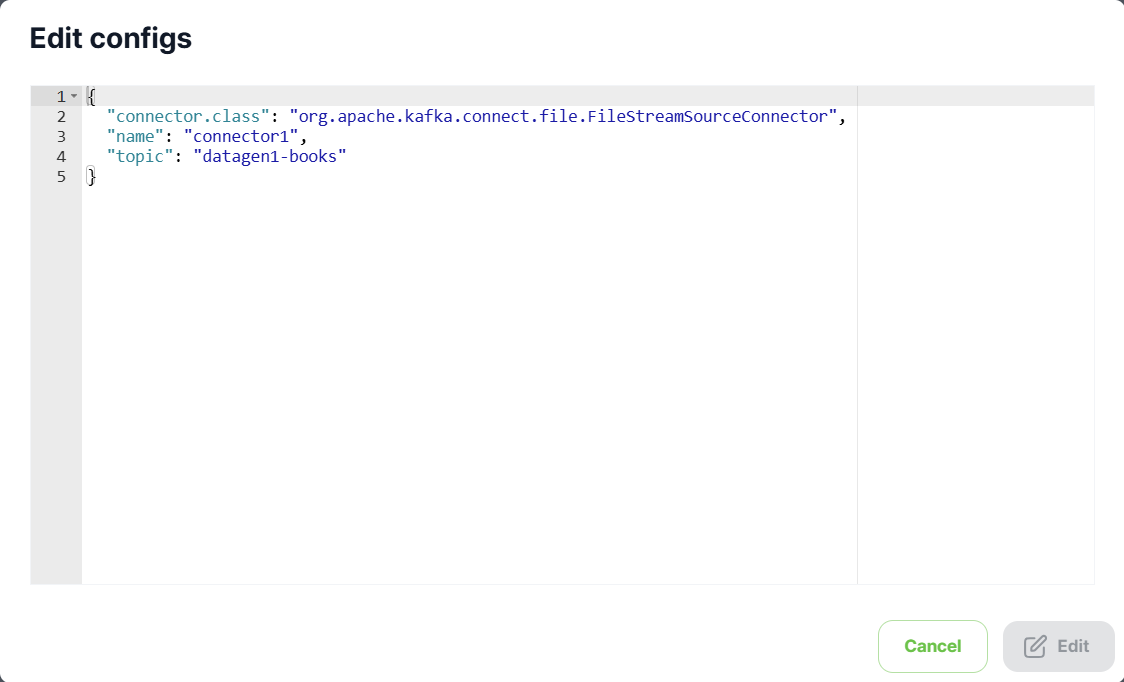

If you want to change the settings of a registered connector, you can change the connector settings by clicking the edit icon to the right of the connector in the list.
Delete connector

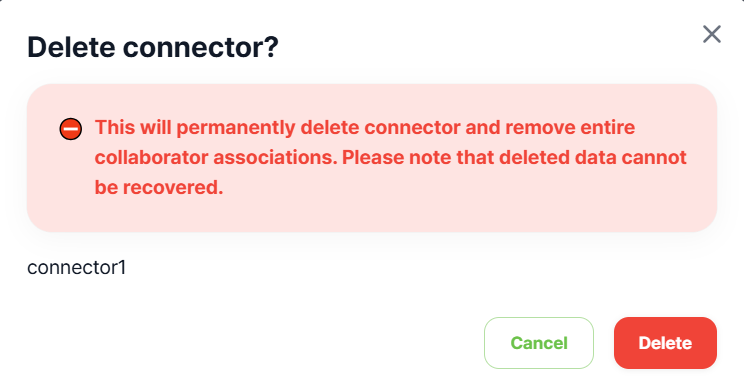

If you want to delete a registered connector, you can do so by clicking the delete icon to the right of the connector in the list. Read the warning carefully. To continue with the delete action, click Delete.
Connector details
You can view detailed information for a connector by selecting it from the connector list.
- TASK ID. The connector's task ID. One connector can create multiple tasks.
- STATE. task status.
- WORKER ID. Worker node on which the task is running.
Restart/Reset the connector task

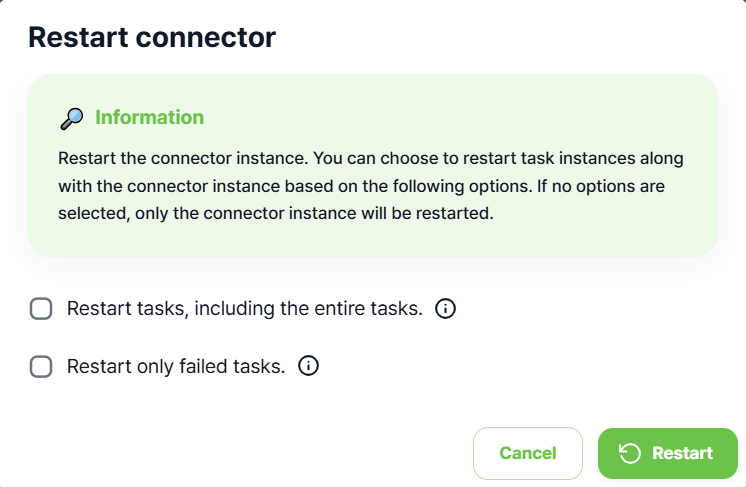

You can restart the task on the connector details screen with the Restart button shown to the right of the task in the list. The Restart connector dialog opens. Choose which tasks you want to restart. Then click the Restart button on the dialog.
